Simpson Hangers | SKU:
HHUS210-2

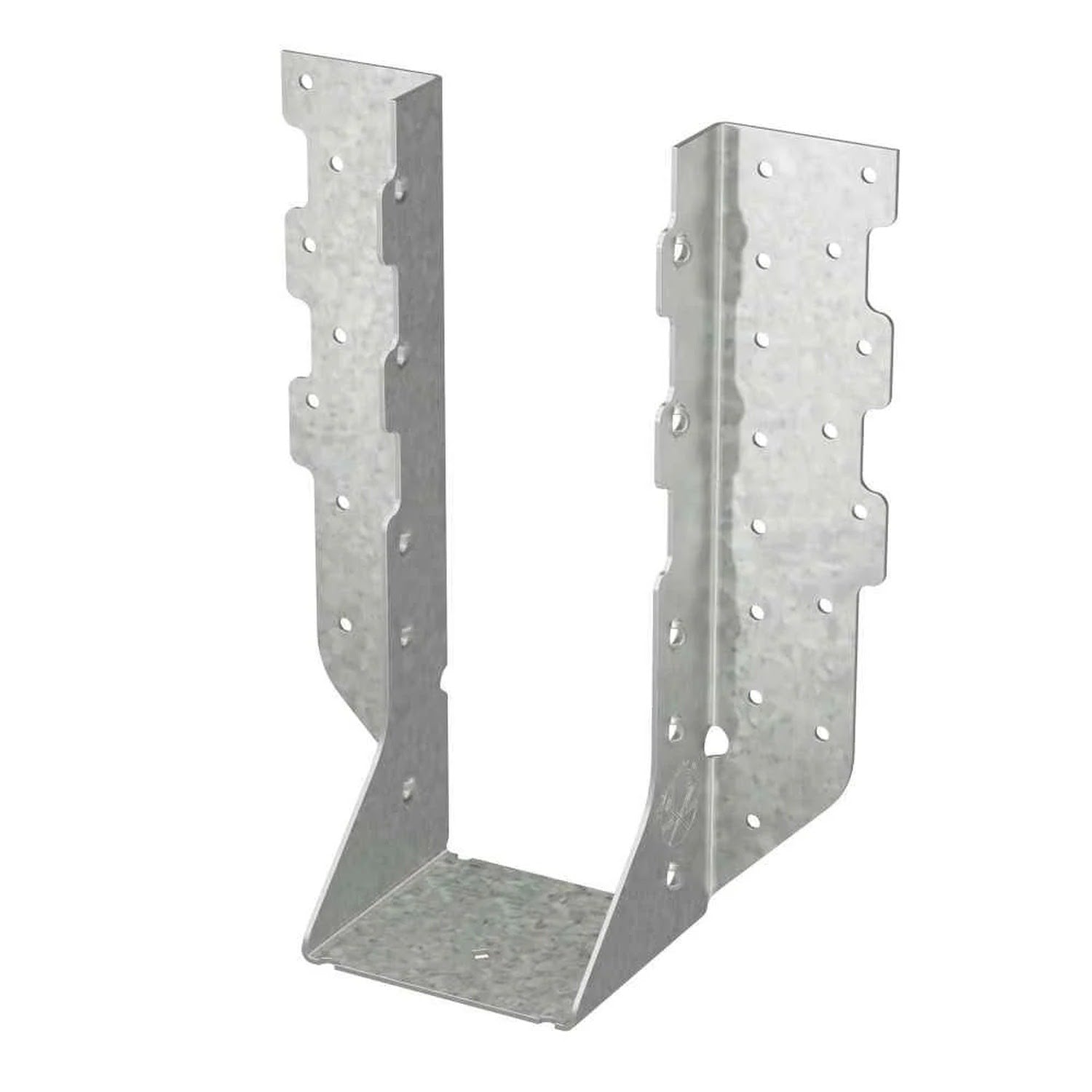

Simpson Strong-Tie HHUS210-2 (2" x 10") Double Face Mount Hanger G90 Galvanized
$9.62
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HHUS210-2 Description
The Simpson Strong-Tie HHUS210-2 is a heavy-duty double 2x10 face mount hanger made from G90 galvanized steel, designed for high load capacity and durability in structural applications.
Simpson Strong-Tie HHUS210-2 Includes
- (1) Double 2x10 Face Mount Hanger
Simpson Strong-Tie HHUS210-2 Features
- G90 Galvanized Coating for corrosion resistance
- Extra-heavy load capacity for substantial structural loads
- Double-shear nailing for increased connection strength
- Versatile installation for new construction and retrofits
Simpson Strong-Tie HHUS210-2 Applications
- Framing and structural support for floor and ceiling joists
- Deck construction for attaching deck joists to beams
- Post and beam connections for horizontal to vertical member fastening
- Plated trusses for efficient and reliable connections
Simpson Strong-Tie HHUS210-2 Installation Overview
- Use manufacturer-recommended nails for optimal performance
- Drive joist nails at an angle through the joist or truss into the header
- Ensure compatibility with solid sawn lumber and plated truss applications
- Not suitable for I-joists or welded applications
- Verify compliance with industry standards for structural connections
Simpson Strong-Tie HHUS210-2 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Joist size | Double 2" X 10" |
| Height | 8-7/8" |
| Width | 3-5/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
