Simpson Hangers | SKU:
HHUS210-4

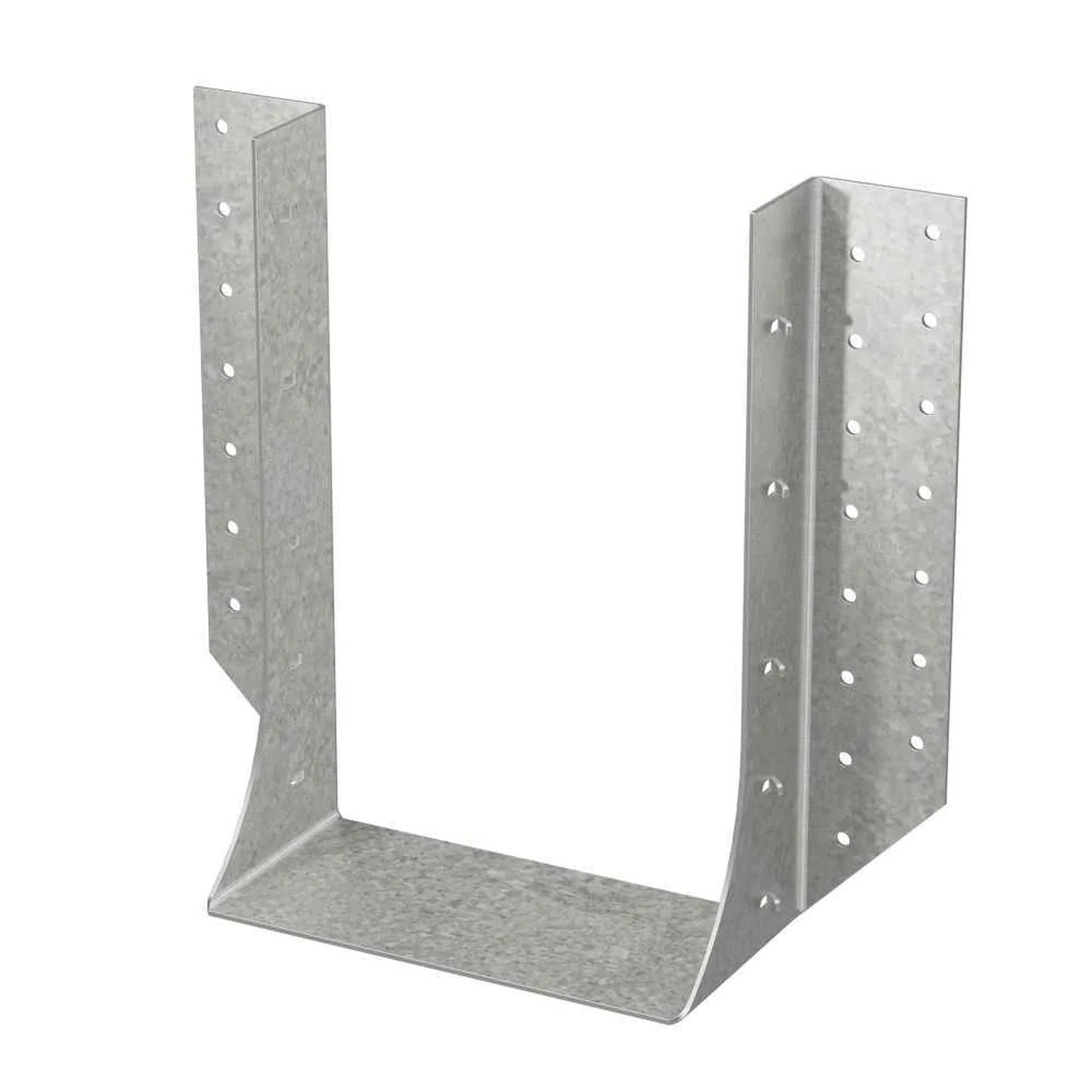

Simpson Strong-Tie HHUS210-4 (2" x 10") Quadruple Face Mount Hanger - G90 Galvanized
$60.40
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HHUS210-4 Description
The Simpson Strong-Tie HHUS210-4 is a heavy-duty quadruple 2x10 face mount hanger designed for high load capacity and durability, featuring G90 galvanized steel for corrosion resistance.
Simpson Strong-Tie HHUS210-4 Includes
- (1) Quadruple 2x10 Face Mount Hanger - G90 Galvanized
Simpson Strong-Tie HHUS210-4 Features
- G90 Galvanized Coating for corrosion resistance
- Extra-heavy load capacity for substantial structural loads
- Double-shear nailing design for increased connection strength
- Versatile installation for new construction and retrofits
Simpson Strong-Tie HHUS210-4 Applications
- Framing & Structural Support: Provides secure connections for floor and ceiling joists in residential and commercial buildings.
- Deck Construction: Ideal for attaching deck joists to beams in outdoor applications.
- Post & Beam Connections: Ensures reliable fastening of horizontal members to vertical supports.
- Plated Trusses: Designed to connect plated trusses efficiently while maintaining structural integrity.
Simpson Strong-Tie HHUS210-4 Installation Overview
- Use manufacturer-recommended nails for optimal performance.
- Joist nails should be driven at an angle through the joist or truss into the header.
- Suitable for solid sawn lumber and plated truss applications.
- Not intended for use with I-joists or welded applications.
- Meets industry standards for strength and reliability in structural connections.
Simpson Strong-Tie HHUS210-4 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Joist size | Quad 2" X 10" |
| Height | 8-7/8" |
| Width | 6-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
