Simpson Hangers | SKU:
HHUS26-2Z

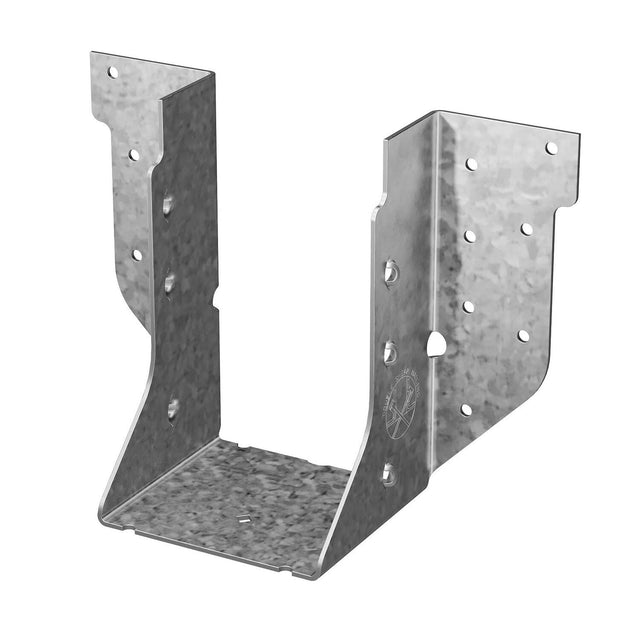

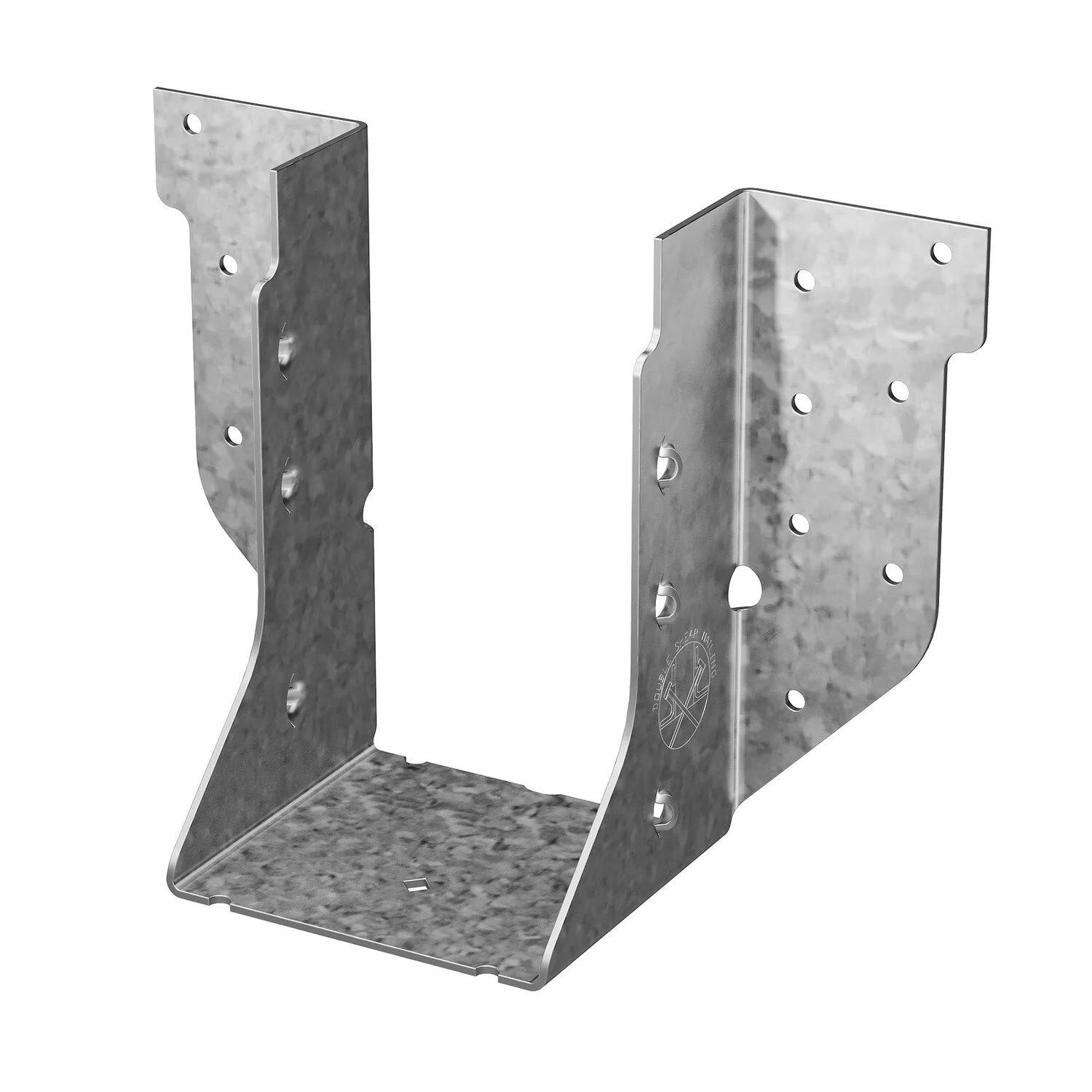

Simpson Strong-Tie HHUS26-2Z Double 2x6 Face Mount Hanger - ZMAX Finish
$13.56
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HHUS26-2Z Description
The Simpson Strong-Tie HHUS26-2Z is a heavy-duty double 2x6 face mount hanger with a ZMAX galvanized finish, designed for superior corrosion resistance and high load capacity.
Simpson Strong-Tie HHUS26-2Z Includes
- (1) Double 2x6 Face Mount Hanger
Simpson Strong-Tie HHUS26-2Z Features
- ZMAX Galvanized Coating for enhanced corrosion resistance
- Extra-heavy load capacity for demanding applications
- Double-shear nailing for increased connection strength
- Versatile installation for easier framing and retrofits
Simpson Strong-Tie HHUS26-2Z Applications
- Deck Construction: Ideal for attaching deck joists to beams in outdoor environments with high moisture exposure.
- Framing & Structural Support: Provides secure connections for floor and ceiling joists in residential and commercial buildings.
- Post & Beam Connections: Ensures reliable fastening of horizontal members to vertical supports.
- Plated Trusses: Designed for connecting plated trusses in demanding applications.
Simpson Strong-Tie HHUS26-2Z Installation Overview
- Use manufacturer-recommended hot-dip galvanized nails or screws.
- Drive joist nails at an angle through the joist or truss into the header.
- Ensure compatibility with solid sawn lumber and plated trusses.
- Not intended for I-joists or welded applications.
Simpson Strong-Tie HHUS26-2Z Specifications
| Finish | ZMAX |
| Height | 5-3/8" |
| Joist size | Double 2X6 |
| Thickness | 14 Gauge |
| Width | 3-5/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
