Simpson Hangers | SKU:
HHUS28-2

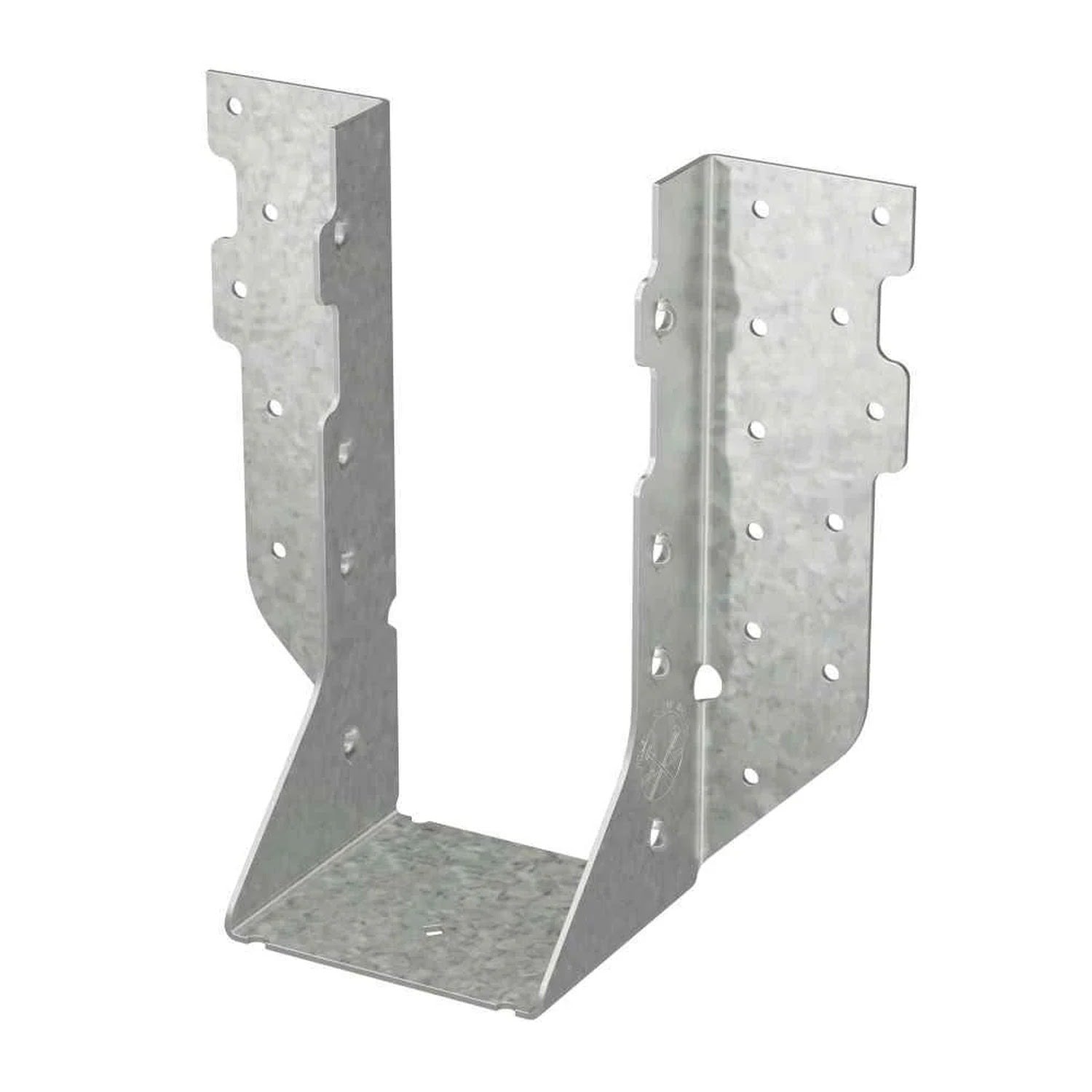

Simpson Strong-Tie HHUS28-2 (7-1/4 in.) Double 2x8 Face Mount Hanger - G90 Galvanized
$9.65
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HHUS28-2 Description
The Simpson Strong-Tie HHUS28-2 is a heavy-duty face mount hanger designed for double 2x8 joists, featuring G90 galvanized steel for enhanced corrosion resistance and a double-shear nailing design for increased strength.
Simpson Strong-Tie HHUS28-2 Includes
- (1) Double 2x8 Face Mount Hanger
Simpson Strong-Tie HHUS28-2 Features
- G90 Galvanized Coating for corrosion resistance
- Extra-heavy load capacity for substantial structural loads
- Double-shear nailing design for increased connection strength
- Versatile installation for new construction and retrofits
Simpson Strong-Tie HHUS28-2 Applications
- Framing & Structural Support: Provides secure connections for floor and ceiling joists in residential and commercial buildings.
- Deck Construction: Ideal for attaching deck joists to beams in outdoor applications.
- Post & Beam Connections: Ensures reliable fastening of horizontal members to vertical supports.
- Plated Trusses: Designed to connect plated trusses efficiently while maintaining structural integrity.
Simpson Strong-Tie HHUS28-2 Installation Overview
- Use manufacturer-recommended nails for optimal performance.
- Joist nails should be driven at an angle through the joist or truss into the header.
- Ensure compatibility with solid sawn lumber and plated truss applications.
- Not intended for use with I-joists or welded applications.
- Verify compliance with industry standards for strength and reliability.
Simpson Strong-Tie HHUS28-2 Specifications
| Finish | G90 Galvanized |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 7-1/4" |
| Joist size | Double 2" X 8" |
| Manufacturer name | Simpson Strong-Tie |
| Width | 3-5/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
