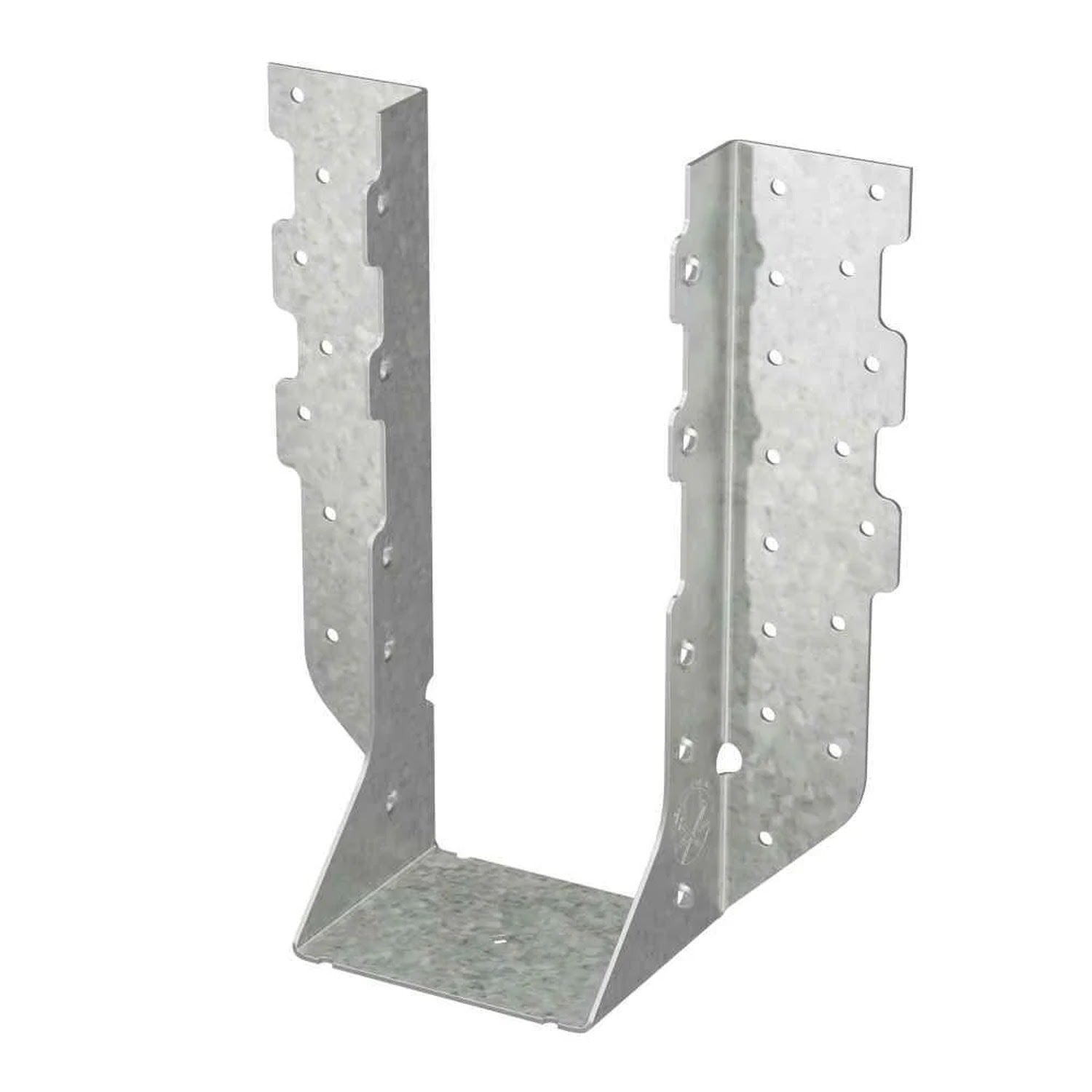

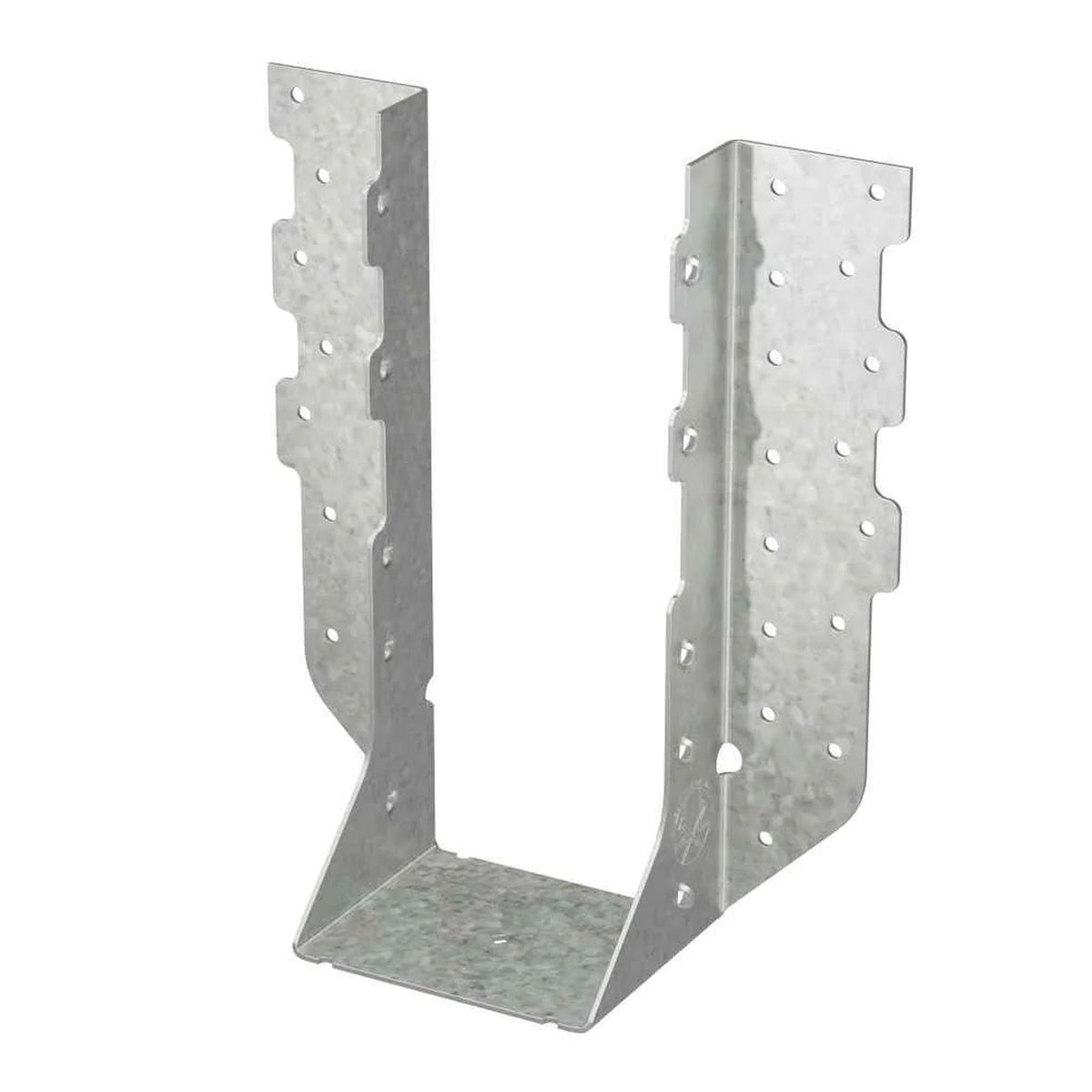

Simpson Strong-Tie HHUS410 (4" x 10") Face Mount Hanger - G90 Galvanized
$12.03
$17.30
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HHUS410 Description
The Simpson HHUS410 4x10 Face Mount Hanger is designed for heavy-duty structural applications, featuring G90 galvanized steel for enhanced corrosion resistance and a double-shear nailing design for increased strength.
Simpson HHUS410 Includes
- (1) 4x10 Face Mount Hanger
Simpson HHUS410 Features
- G90 Galvanized Coating for corrosion resistance
- Extra-heavy load capacity for substantial structural loads
- Double-shear nailing design for efficient load transfer
- Versatile installation for new construction and retrofits
Simpson HHUS410 Applications
- Framing & Structural Support: Secure connections for floor and ceiling joists
- Deck Construction: Attaching deck joists to beams
- Post & Beam Connections: Fastening horizontal members to vertical supports
- Plated Trusses: Efficiently connecting plated trusses
Simpson HHUS410 Installation Overview
- Use manufacturer-recommended nails for optimal performance
- Drive joist nails at an angle through the joist or truss into the header
- Ensure compatibility with solid sawn lumber and plated truss applications
- Verify compliance with industry standards for structural connections
Simpson HHUS410 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Joist size | 4" X 10" |
| Height | 9" |
| Width | 3-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
