Simpson Hangers | SKU:
HHUS410Z

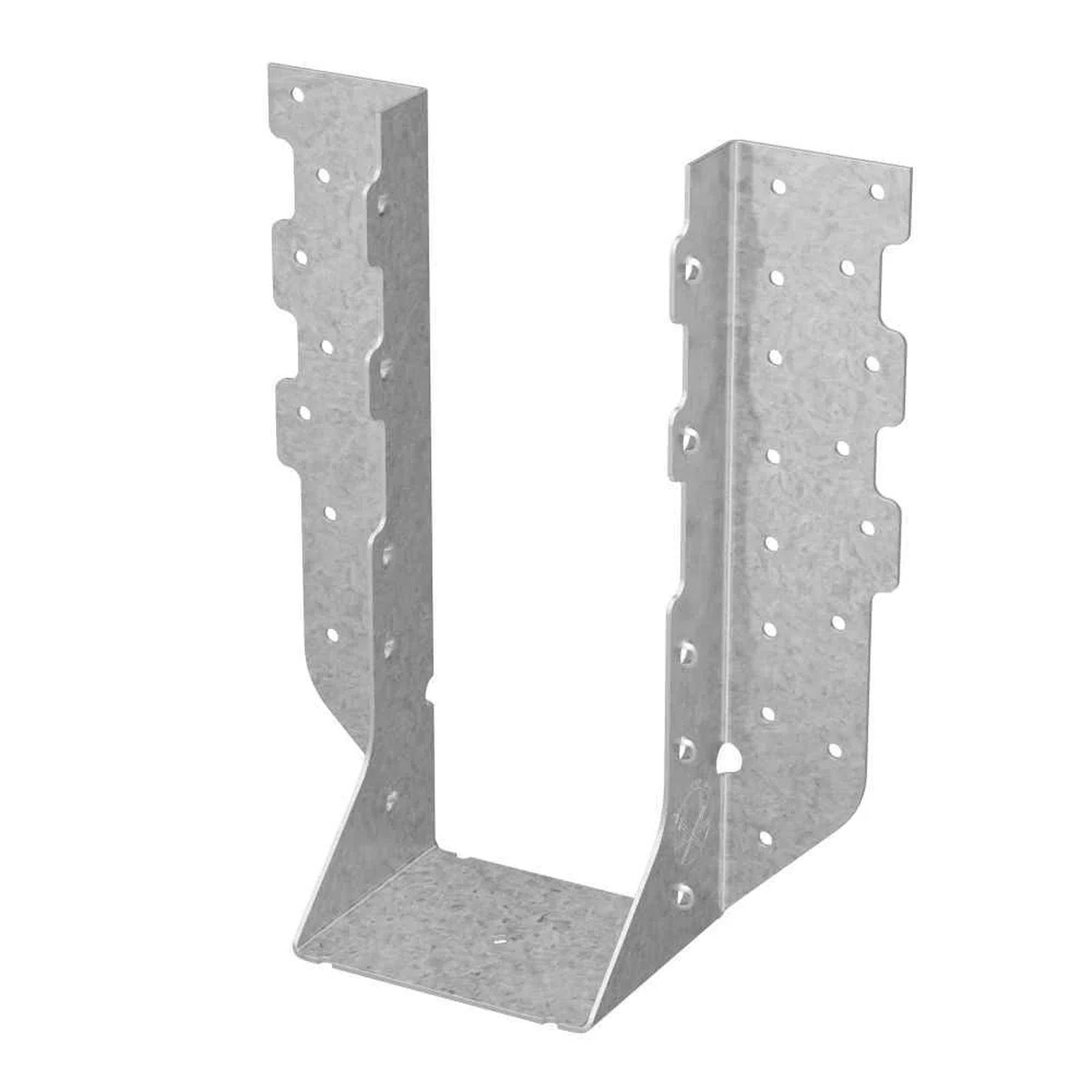

Simpson Strong-Tie HHUS410Z (4" x 10") Face Mount Hanger- ZMAX Finish
$16.32
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HHUS410Z Description
The Simpson HHUS410Z 4x10 Face Mount Hanger features a ZMAX galvanized coating for enhanced corrosion resistance, making it ideal for pressure-treated wood and outdoor applications.
Simpson Strong-Tie HHUS410Z Includes
- (1) 4x10 Face Mount Hanger
Simpson Strong-Tie HHUS410Z Features
- ZMAX Galvanized Coating for enhanced corrosion resistance
- Extra-heavy load capacity for substantial structural support
- Double-shear nailing for increased connection strength
- Versatile installation for easier framing and retrofit applications
Simpson Strong-Tie HHUS410Z Applications
- Deck Construction: Ideal for attaching deck joists to beams in outdoor environments with high moisture exposure.
- Framing & Structural Support: Provides secure connections for floor and ceiling joists in residential and commercial buildings.
- Post & Beam Connections: Ensures reliable fastening of horizontal members to vertical supports.
- Plated Trusses: Designed for connecting plated trusses in demanding applications.
Simpson Strong-Tie HHUS410Z Installation Overview
- Use manufacturer-recommended hot-dip galvanized nails or screws to maintain corrosion resistance.
- Joist nails should be driven at an angle through the joist or truss into the header for maximum load performance.
- Designed for use with solid sawn lumber and plated trusses.
- Not intended for I-joists or welded applications.
- Meets industry standards for strength and durability in high-exposure environments.
Simpson Strong-Tie HHUS410Z Specifications
| Finish | ZMAX |
| For Treated Lumber | Yes |
| Joist size | 4" X 10" |
| Height | 9" |
| Width | 3-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
