Simpson Hangers | SKU:
HHUS48

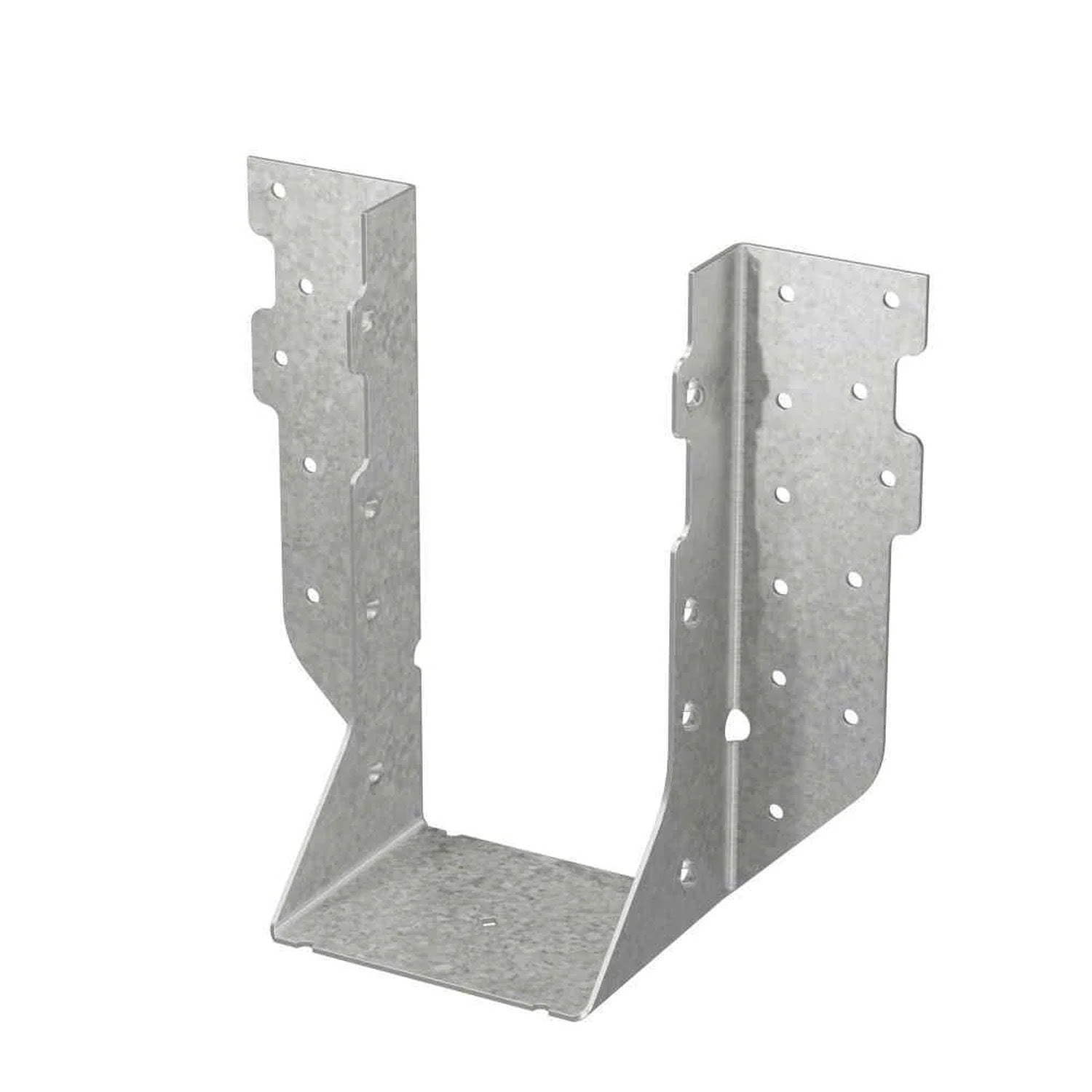

Simpson Strong-Tie HHUS48 (4" x 8") Face Mount Hanger - G90 Galvanized
$11.71
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HHUS48 Description
The Simpson Strong-Tie HHUS48 is a heavy-duty face mount hanger designed for 4x8 joists, featuring G90 galvanized steel for enhanced corrosion resistance and double-shear nailing for increased strength.
Simpson Strong-Tie HHUS48 Includes
- (1) 4x8 Face Mount Hanger
Simpson Strong-Tie HHUS48 Features
- G90 Galvanized Coating for corrosion resistance
- Extra-heavy load capacity for structural support
- Double-shear nailing for efficient load transfer
- Versatile installation for new construction and retrofits
Simpson Strong-Tie HHUS48 Applications
- Framing & Structural Support: Secure connections for floor and ceiling joists
- Deck Construction: Attaching deck joists to beams
- Post & Beam Connections: Fastening horizontal members to vertical supports
- Plated Trusses: Efficiently connecting plated trusses
Simpson Strong-Tie HHUS48 Installation Overview
- Use manufacturer-recommended nails for optimal performance
- Drive joist nails at an angle through the joist or truss into the header
- Ensure compatibility with solid sawn lumber and plated truss applications
- Verify code compliance for structural connections
Simpson Strong-Tie HHUS48 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Joist size | 4" X 8" |
| Height | 7-1/8" |
| Width | 3-5/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
