Simpson Hangers | SKU:
HHUS7.25/10

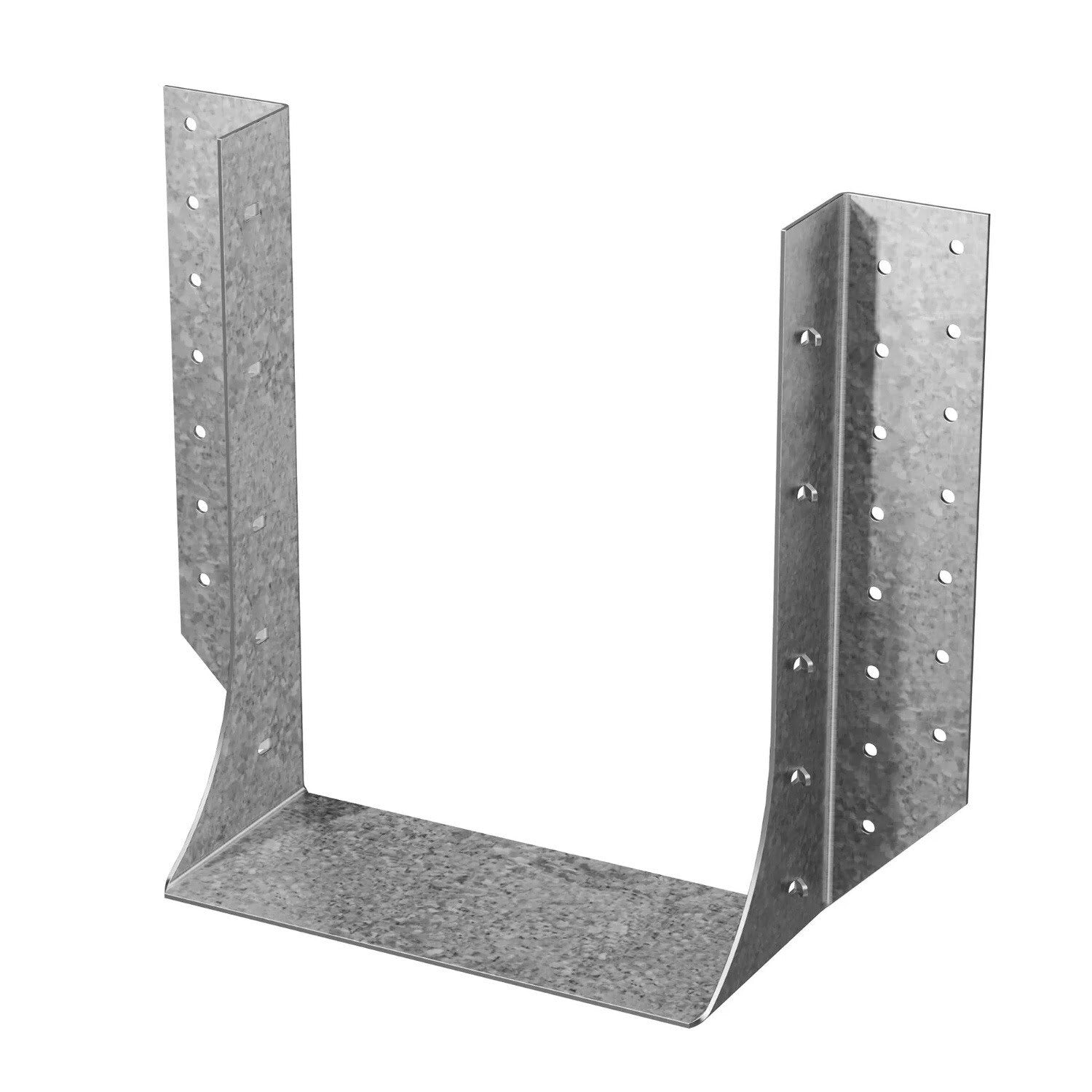

Simpson Strong-Tie HHUS7.25/10 (7 in. x 9-1/2 in.) Face-Mount Joist Hanger for Engineered Wood
$69.31
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HHUS7.25/10 Description
The Simpson Strong-Tie HHUS7.25/10 Face Mount I-Joist Hanger is designed for heavy-duty applications, offering high load capacity and superior durability. Made from G90 galvanized steel, it provides enhanced corrosion resistance for both interior and exterior use.
Simpson Strong-Tie HHUS7.25/10 Includes
- (1) Face Mount I-Joist Hanger
Simpson Strong-Tie HHUS7.25/10 Features
- G90 Galvanized Coating for corrosion resistance
- Extra-heavy load capacity for structural support
- Double-shear nailing design for increased connection strength
- Versatile installation for new construction and retrofits
Simpson Strong-Tie HHUS7.25/10 Applications
- Framing & Structural Support: Secure connections for floor and ceiling joists in residential and commercial buildings.
- Deck Construction: Attaching deck joists to beams in outdoor applications.
- Post & Beam Connections: Reliable fastening of horizontal members to vertical supports.
- Plated Trusses: Efficiently connecting plated trusses while maintaining structural integrity.

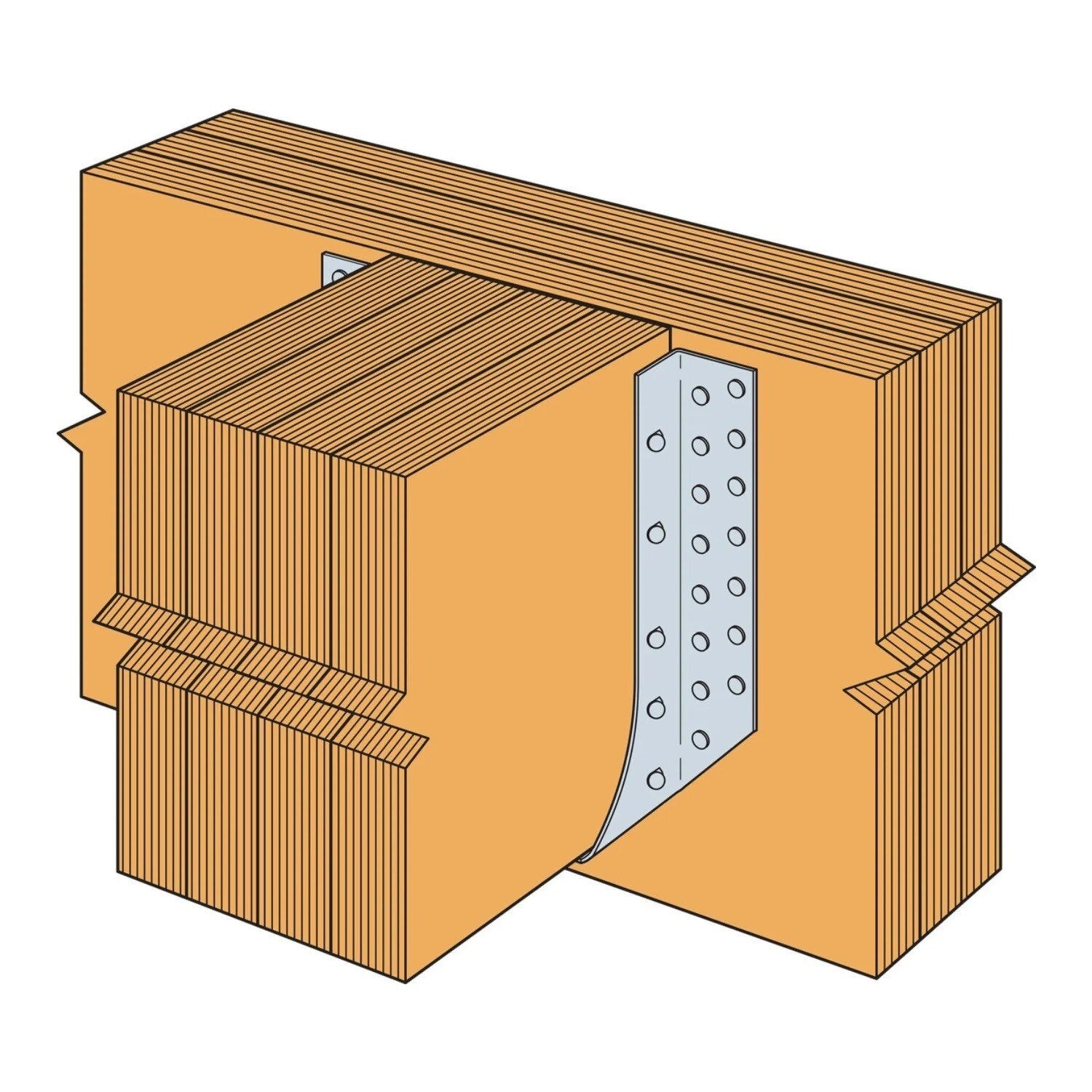

Simpson Strong-Tie HHUS7.25/10 Installation Overview
- Use manufacturer-recommended nails for optimal performance.
- Drive joist nails at an angle through the joist or truss into the header.
- Ensure compatibility with solid sawn lumber and plated truss applications.
- Verify code compliance for strength and reliability in structural connections.
Simpson Strong-Tie HHUS7.25/10 Specifications
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 9" |
| Joist size | 7-1/4" X 9-1/4" |
| Manufacturer name | Simpson Strong-Tie |
| Width | 7-1/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
