Simpson Hangers | SKU:
HIT320

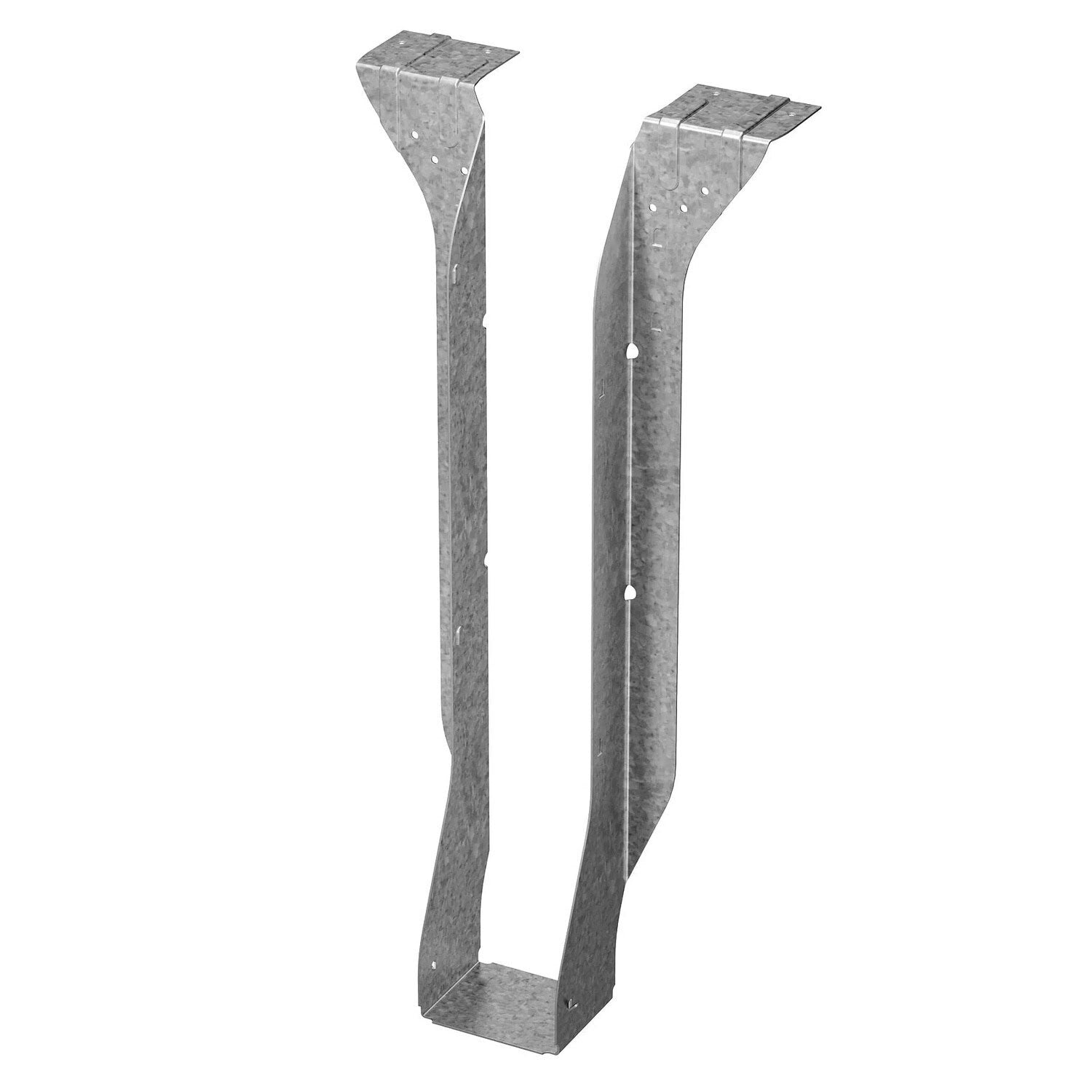

Simpson Strong-Tie HIT320 (2-1/2" x 20") Heavy I-Joist Top-Flange Hanger - G90 Galvanized
$28.23
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HIT320 Description
The Simpson Strong-Tie HIT Heavy I-Joist Top-Flange Hanger is designed for solid, code-compliant support in engineered wood construction, offering increased load capacity and dependable bearing.
Simpson Strong-Tie HIT320 Includes
- (1) Top Flange I-Joist Hanger
Simpson Strong-Tie HIT320 Features
- Heavy-gauge steel construction for durability
- Top-flange design for straightforward installation
- Optimally placed nail holes to reduce splitting
- Engineered for code-compliant load capacity
- Suitable for wood or composite beams
Simpson Strong-Tie HIT320 Applications
- Multi-Family Construction: Provides high-capacity joist support for apartments and condominiums.
- Light Commercial Projects: Ideal for engineered wood framing with code-compliant load capacity.
- Custom Homes: Ensures secure connections in homes with open floor plans and long spans.
- Mezzanines and Platform Framing: Offers structural stability in industrial environments using I-joist framing.

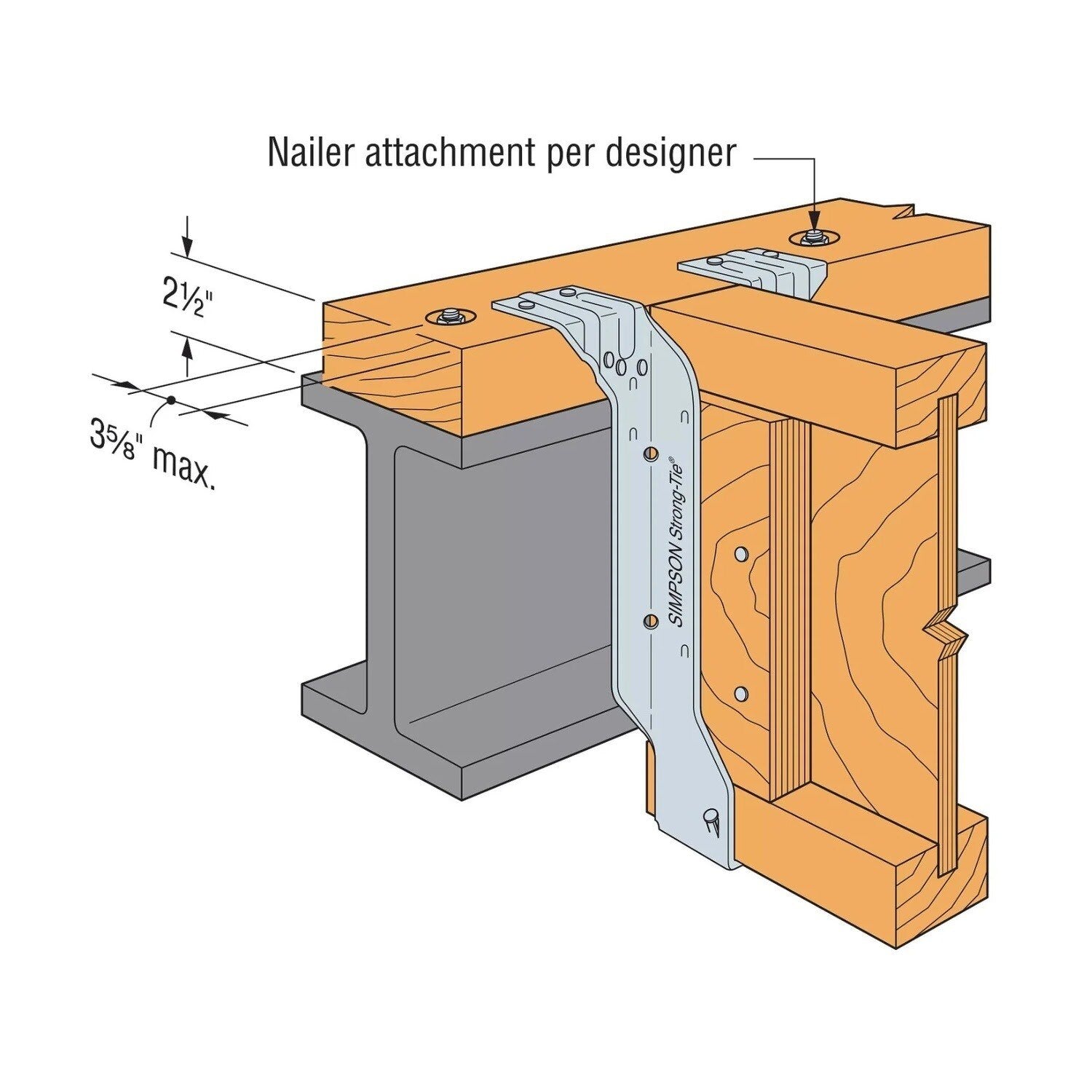

Simpson Strong-Tie HIT320 Installation Overview
- Install with Simpson Strong-Tie nails or screws as specified.
- Ensure all specified holes are used for full load capacity.
- Verify joist end bears fully in the hanger seat before fastening.
- Support the top-flange fully on the header material.
- Not suitable for skewed or sloped joists.

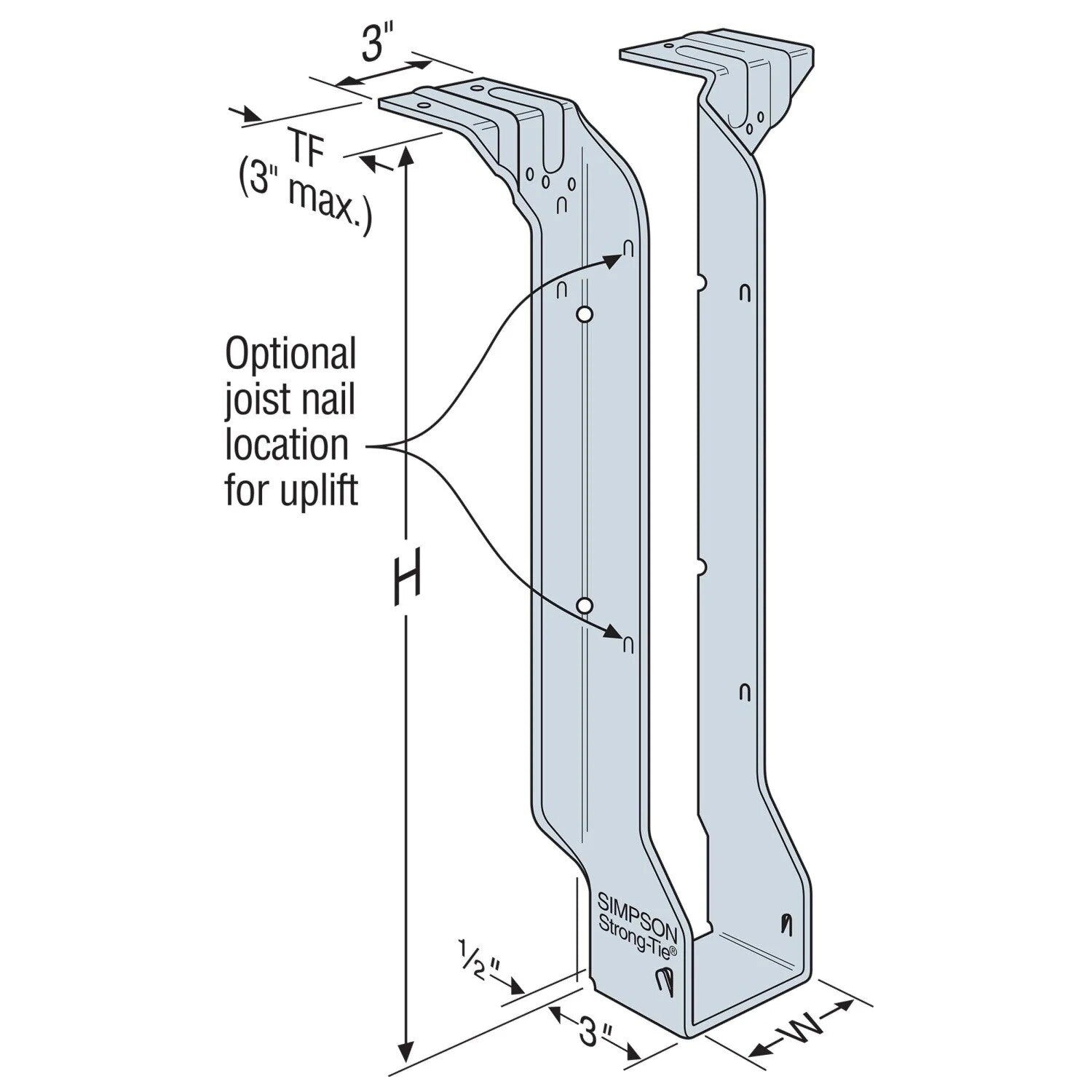

Simpson Strong-Tie HIT320 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Top - (4) 0.162" x 3-1/2" Nails, Face - (6) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
| Height | 20" |
| Joist size | 2-1/2" X 20" |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 2-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
