Simpson Hangers | SKU:
HIT324

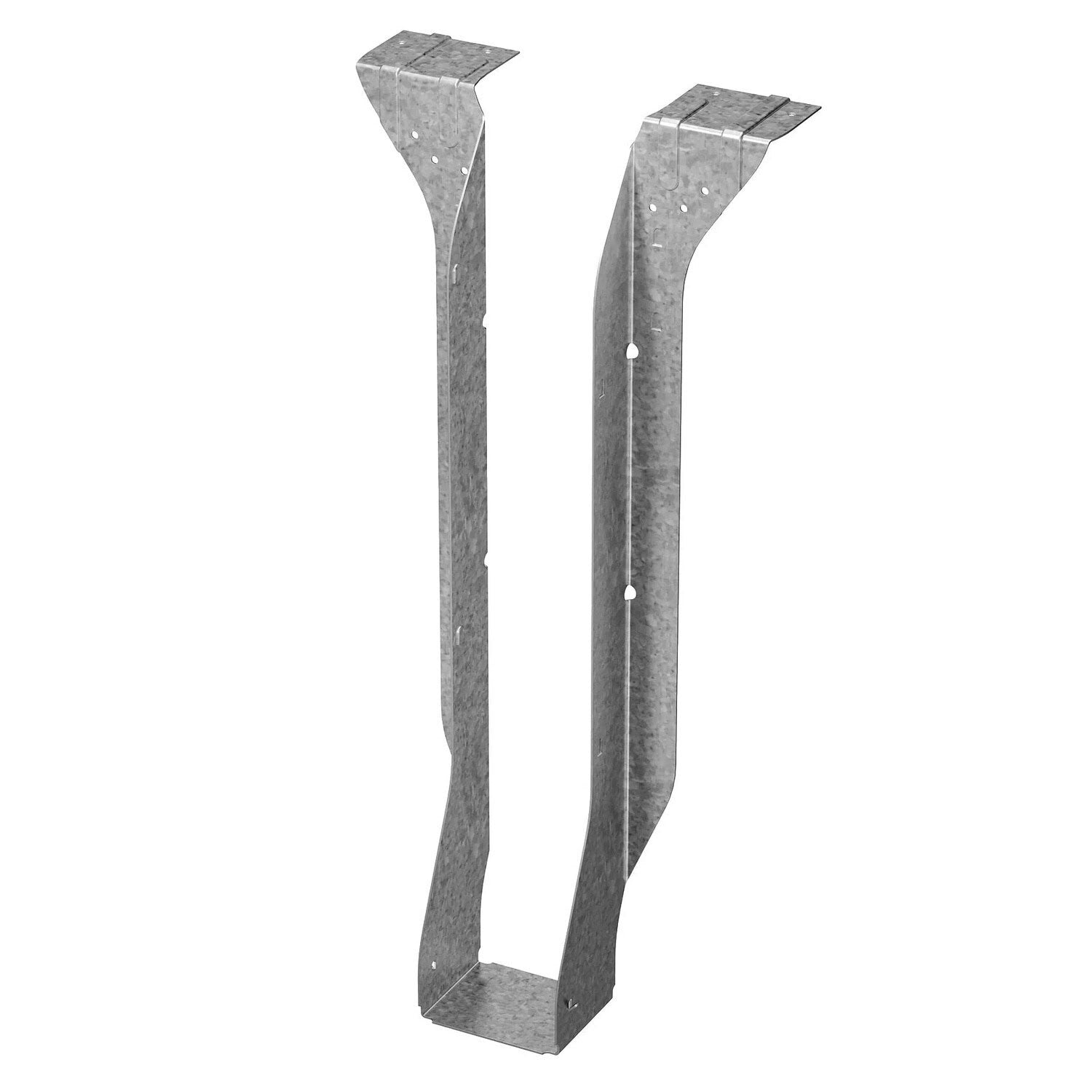

Simpson Strong-Tie HIT324 (2-1/2" x 24") Heavy I-Joist Top-Flange Hanger - G90 Galvanized
$36.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HIT324 Description
The Simpson Strong-Tie HIT Heavy I-Joist Top-Flange Hanger is built to deliver solid, code-compliant support for engineered wood construction. Designed specifically for I-joists, the HIT series offers increased load capacity and dependable bearing for demanding framing applications.
Simpson Strong-Tie HIT324 Includes
- (1) Top Flange I-Joist Hanger
Simpson Strong-Tie HIT324 Features
- Heavy-duty steel construction for durability
- Top-flange design for straightforward installation
- Optimally placed nail holes to reduce splitting
- Engineered for code-compliant load capacity
- Designed for I-joists in engineered wood construction
Simpson Strong-Tie HIT324 Applications
- Multi-Family Construction: Offers safe, high-capacity joist support for apartments and condominiums.
- Light Commercial Projects: Ideal for projects requiring engineered wood framing with code-compliant load capacity.
- Custom Homes: Delivers secure connections in homes with open floor plans and long spans.
- Mezzanines and Platform Framing: Ensures structural stability in warehouse and industrial environments using I-joist framing.

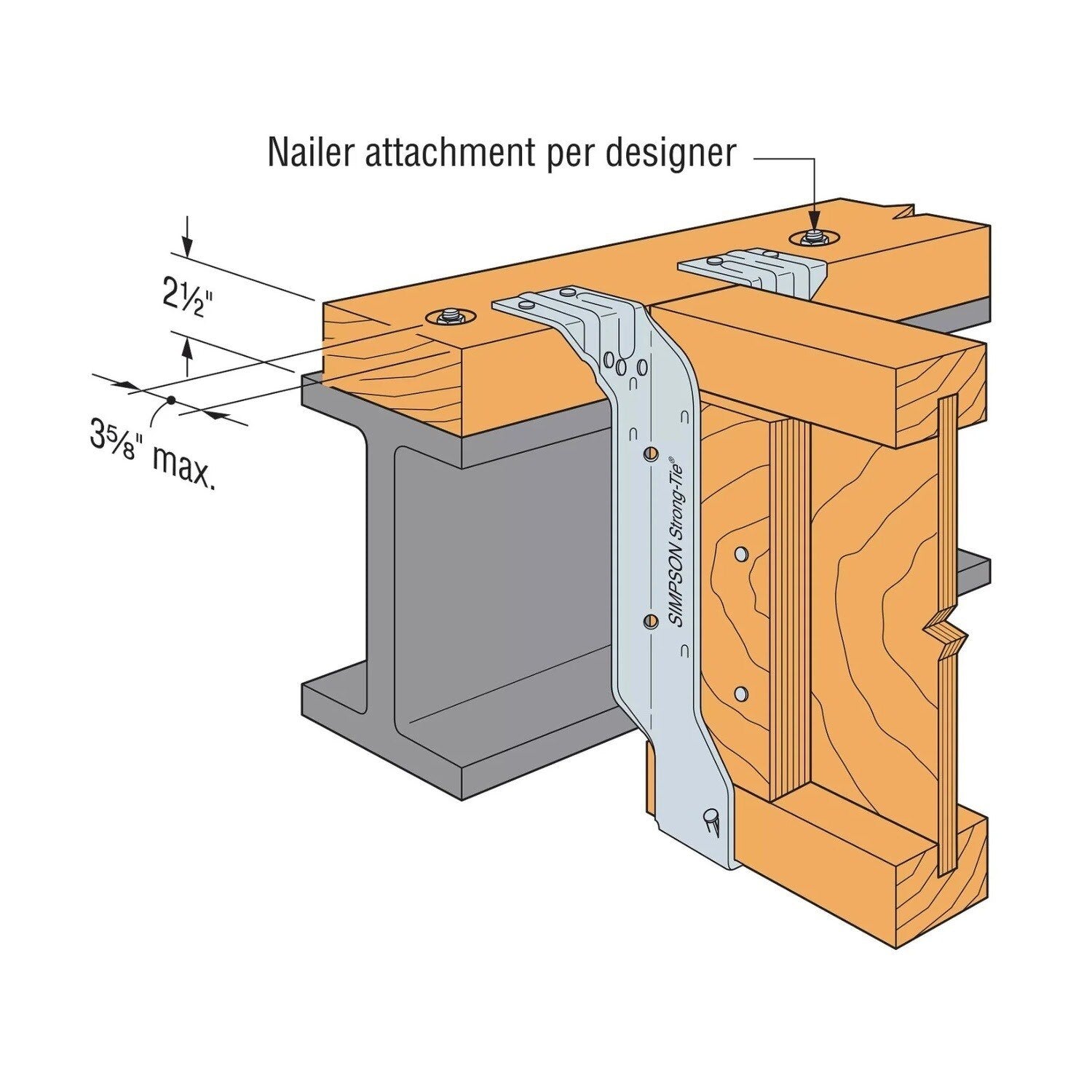

Simpson Strong-Tie HIT324 Installation Overview
- Install with Simpson Strong-Tie nails or screws, as specified by the manufacturer.
- Fastener placement is critical—use all specified holes to achieve full load capacity.
- Ensure joist end bears fully in the hanger seat before fastening.
- Top-flange must be fully supported on the header material.
- Not designed for skewed or sloped joists.

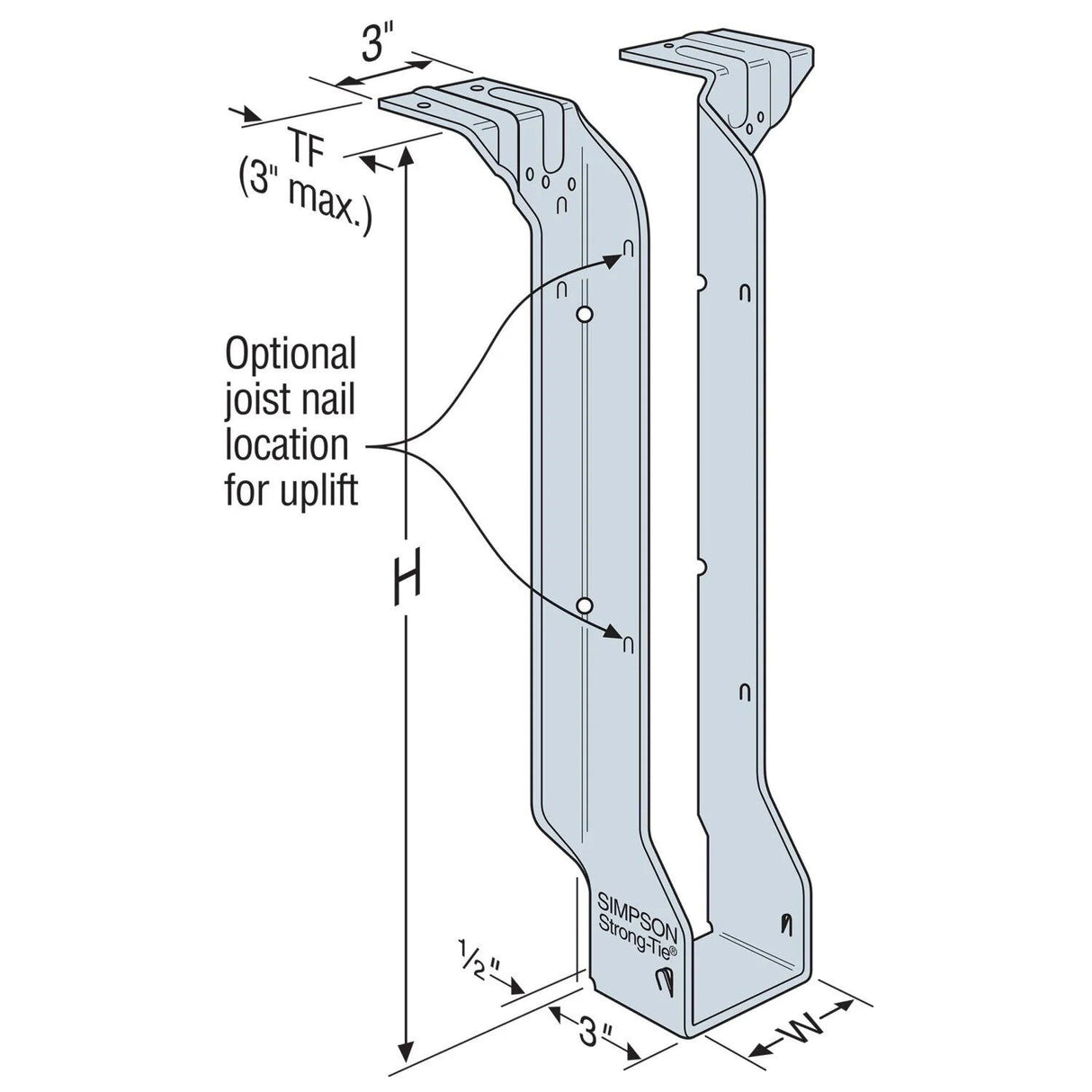

Simpson Strong-Tie HIT324 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Top - (4) 0.162" x 3-1/2" Nails, Face - (6) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
| Height | 24" |
| Joist size | 2-1/2" X 24" |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 2-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
