Simpson Hangers | SKU:
HIT424

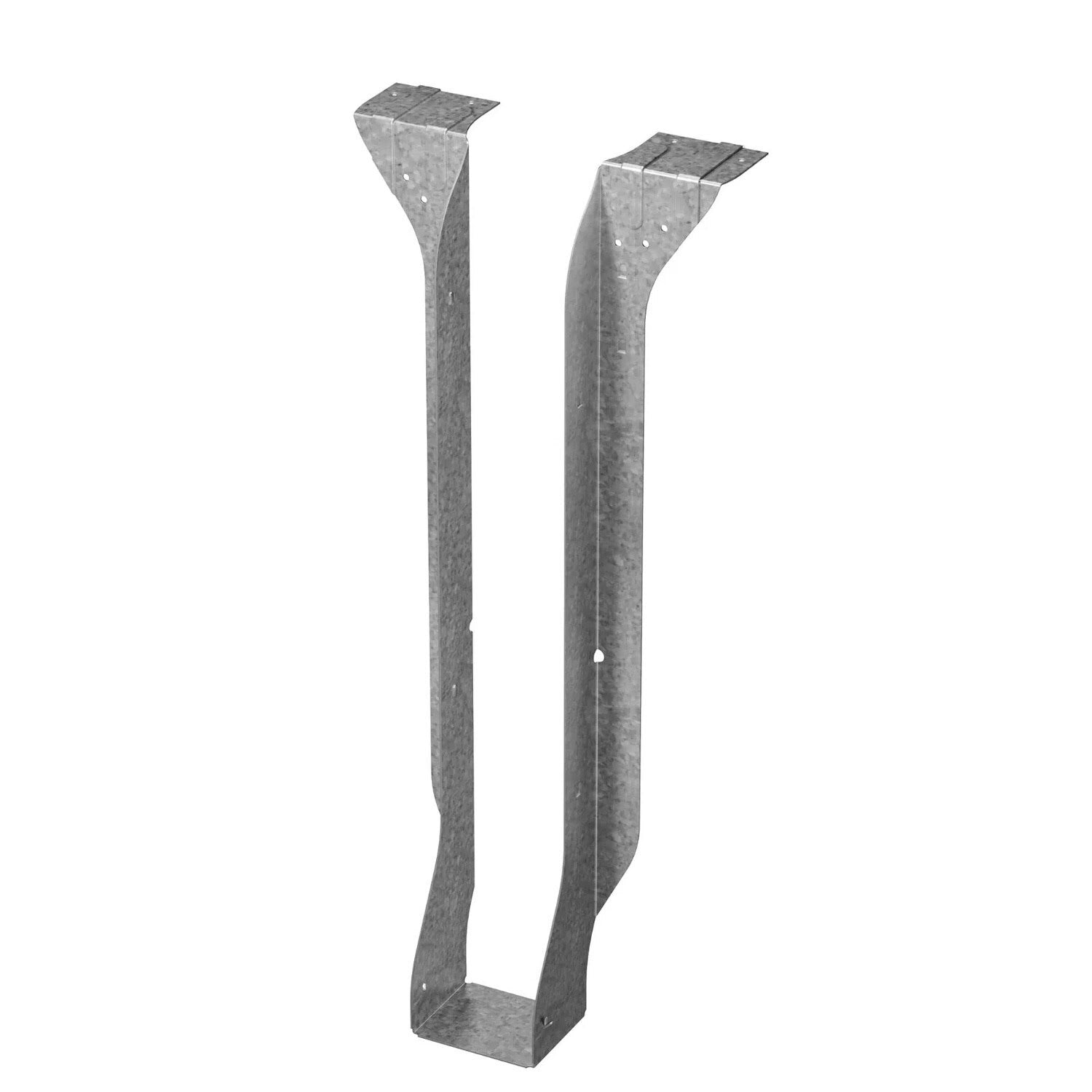

Simpson Strong-Tie HIT424 (3-1/2" x 24") Galvanized Top-Flange Joist Hanger for Engineered Wood
$38.13
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HIT424 Description
The Simpson Strong-Tie HIT424 is a galvanized top-flange joist hanger designed for engineered wood, offering high load capacity and durability.
Simpson Strong-Tie HIT424 Includes
- (1) HIT424 Top-Flange Joist Hanger
Simpson Strong-Tie HIT424 Features
- Time-saving PAN nailing
- Features two face nails for higher uplift
- Cost-effective solution for standard 90° connections
- Made from heavy-gauge steel
- Optimally placed nail holes for reduced splitting
Simpson Strong-Tie HIT424 Applications
- Multi-Family Construction: Provides safe, high-capacity joist support for apartments and condominiums.
- Light Commercial Projects: Ideal for engineered wood framing with code-compliant load capacity.
- Custom Homes: Ensures secure connections in homes with open floor plans and long spans.
- Mezzanines and Platform Framing: Offers structural stability in warehouse and industrial environments using I-joist framing.
Simpson Strong-Tie HIT424 Installation Overview
- Use all specified fasteners and verify header compatibility.
- Refer to product-specific installation drawings.

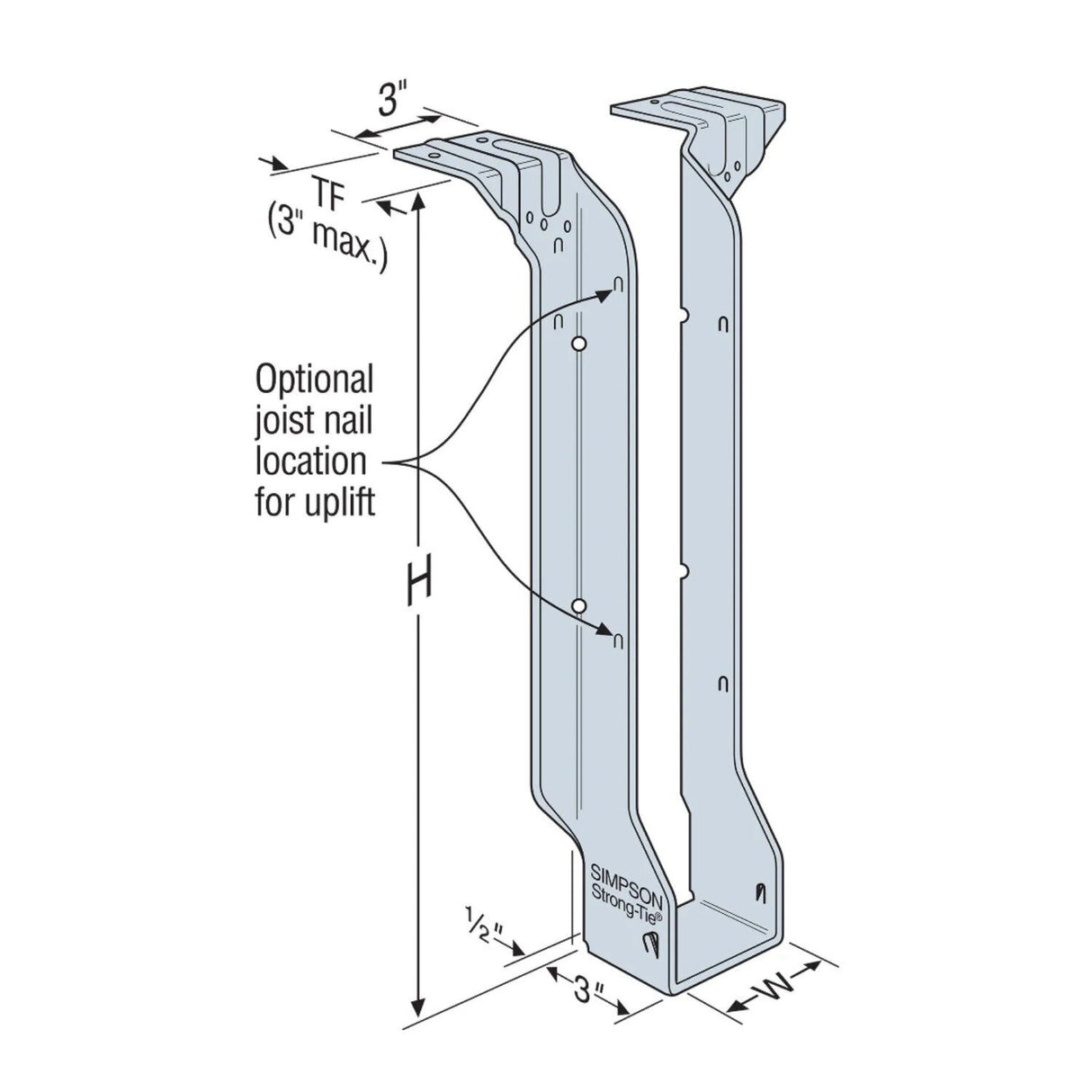

- Closed PAN nail holes can be used for increased uplift capacity.
- Ensure joist end bears fully in the hanger seat before fastening.

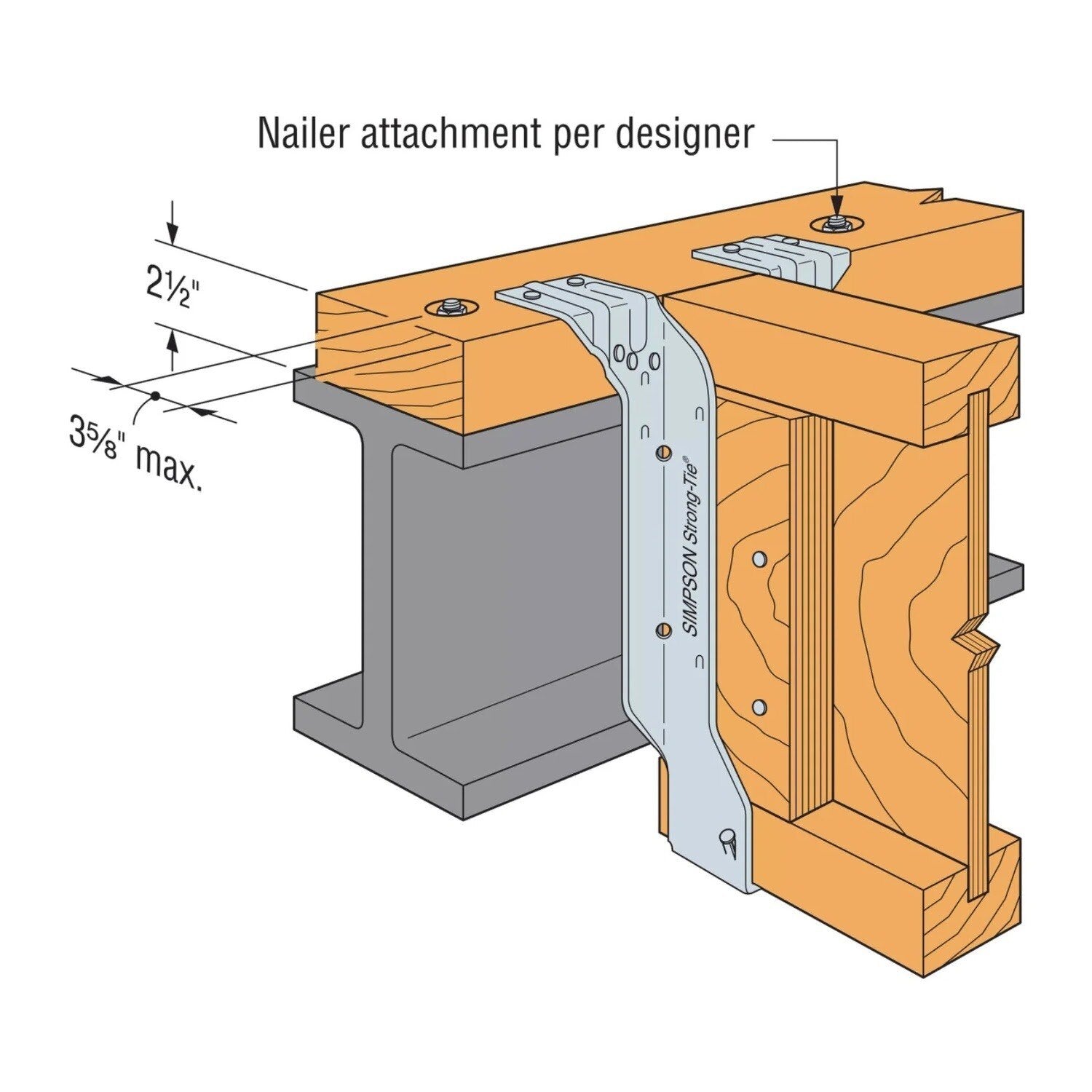

- Top-flange must be fully supported on the header material.
Simpson Strong-Tie HIT424 Specifications
| Material | 16 Gauge |
| Finish | G90 Galvanized |
| Joist Size | 3-1/2" X 24" |
| Width | 3-9/16" |
| Height | 24" |
| Fasteners Required | Top - (4) 0.162" x 3-1/2" Nails, Face - (6) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
