Simpson Anchors | SKU:
HS24

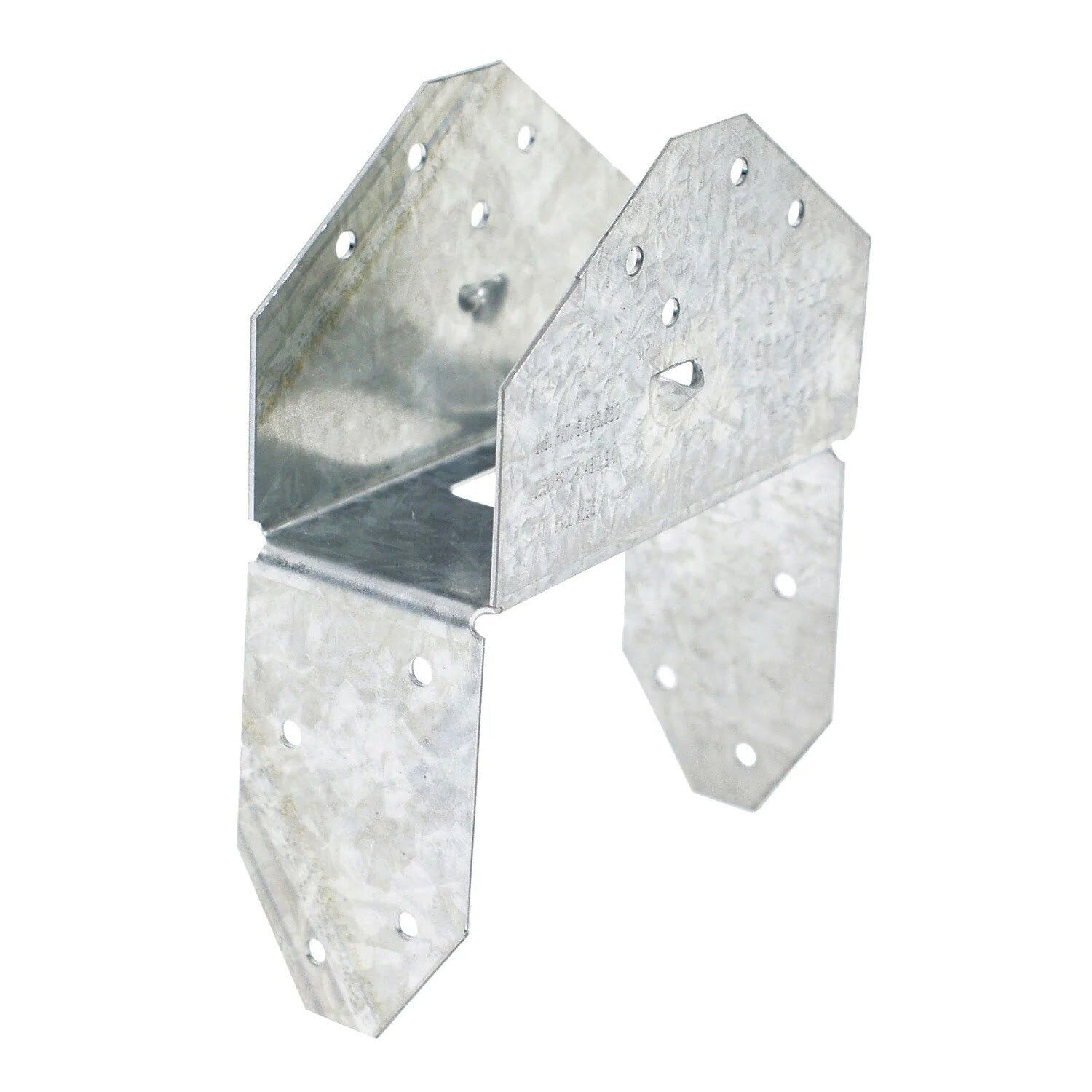

Simpson Strong-Tie HS24 (18 Gauge) Hurricane Tie - G90 Galvanized
$4.73
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HS24 Description

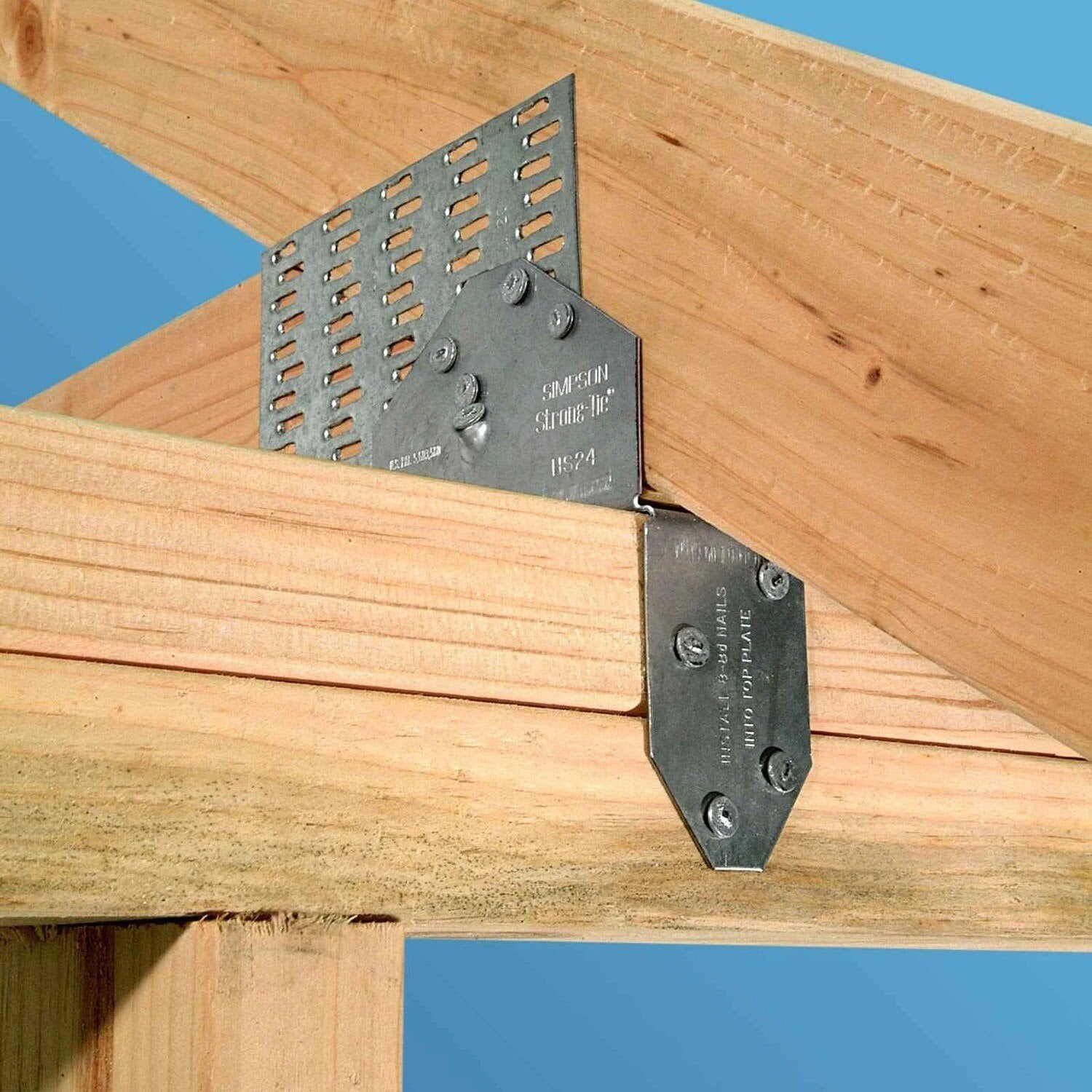

The Simpson HS24 Hurricane Tie is designed to attach the bottom chord of a truss or rafter to double 2x4 top plates, providing resistance against wind and seismic forces.
Simpson Strong-Tie HS24 Includes
- (1) Hurricane Tie
Simpson Strong-Tie HS24 Features
- G90 Galvanized finish for corrosion resistance
- Double-shear nailing for higher lateral resistance
- Designed for pitches from 0/12 to 4/12
- Resists wind and seismic forces
Simpson Strong-Tie HS24 Applications
- Securing trusses or rafters to top plates in construction
- Providing structural support against wind and seismic forces
Simpson Strong-Tie HS24 Installation Overview
- Position the HS24 Hurricane Tie on the bottom chord of the truss or rafter.
- Align the tie with the double 2x4 top plates.
- Secure using the specified fasteners: (8) 0.131 x 1-1/2 and (2) 0.131 x 2-1/2 slant to rafters/truss, and (8) 0.131 x 2-1/2 to plates.

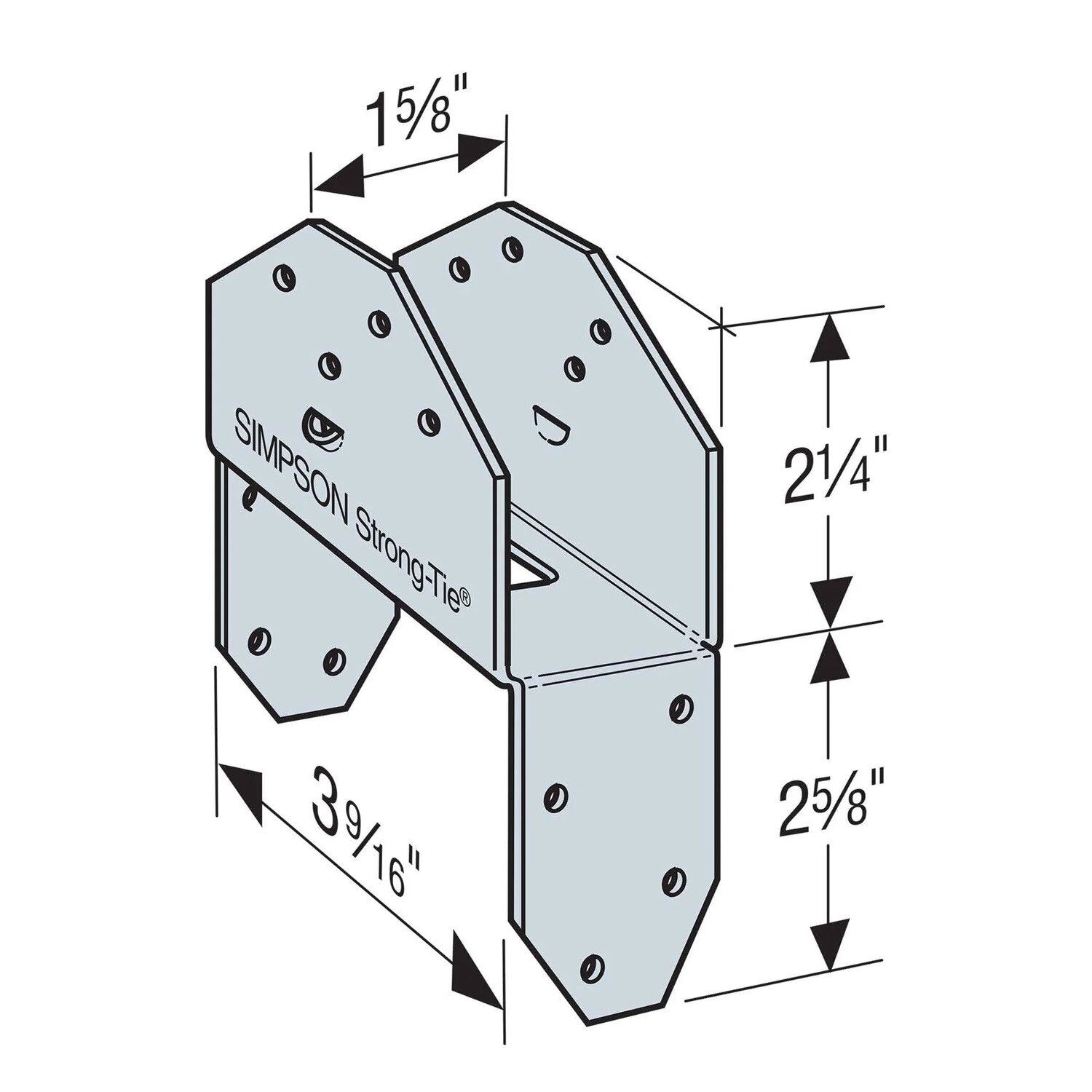

Simpson Strong-Tie HS24 Specifications
| Finish | G90 Galvanized |
| Material | Galvanized Steel |
| Fasteners required | To Rafters/Truss: (8) 0.131 x 1-1/2 and (2) 0.131 x 2-1/2 slant; To Plates: (8) 0.131 x 2-1/2 |
| Thickness | 18 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
