Simpson Anchors | SKU:
HSKP5.75X14.5
Simpson Strong-Tie HSKP5.75X14.5 (5-3/4" x 14-1/2") Heavy Seated Knife Plate Hanger - Steel
Free Shipping
$339.20
Unit price
/
Unavailable
Description
Description

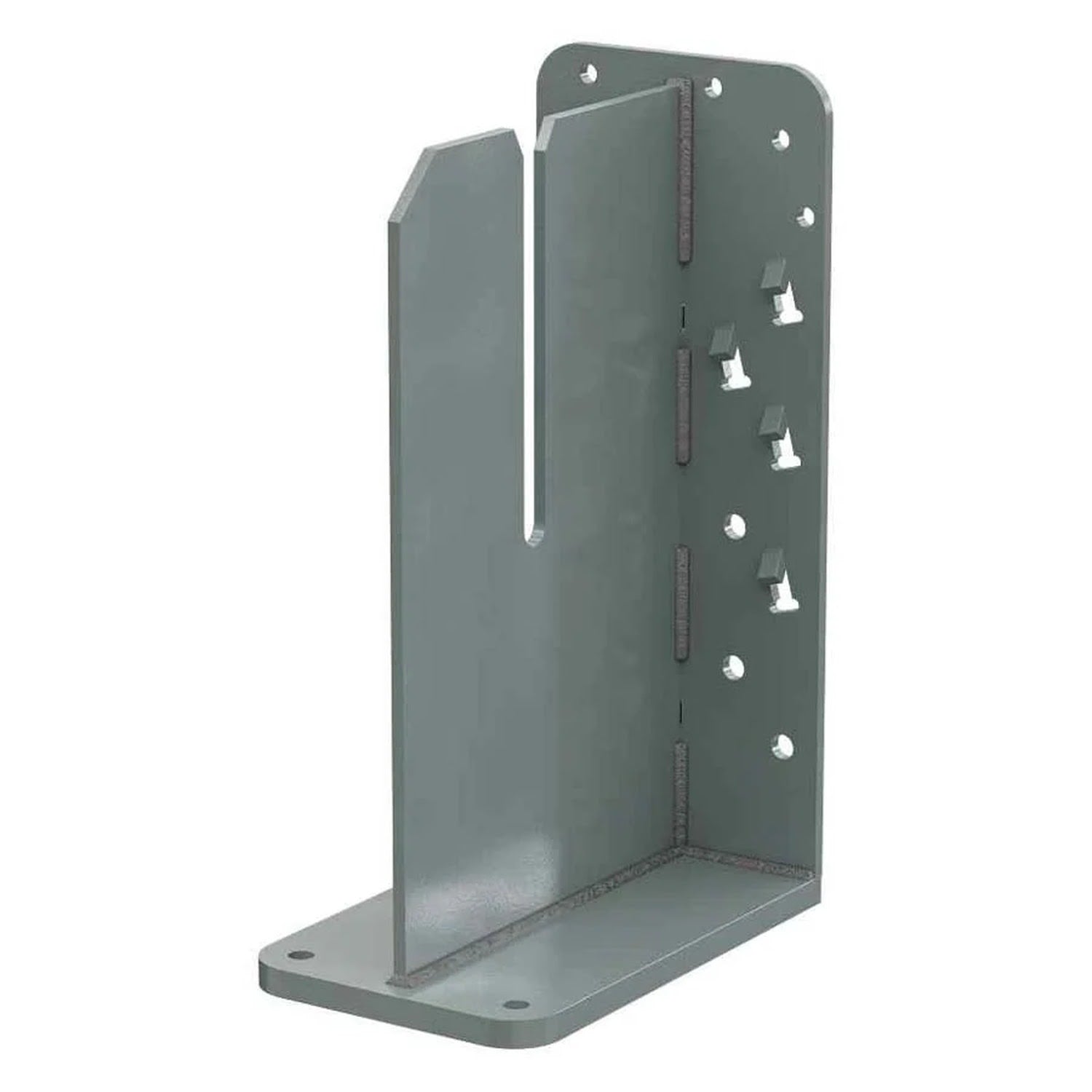

Simpson Strong-Tie HSKP5.75X14.5 Description
The HSKP5.75X14.5 is a high-capacity, concealed beam hanger kit designed for mass timber construction, offering superior structural performance and a clean, exposed-wood aesthetic.

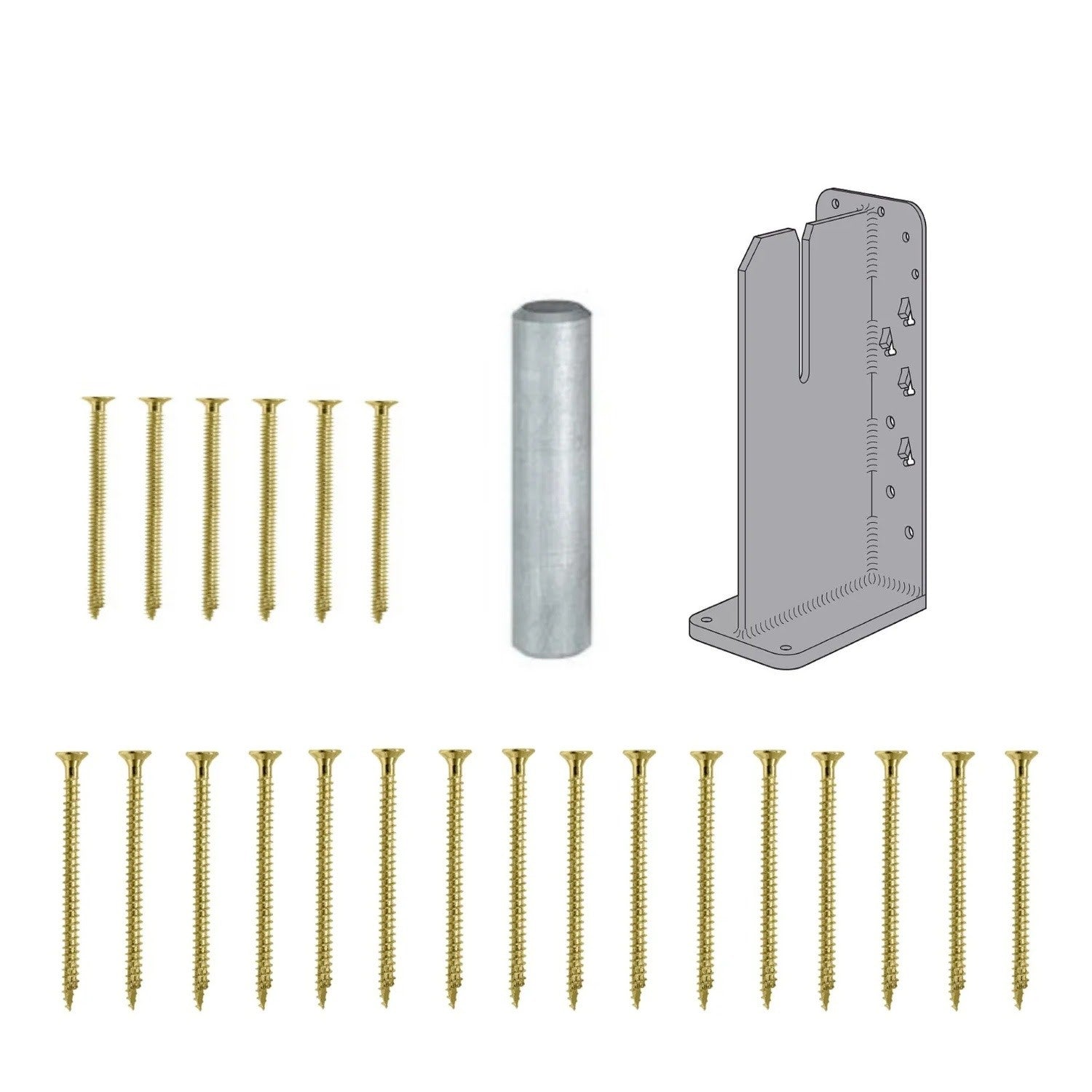

Simpson Strong-Tie HSKP5.75X14.5 Includes
- (1) HSKP5.75X14.5 Heavy Seated Knife Plate
- (1) CJTPL 1/2" Dia. Steel Dowel
- (16) SDCF27614 0.390" x 6-1/4" Strong-Drive SDCF Timber-CF Screws
- (6) SDCF22858 0.315" x 8-5/8" Strong-Drive SDCF Timber-CF Screw
Simpson Strong-Tie HSKP5.75X14.5 Features
- High Load Capacity: Rated up to 32 kips for demanding mass timber projects
- Concealed Aesthetic: Keeps all hardware hidden for a clean architectural finish
- Fire-Rated: Meets two-hour fire resistance for code compliance
- Angled Fastener Installation: Patented tab design allows for 45° screw angle, increasing stiffness and load rating
- Factory-Ready: Designed for offsite fabrication and fast, reliable on-site installation
Simpson Strong-Tie HSKP5.75X14.5 Applications

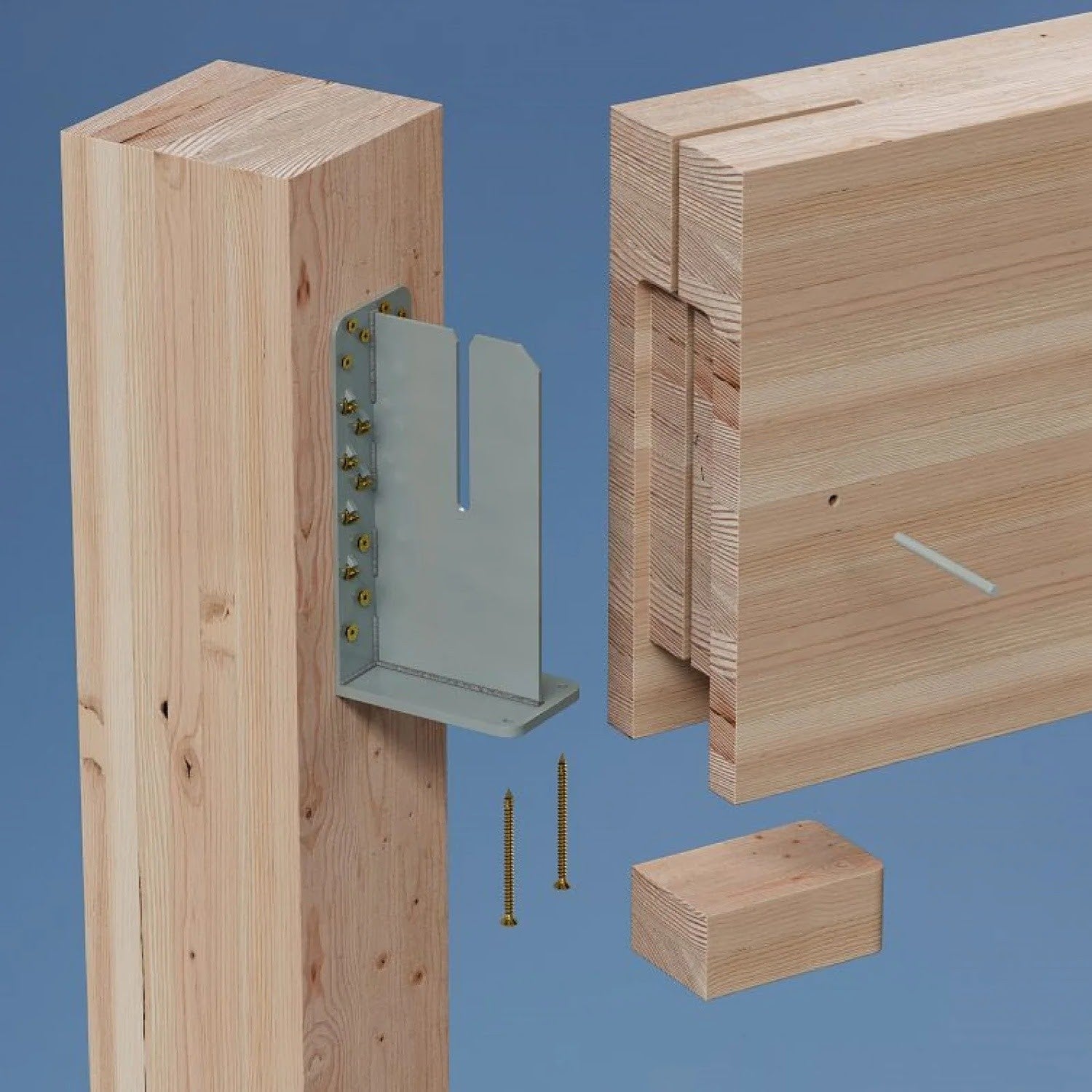

- Concealed beam-to-column connections in exposed timber frames
- Beam splicing and inline joins in engineered wood structures
- Wood-to-steel beam or column interfaces in hybrid builds
Simpson Strong-Tie HSKP5.75X14.5 Installation Overview
- Position the HSKP knife plate at the beam seat location on the supporting structure
Simpson Strong-Tie HSKP5.75X14.5 Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| Additional Info | Back and Knife Plate — 3 gauge; Bearing Plate — 1/2" |
