Simpson Anchors | SKU:
HSKP5.75X17KT
Simpson Strong-Tie HSKP5.75X17KT (5-3/4" x 17") Heavy Seated Knife Plate Hanger Kit - Steel
Free Shipping
$543.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HSKP5.75X17KT Description

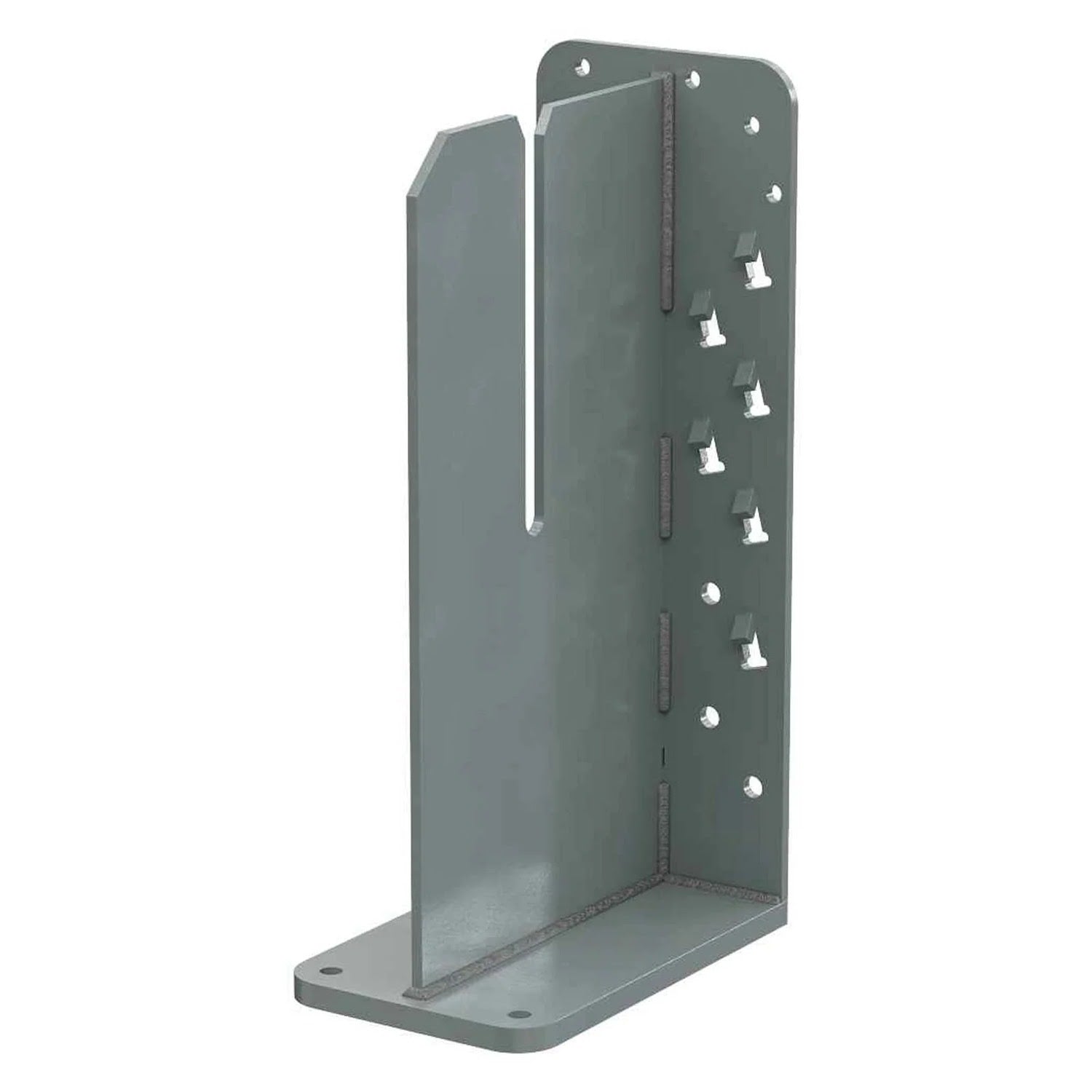

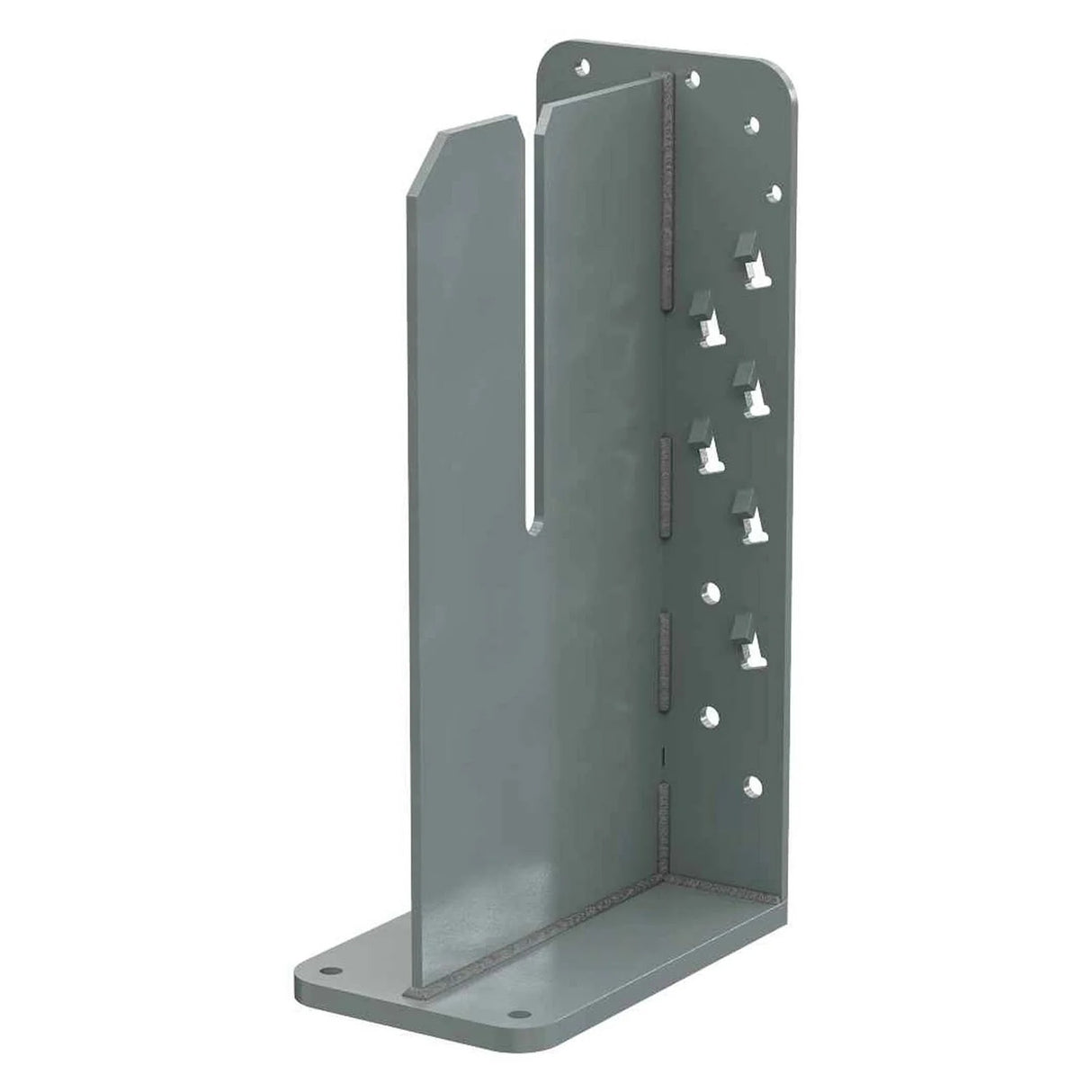

The Simpson Strong-Tie HSKP5.75X17KT Heavy Seated Knife Plate Hanger Kit is built to provide a strong, concealed wood connection for mass timber projects. It offers a high load capacity, clean aesthetics, and code-compliant performance, making it a go-to solution for commercial and structural applications.

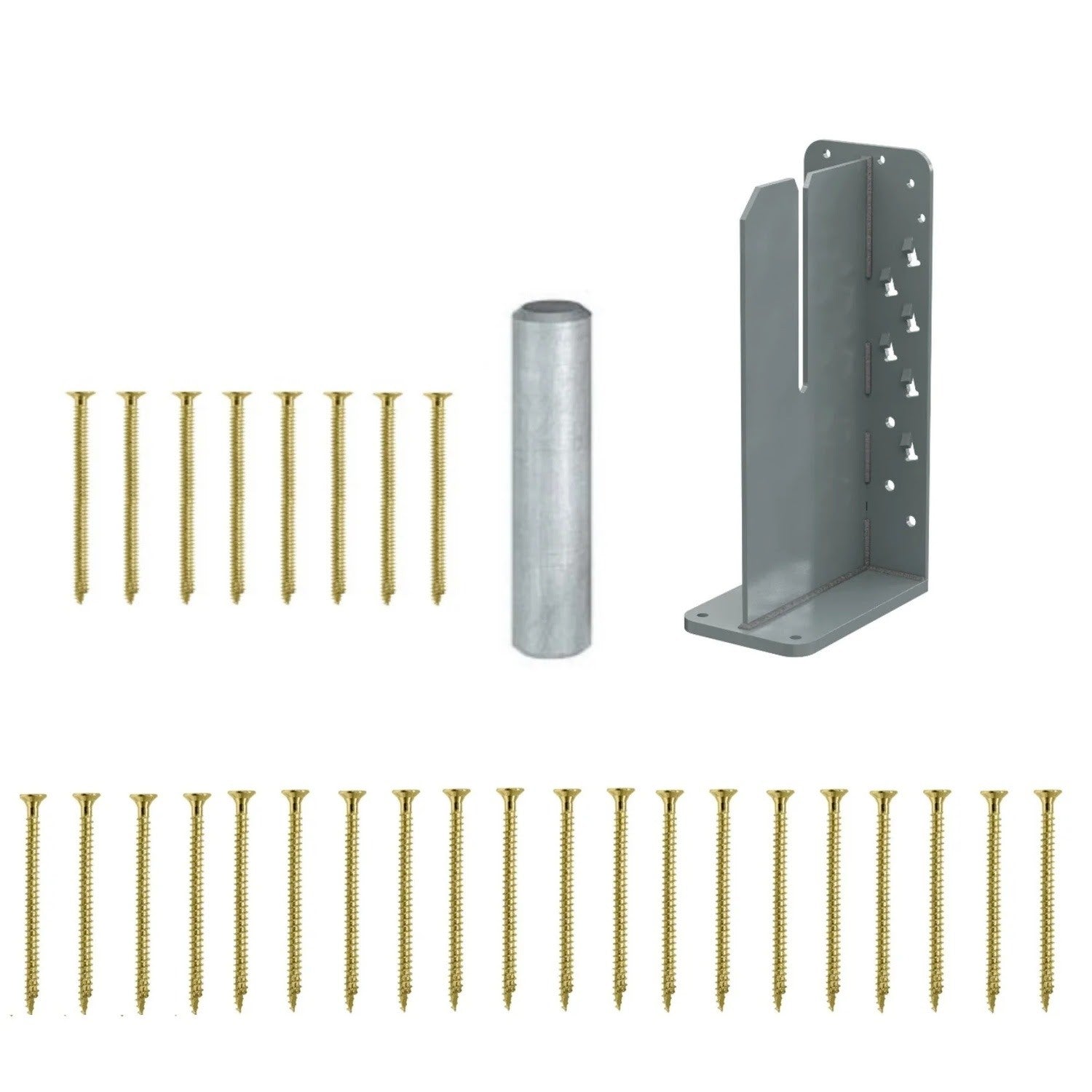

Simpson Strong-Tie HSKP5.75X17KT Includes
- (1) HSKP5.75X17 Heavy Seated Knife Plate Hanger
- (1) CJTPL 1/2" Dia. Steel Dowel
- (20) SDCF27614 0.390" x 6-1/4" Strong-Drive SDCF Timber-CF Screws
- (8) SDCF22858 0.315" x 8-5/8" Strong-Drive SDCF Timber-CF Screws
Simpson Strong-Tie HSKP5.75X17KT Features
- High load capacity for demanding structural applications
- Concealed design for a hidden end-grain connection
- Fire resistance rated for up to 2-hour fire resistance
- Pre-fit factory installation to streamline on-site construction
- Code-listed and ICC-ES and UL-tested
Simpson Strong-Tie HSKP5.75X17KT Applications
- Wood-to-wood beam connections in mass timber construction
- Wood-to-steel framing interfaces
- Ideal for structural and architectural projects requiring hidden connections

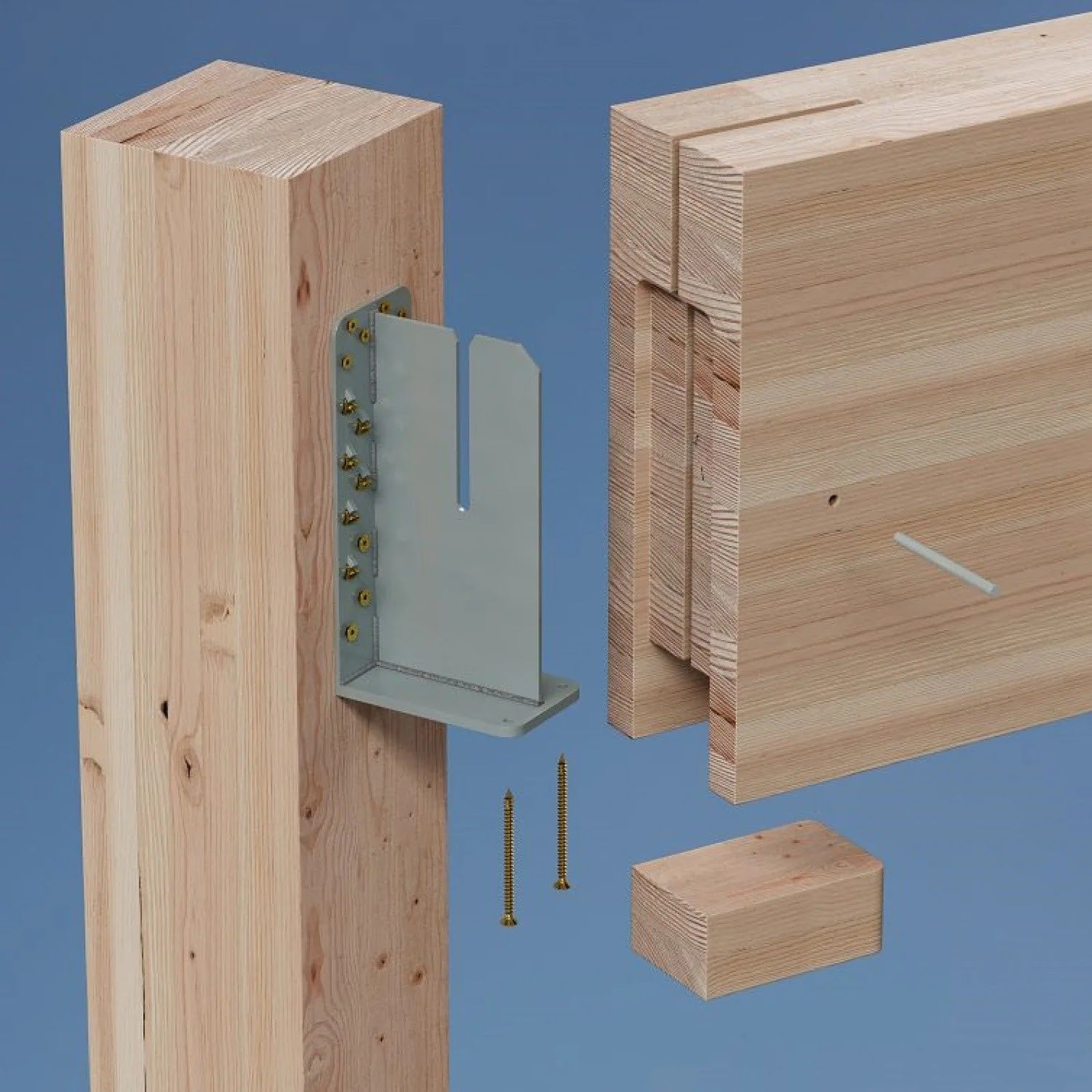

Simpson Strong-Tie HSKP5.75X17KT Installation Overview
- Pre-install the HSKP hanger to the beam in the factory setting.
- Secure with included Strong-Drive SDCF Timber-CF screws driven at 45° angles.
- Place the pre-installed hanger on-site and adjust as needed.
Simpson Strong-Tie HSKP5.75X17KT Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| Weight | 21.4 lb |
| Manufacturer name | Simpson Strong-Tie |
NOTE: When installing SDCF screws for the HSKP connection, do not exceed recommended seating torque values.
