Simpson Anchors | SKU:
HSKP5.75X19.5KT
Simpson Strong-Tie HSKP5.75X19.5KT (5-3/4" x 19-1/2") Heavy Seated Knife Plate Hanger Kit
Free Shipping
$638.97
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HSKP5.75X19.5KT Description

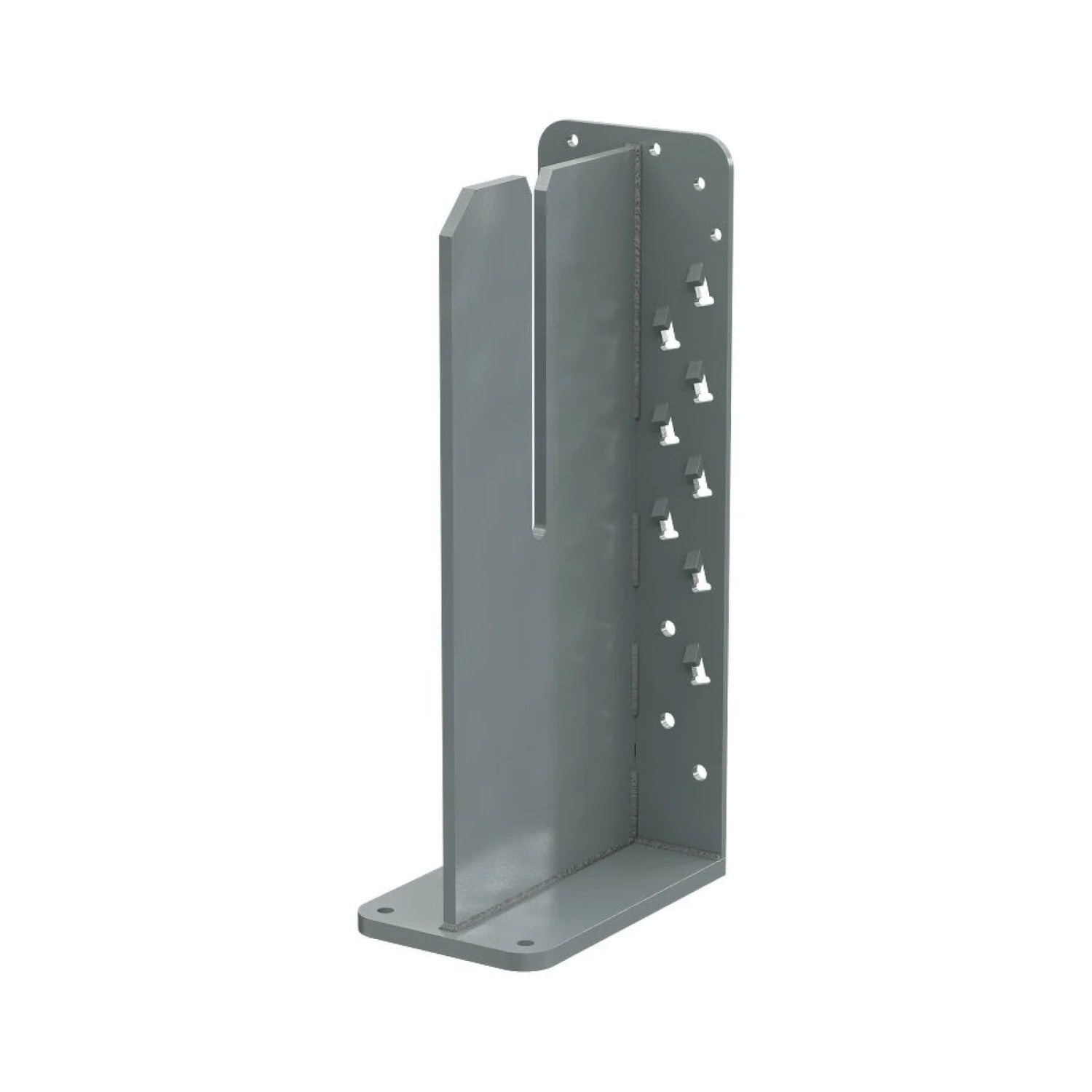

The Simpson Strong-Tie HSKP5.75X19.5KT is a heavy-duty, concealed beam hanger kit engineered for mass timber applications. This seated knife plate hanger offers exceptional strength, a two-hour fire-resistance rating, and a clean, wood-only aesthetic—perfect for structural and architectural projects that demand both performance and visual appeal.

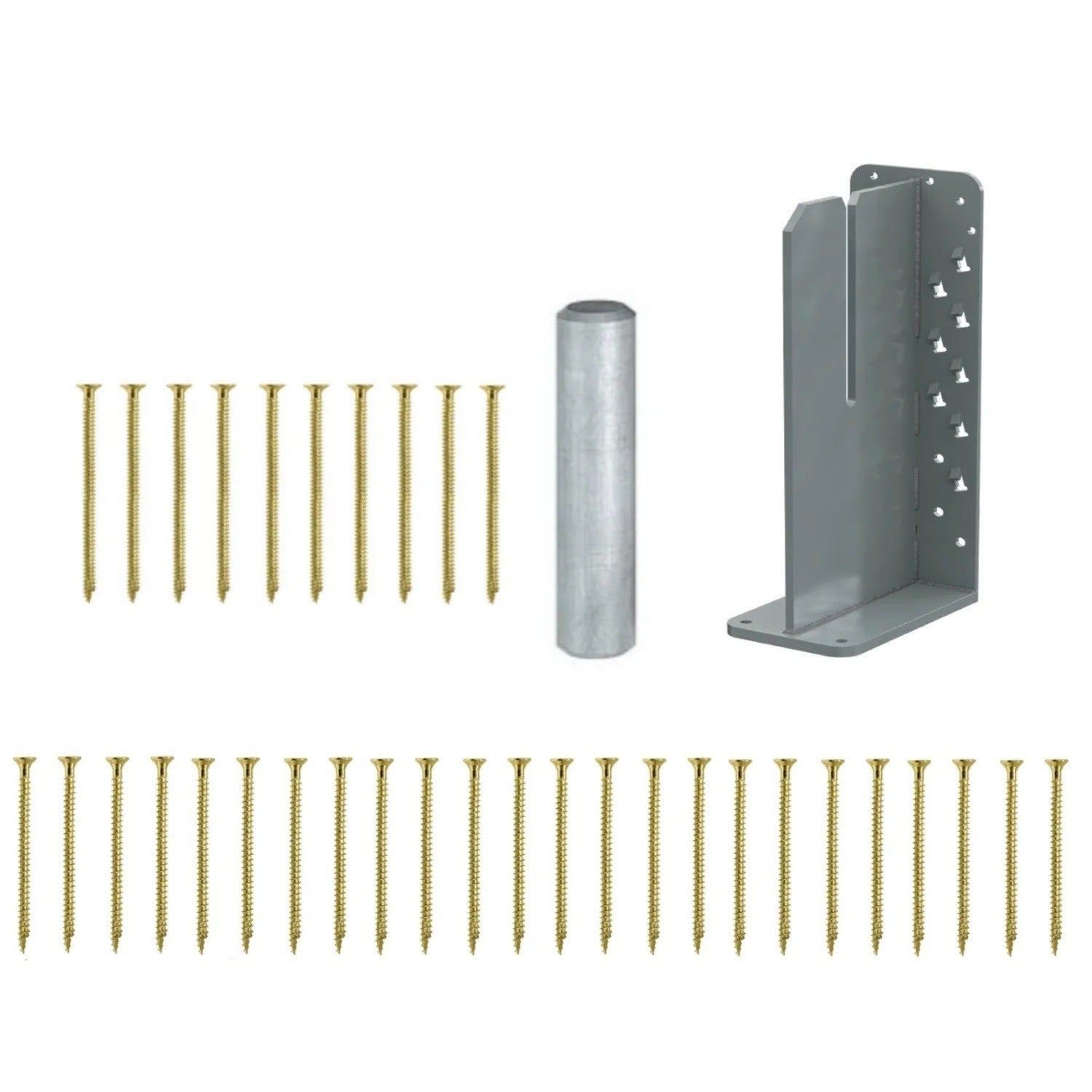

Simpson Strong-Tie HSKP5.75X19.5KT Includes
- (1) HSKP5.75X19.5 Connector
- (1) CJTPL 1/2" Dia. Steel Dowel
- (24) SDCF27614 Screws
- (10) SDCF22858 Screws
Simpson Strong-Tie HSKP5.75X19.5KT Features
- High Load Capacity: Supports loads from 22–32 kips, suitable for demanding structural applications.
- Concealed Connection: Maintains wood-only aesthetics for exposed timber designs.
- Two-Hour Fire Rating: Code-listed for fire resistance in critical applications.
- Easy Beam Placement: Generous fit-up tolerance simplifies installation on-site.
- Factory installation of connector reduces on-site labor.
- Quick field connection of beam to supporting member reduces crane cycle-time.
- Inclined screw hole feature reduces the overall screw count compared to horizontal screws.
- Options for wood-to-wood and wood-to-steel concealed connection.
- Recommended for use at beam-to-beam or beam-to-column connections in any Seismic Design Category.
Simpson Strong-Tie HSKP5.75X19.5KT Applications
- Mass timber and cross-laminated timber (CLT) structures.
- Commercial and residential buildings.
- Architectural designs where concealed connections are desired.

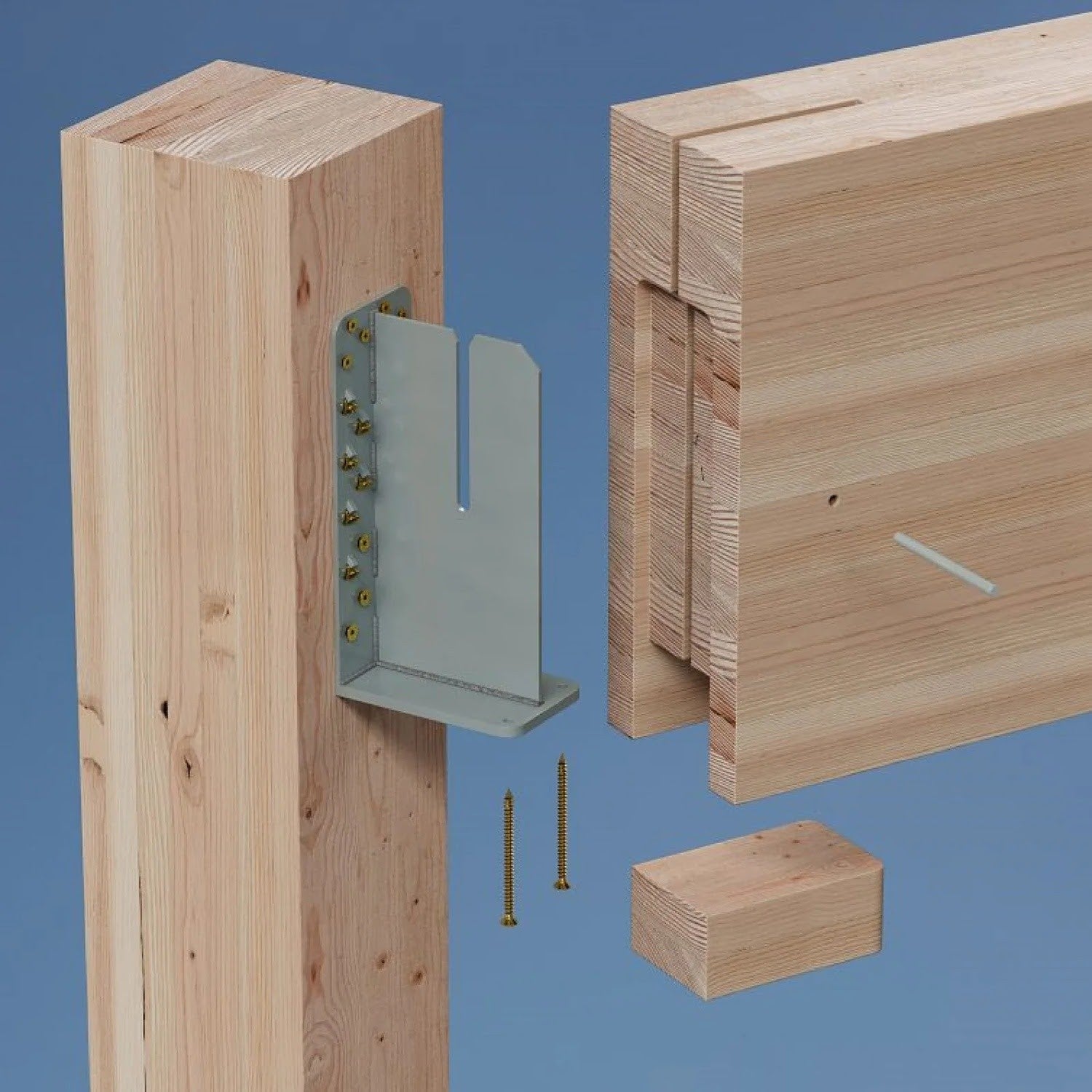

Simpson Strong-Tie HSKP5.75X19.5KT Installation Overview
- Inspect and prepare all components.
- Mark and align the hanger to the correct beam location.
- Use the included SDCF structural screws to secure the hanger to the beam or column in a shop environment.
- Lower the beam into position and secure it using the provided screws.
Simpson Strong-Tie HSKP5.75X19.5KT Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| Back and Knife Plate | 3/8" gauge |
| Bearing Plate | 1/2" |
NOTE: When installing SDCF screws for the HSKP connection, do not exceed recommended seating torque values.
