Simpson Anchors | SKU:
HSLQ312-SDS2.5

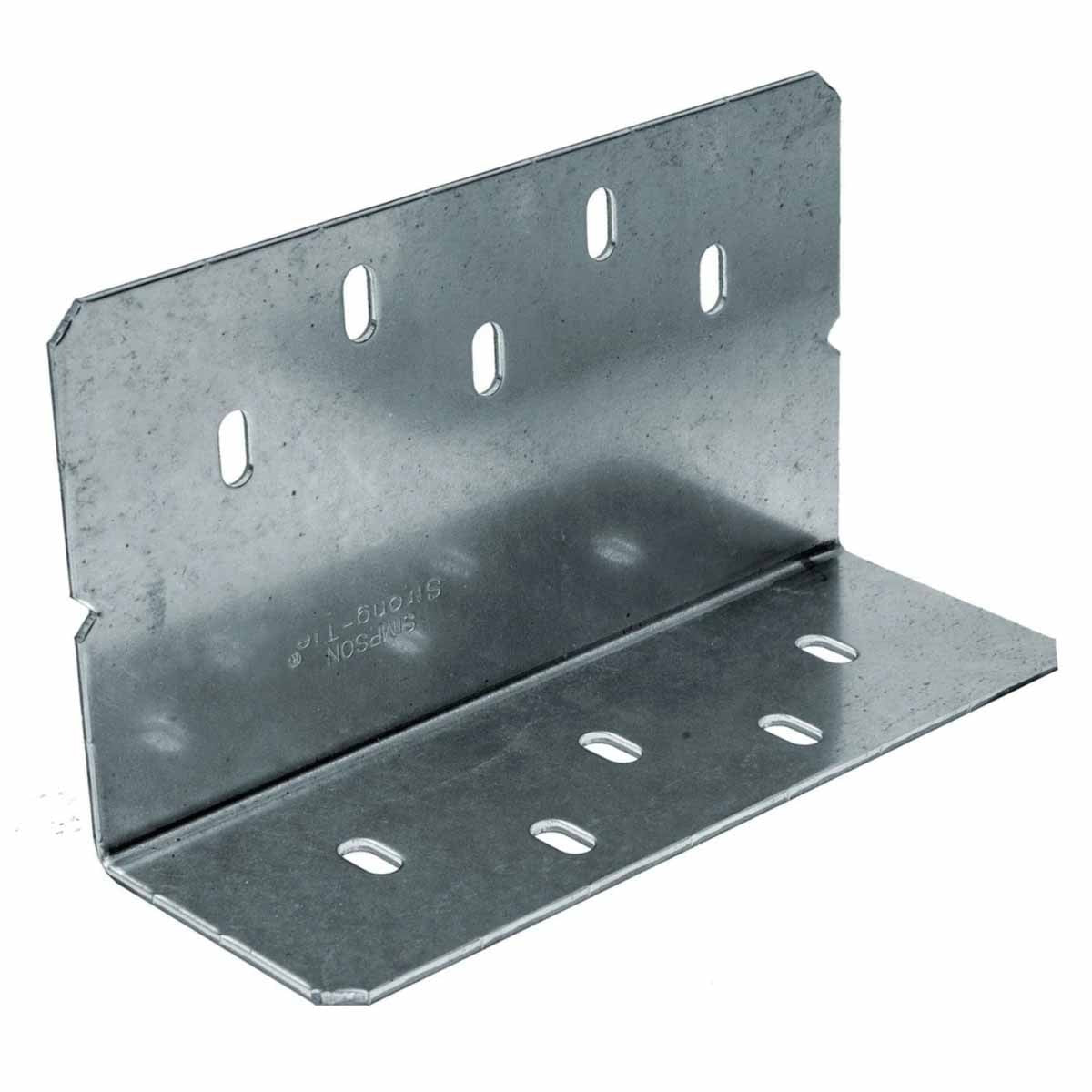

Simpson Strong-Tie HSLQ312-SDS2.5 (11-3/4" x 3-1/4") 12 Gauge Heavy Shear Transfer Angle - G90 Galvanized with SDS Screws
$35.47
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HSLQ312-SDS2.5 Description
The Simpson Strong-Tie HSLQ heavy shear transfer angle is designed to transfer lateral loads from wood solid sawn joists or blocking into a wood solid sawn element such as a moment frame nailer. It includes Strong-Drive SDS Heavy-Duty Connector screws for easy installation.
Simpson Strong-Tie HSLQ312-SDS2.5 Includes
- (18) 1/4" x 2-1/2" SDS - fasteners included
Simpson Strong-Tie HSLQ312-SDS2.5 Features
- Transfers lateral loads effectively
- Includes Strong-Drive SDS Heavy-Duty Connector screws
- Gap indication notch for proper installation
- Made from durable 12-gauge galvanized steel
Simpson Strong-Tie HSLQ312-SDS2.5 Applications

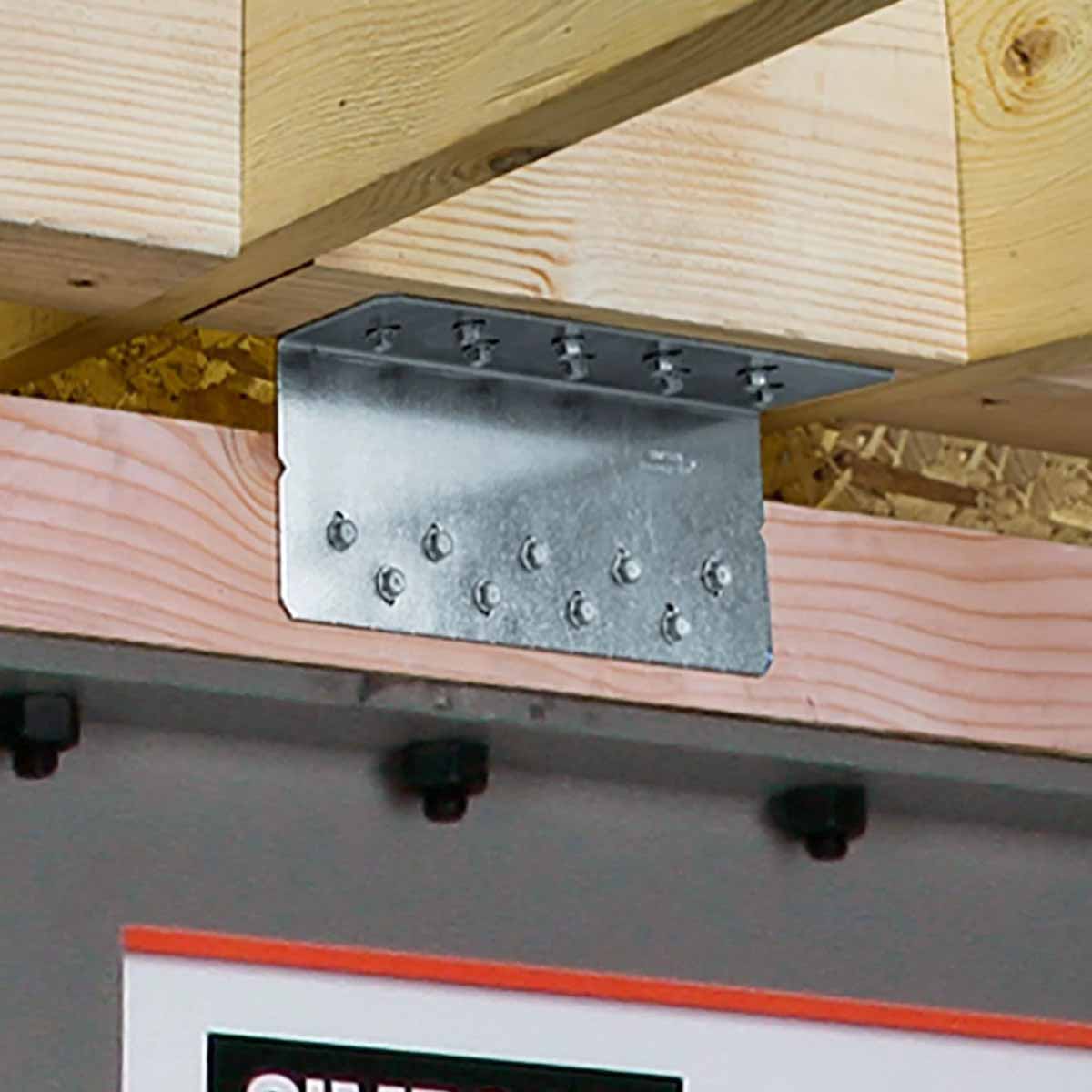

- Wood framing requiring lateral load transfer
- Connecting wood solid sawn joists or blocking to a moment frame nailer
Simpson Strong-Tie HSLQ312-SDS2.5 Installation Overview
- Use all specified fasteners as per guidelines
- Align the long leg with the notch indicator
- Ensure minimum 4x8 wood members are used
- Add filler shims where necessary to avoid loading the angle in unintended directions
Simpson Strong-Tie HSLQ312-SDS2.5 Specifications
| Length | 11-3/4" |
| Fasteners required | (18) 1/4" x 2-1/2" SDS - fasteners included |
| Manufacturer name | Simpson Strong-Tie Company Inc |
| Thickness | 12 Gauge |
| Width | 3-1/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
