Simpson Anchors | SKU:
HSLQ37-SDS2.5

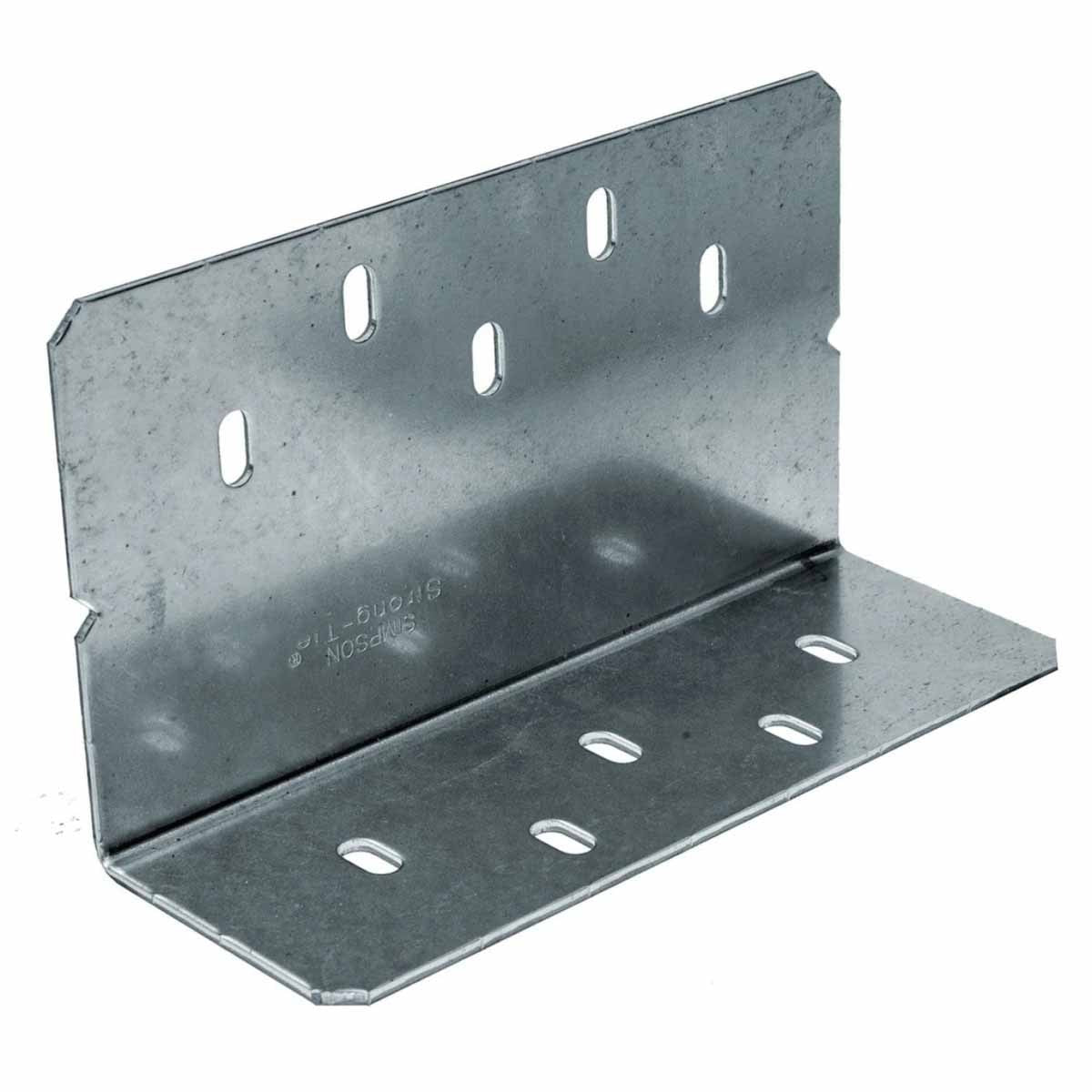

Simpson Strong-Tie HSLQ37-SDS2.5 (7-1/4" x 3-1/4") 12 Gauge Heavy Shear Transfer Angle - G90 Galvanized with SDS Screws
$24.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HSLQ37-SDS2.5 Description
The Simpson Strong-Tie HSLQ heavy shear transfer angle is designed to transfer lateral loads from wood solid sawn joists or blocking into a wood solid sawn element such as a moment frame nailer.
Simpson Strong-Tie HSLQ37-SDS2.5 Includes
- (10) 1/4" x 2-1/2" SDS - fasteners included
Simpson Strong-Tie HSLQ37-SDS2.5 Features
- Designed to transfer lateral loads effectively
- Allows up to a 2" gap between structural members
- Easy installation with included SDS Heavy-Duty Connector screws
- Manufactured with a gap indication notch for proper installation
Simpson Strong-Tie HSLQ37-SDS2.5 Applications

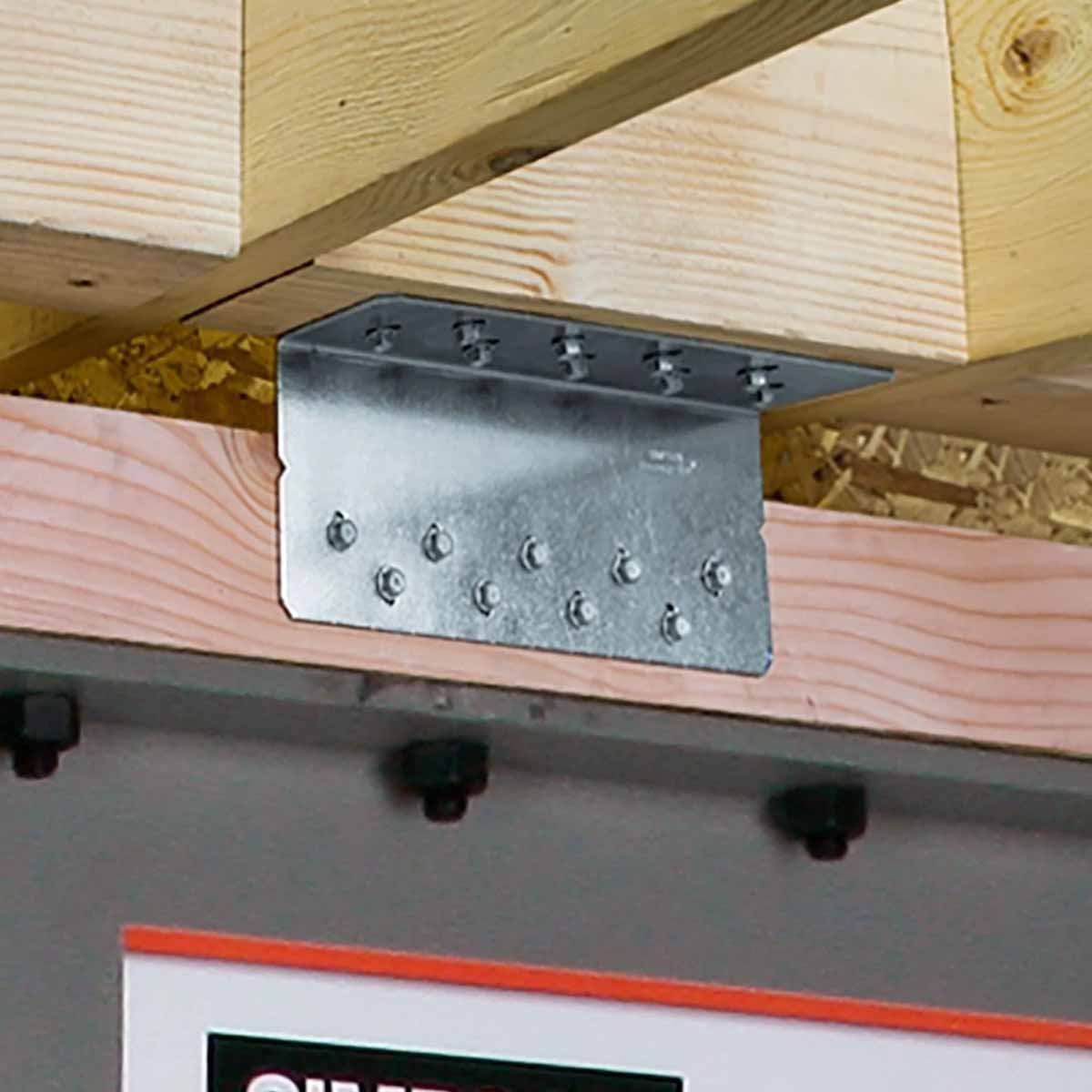

- Lateral load transfer in wood solid sawn joists or blocking
- Connection to wood solid sawn elements such as moment frame nailers
Simpson Strong-Tie HSLQ37-SDS2.5 Installation Overview
- Use all specified fasteners as per General Notes
- Utilize the long leg with notch indicator for maximum gap allowance
- Ensure minimum 4x8 wood members are used
- Add filler shims where required to prevent loading the angle in unintended directions
Simpson Strong-Tie HSLQ37-SDS2.5 Specifications
| Length | 7-1/4" |
| Fasteners required | (10) 1/4" x 2-1/2" SDS - fasteners included |
| Manufacturer name | Simpson Strong-Tie Company Inc |
| Thickness | 12 Gauge |
| Width | 3-1/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
