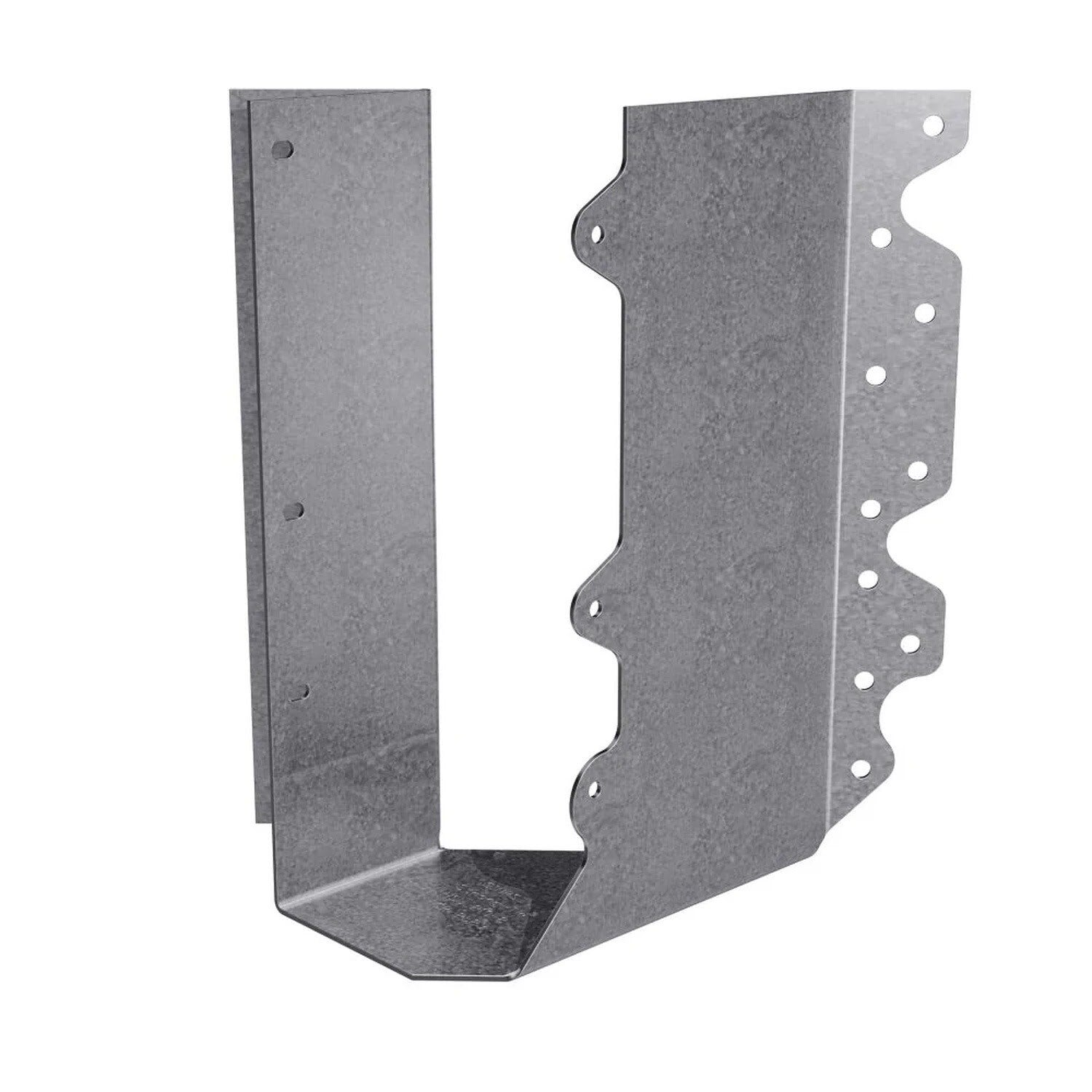

Simpson Strong-Tie HSUL210-2 Description
The HSUL210-2 is a heavy-duty left-skewed double joist hanger designed for high-load applications, providing superior strength and durability for skewed wood-to-wood connections.
Simpson Strong-Tie HSUL210-2 Includes
- (1) Double Joist Hanger
Simpson Strong-Tie HSUL210-2 Features
- G90 Galvanized Steel for corrosion resistance
- 45-Degree Skew for angled joist-to-beam connections
- Heavy-Duty Load Capacity for demanding applications
- Reinforced U-Shaped Design for enhanced strength
- Versatile Compatibility with solid sawn and engineered wood joists
Simpson Strong-Tie HSUL210-2 Applications
- Deck & Outdoor Structures: Provides strong, secure joist-to-beam connections for decks, pergolas, and patios.
- Roof Framing: Ideal for angled rafters and skewed truss-to-beam connections.
- Floor Framing: Supports skewed joist connections in residential, commercial, and industrial flooring systems.
- Engineered Wood Applications: Ensures proper support for engineered wood joists.
Simpson Strong-Tie HSUL210-2 Installation Overview
- Use 10d or 16d nails or #10 screws as specified in load tables for solid sawn lumber.
- Follow manufacturer guidelines for proper nail or screw length and spacing in engineered wood applications.
- Ensure fasteners are galvanized to prevent corrosion when using G90 galvanized steel hangers.
- Secure the hanger to the supporting beam using all designated nail holes for even load distribution.
- Fully seat joists within the hanger before fastening to maintain proper alignment and support.
- Pre-drill when working with dense engineered wood to prevent splitting.
Simpson Strong-Tie HSUL210-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (20) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 2-1/2" Nails |
| For Treated Lumber | No |
| Height | 8-11/16" |
| Joist size | Double 2" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 14 Gauge |
| Type | Left Skewed |
| Width | 3-1/8" |
Toolup Part # :
824143
