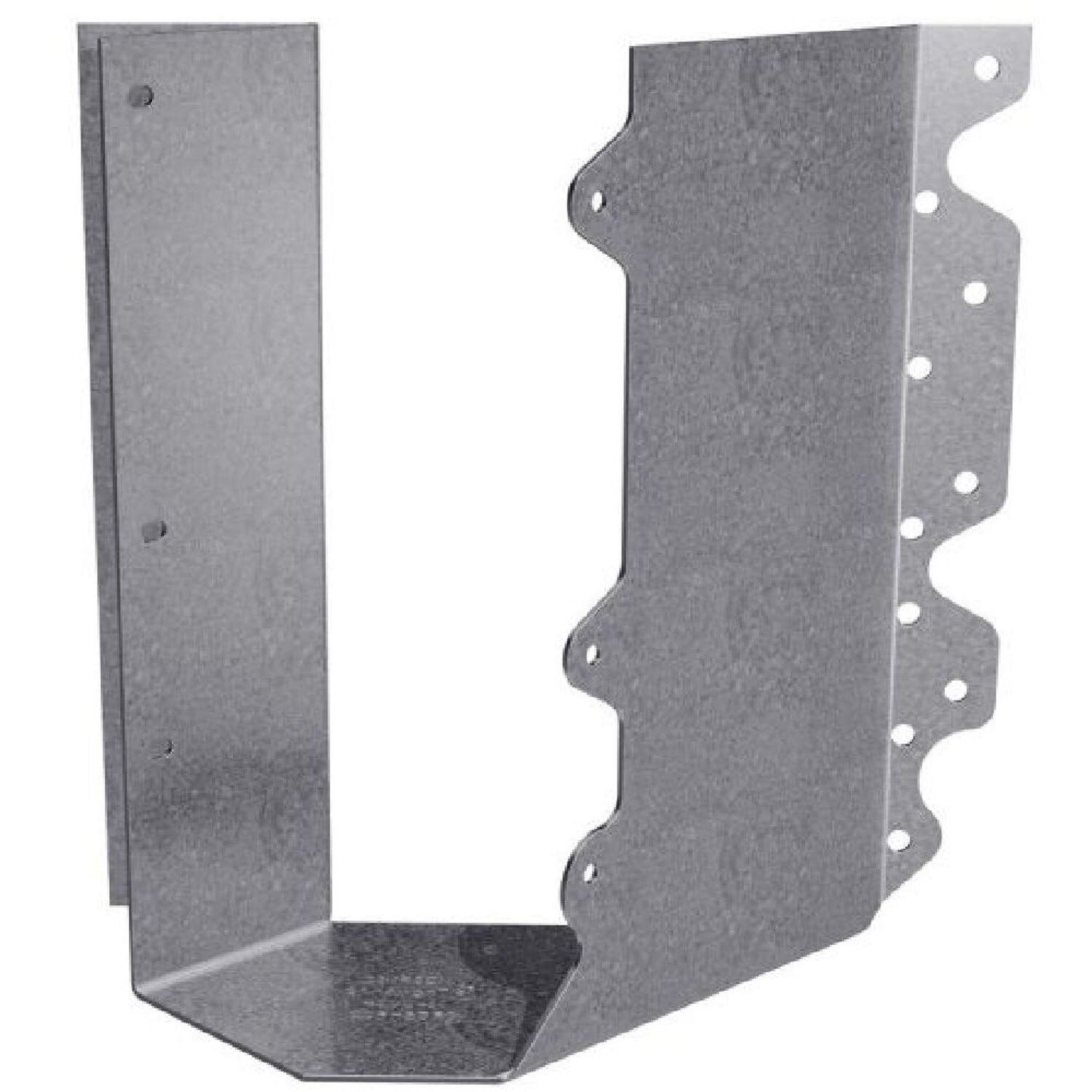

Simpson Strong-Tie HSUL26-2 Description
The HSUL26-2 is a heavy-duty galvanized joist hanger designed for double 2x6 lumber, skewed left for angled connections. It offers high load capacity and corrosion resistance.
Simpson Strong-Tie HSUL26-2 Includes
- (1) HSUL26-2 Joist Hanger
Simpson Strong-Tie HSUL26-2 Features
- G90 Galvanized Steel for corrosion resistance
- Designed for double 2x6 lumber
- 45-degree skew for angled connections
- Heavy-duty load capacity
- Precision-formed U-shaped design
Simpson Strong-Tie HSUL26-2 Applications
- Deck Framing: Provides strong joist-to-beam connections for outdoor structures.
- Roof Framing: Ideal for angled rafters and skewed truss-to-beam connections.
- Floor Framing: Supports skewed joist connections in various flooring systems.
- Engineered Wood Applications: Compatible with solid sawn and engineered wood joists.
Simpson Strong-Tie HSUL26-2 Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure joists are fully seated within the hanger before fastening.
- Secure the hanger to the supporting beam using all designated nail holes.
- Pre-drilling may be required for dense engineered wood to prevent splitting.
Simpson Strong-Tie HSUL26-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162 x 3-1/2", Joist - (4) 0.162" x 2-1/2" Nails |
| For Treated Lumber | No |
| Height | 4-15/16" |
| Joist size | Double 2" X 6" |
| Thickness | 14 Gauge |
| Type | Left Skewed |
| Width | 3-1/8" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
