Simpson Strong-Tie HSUL410 Description

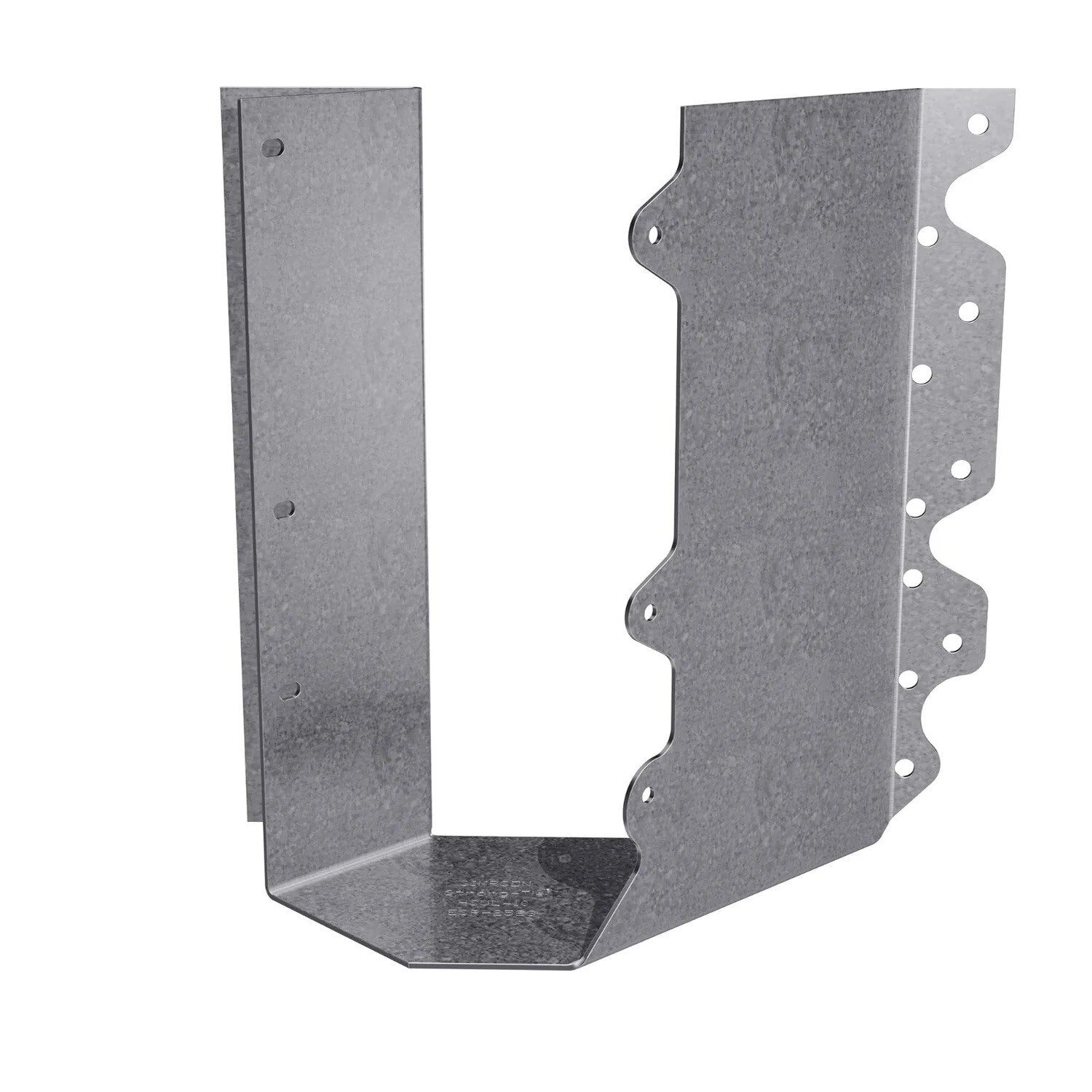

The HSUL410 Heavy Left-Skewed Joist Hanger is designed for high-load applications, providing superior strength and durability for skewed wood-to-wood connections.
Simpson Strong-Tie HSUL410 Includes
- (1) HSUL410 Joist Hanger
Simpson Strong-Tie HSUL410 Features
- G90 Galvanized Steel for corrosion resistance
- 45-Degree Skew for angled joist-to-beam connections
- Heavy-Duty Load Capacity for demanding applications
- Reinforced U-Shaped Design for enhanced strength
- Versatile Compatibility with solid sawn lumber and engineered wood joists
Simpson Strong-Tie HSUL410 Applications
- Deck & Outdoor Structures: Provides strong, secure joist-to-beam connections for decks, pergolas, and patios.
- Roof Framing: Ideal for angled rafters and skewed truss-to-beam connections.
- Floor Framing: Supports skewed joist connections in residential, commercial, and industrial flooring systems.
- Engineered Wood Applications: Suitable for engineered wood joists and beams.
Simpson Strong-Tie HSUL410 Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure joists are fully seated within the hanger before fastening.
- Secure the hanger to the supporting beam using all designated nail holes.
- Pre-drilling may be required for dense engineered wood to prevent splitting.
Simpson Strong-Tie HSUL410 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (20) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 8-1/2" |
| Joist size | 4" X 10" |
| Thickness | 14 Gauge |
| Type | Left Skewed |
| Width | 3-9/16" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
Toolup Part # :
824948
