Simpson Strong-Tie HSUL414 Description

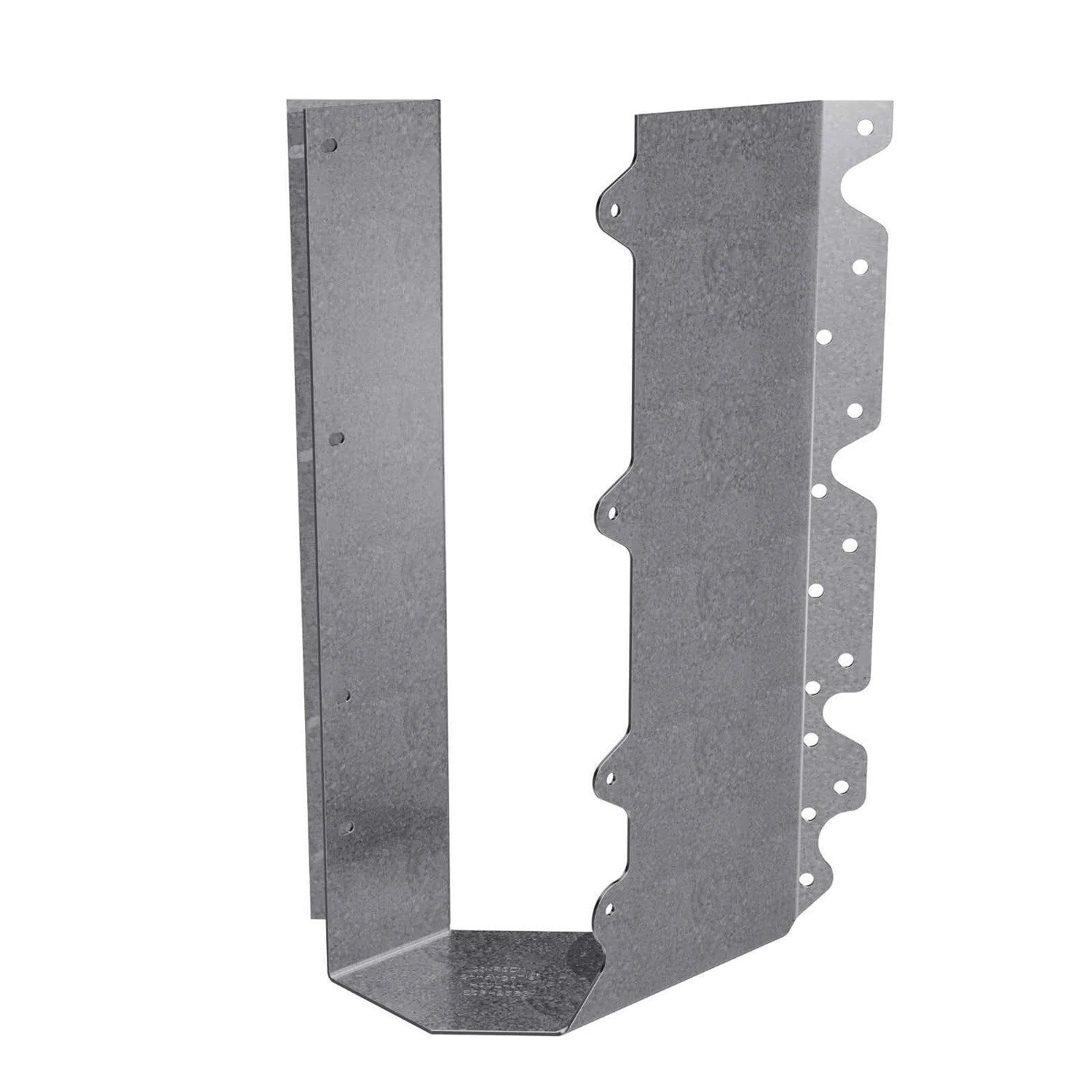

The HSUL414 is a heavy-duty, left-skewed joist hanger designed for 4x14 joists, providing superior strength and corrosion resistance for angled wood-to-wood connections.
Simpson Strong-Tie HSUL414 Includes
- (1) HSUL414 Joist Hanger
Simpson Strong-Tie HSUL414 Features
- G90 Galvanized Steel for corrosion resistance
- 45-degree skew for angled joist-to-beam connections
- Heavy-duty load capacity for demanding applications
- Reinforced U-shaped design for enhanced strength
- Compatible with solid sawn and engineered wood joists
Simpson Strong-Tie HSUL414 Applications
- Deck and outdoor structures: Provides strong, secure joist-to-beam connections for decks, pergolas, and patios.
- Roof framing: Ideal for angled rafters and skewed truss-to-beam connections.
- Floor framing: Supports skewed joist connections in residential, commercial, and industrial flooring systems.
- Engineered wood applications: Suitable for use with engineered wood joists.
Simpson Strong-Tie HSUL414 Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure joists are fully seated within the hanger before fastening.
- Secure the hanger to the supporting beam using all designated nail holes.
- Pre-drilling may be required for dense engineered wood to prevent splitting.
Simpson Strong-Tie HSUL414 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
| Height | 12-1/2" |
| Joist size | 4" X 14" |
| Type | Left Skewed |
| Fasteners required | Face - (26) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
