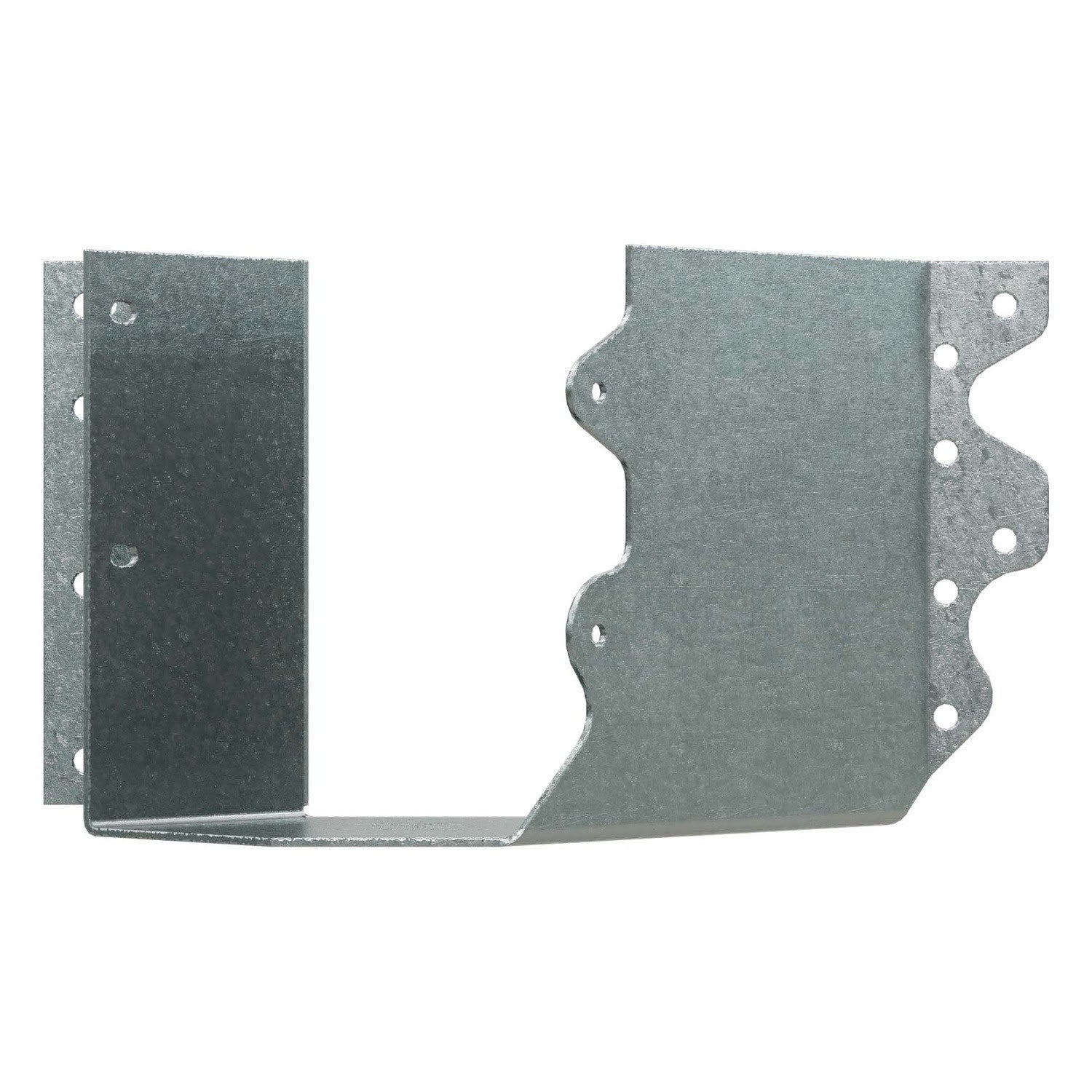

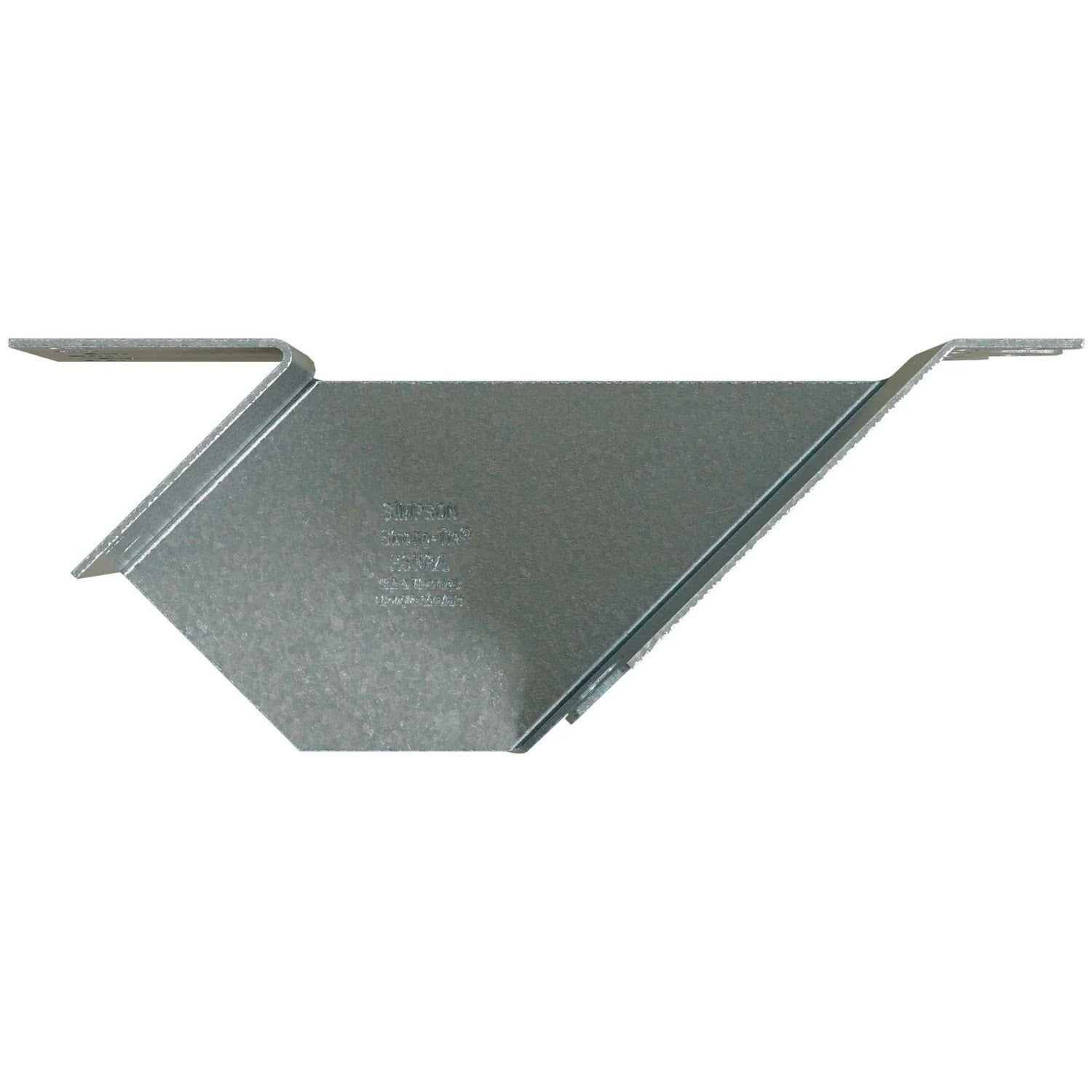

Simpson Strong-Tie HSUL46 Description

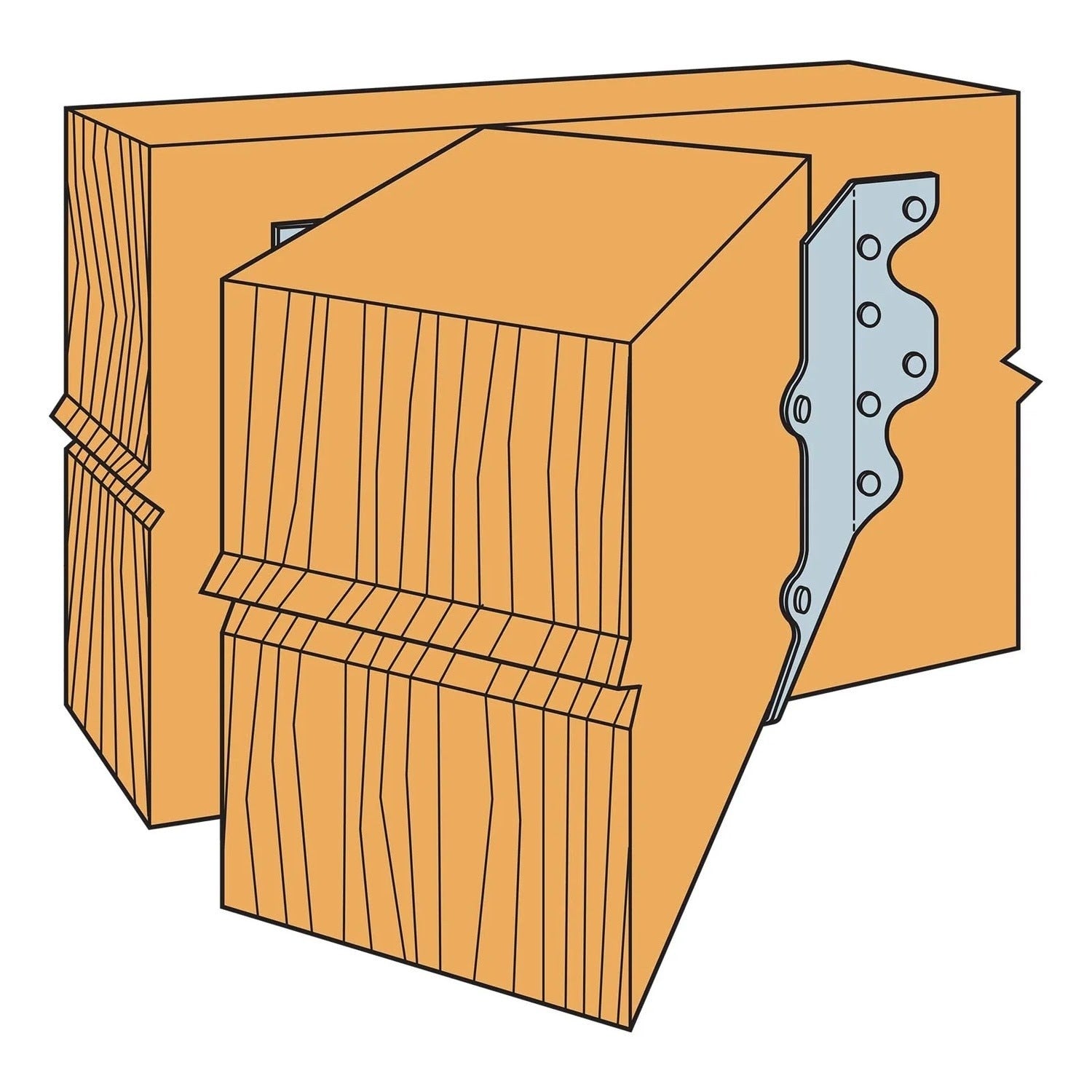

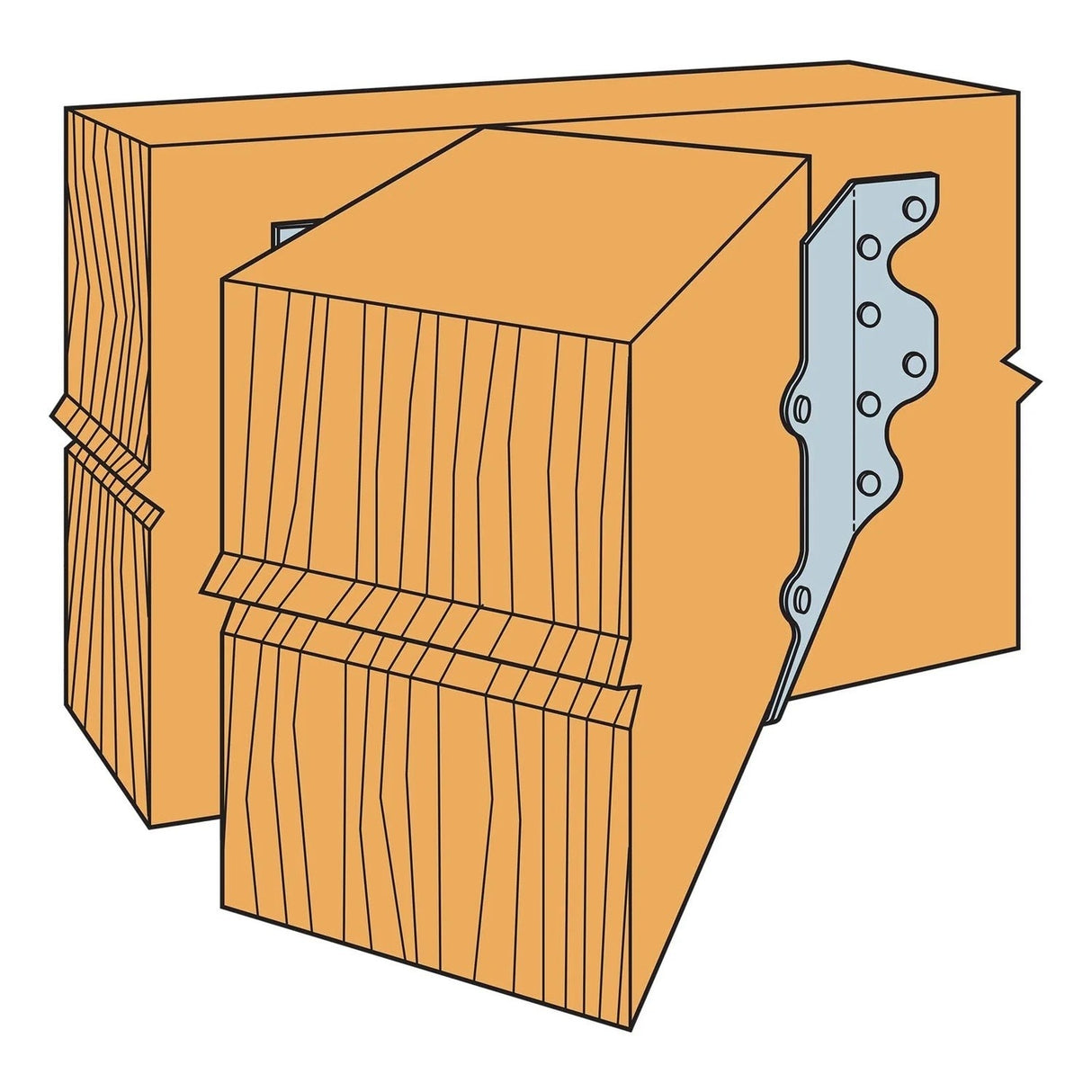

The HSUL46 Joist Hanger is designed for high-load applications, providing superior strength and durability for skewed wood-to-wood connections.
Simpson Strong-Tie HSUL46 Includes
- (1) HSUL46 Joist Hanger
Simpson Strong-Tie HSUL46 Features
- G90 Galvanized Steel for corrosion resistance

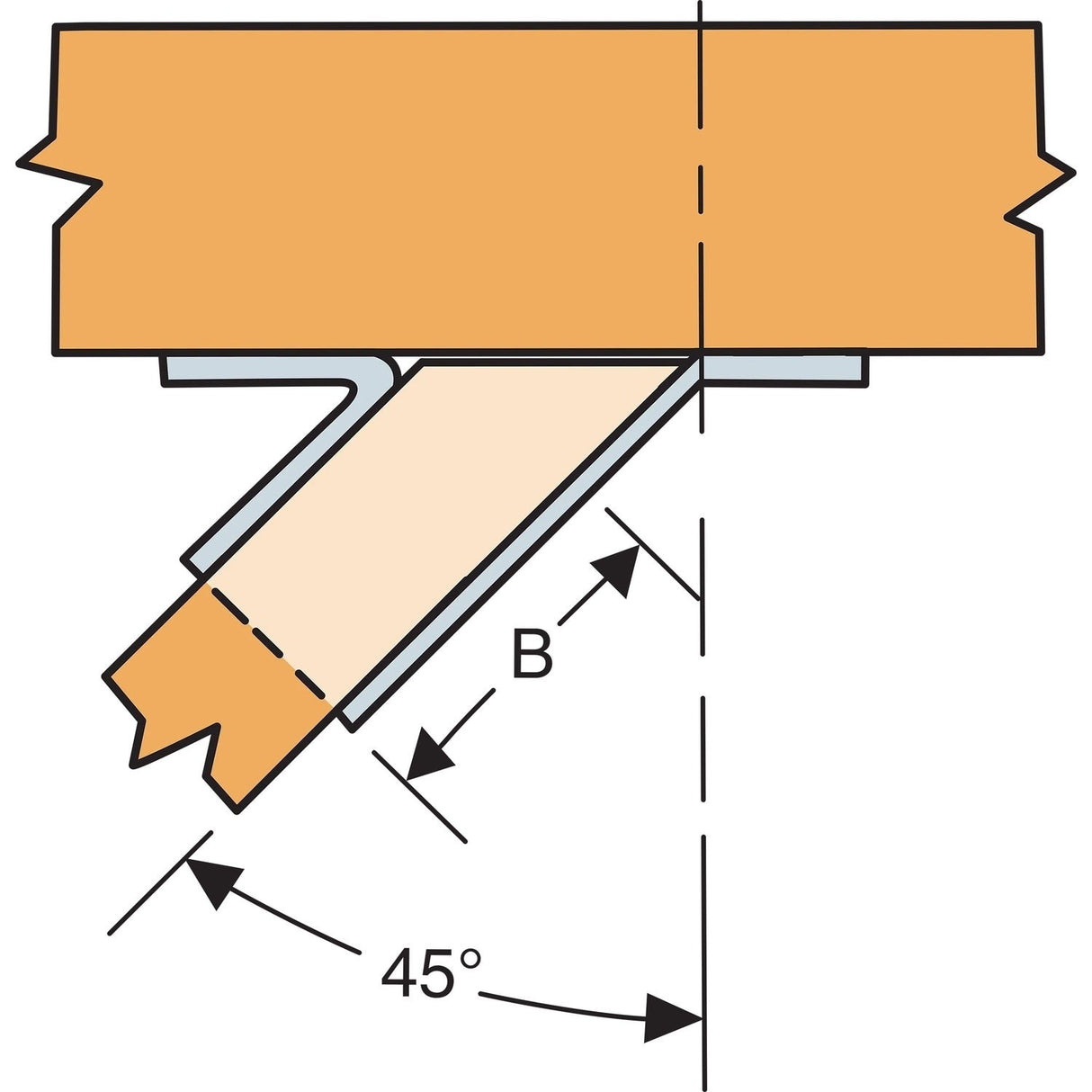

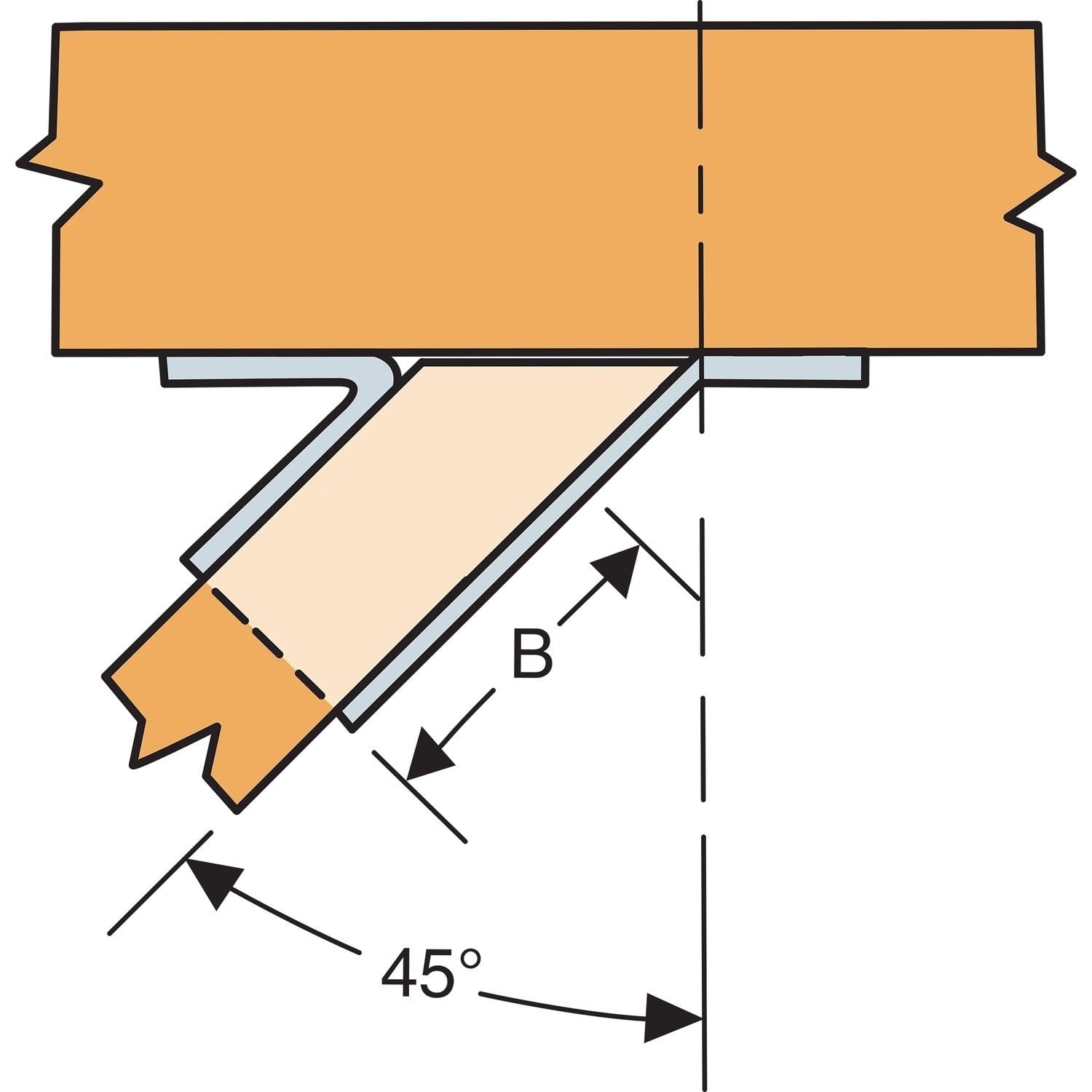

- 45-Degree Skew for angled joist-to-beam connections
- Heavy-Duty Load Capacity for demanding applications
- Reinforced U-Shaped Design for enhanced strength
- Compatible with solid sawn lumber and engineered wood joists
Simpson Strong-Tie HSUL46 Applications
- Deck Framing: Provides strong support for skewed joist connections in deck structures
- Outdoor Structures: Ideal for pergolas and other outdoor projects
- Residential Framing: Ensures stability in angled joist-to-beam connections
- Commercial Construction: Suitable for structural projects requiring high load capacity
Simpson Strong-Tie HSUL46 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joists are fully seated within the hanger before fastening
- Pre-drill when working with dense engineered wood to prevent splitting
- Secure the hanger to the supporting beam using all designated nail holes
Simpson Strong-Tie HSUL46 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (4) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 4-3/4" |
| Joist size | 4" X 6" |
| Thickness | 14 Gauge |
| Type | Left Skewed |
| Width | 3-9/16" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
