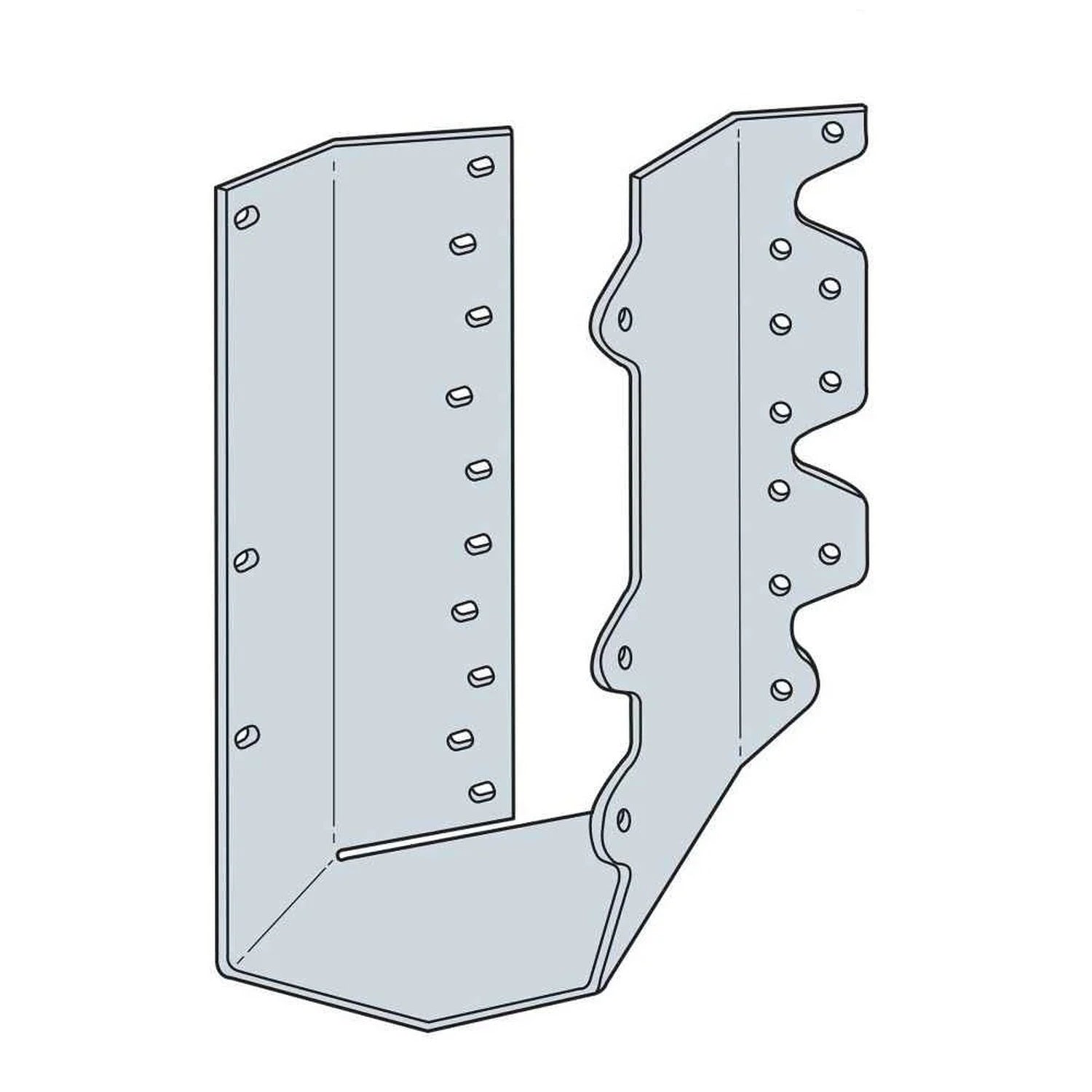

Simpson Strong-Tie HSULC410 Description
The HSULC Heavy Left-Skewed U-Shaped Joist Hanger is engineered for high-load applications requiring a 45-degree left-skewed connection. Designed to provide superior structural support, this G90 galvanized hanger is an excellent choice for indoor framing, general construction, and applications with moderate exposure to moisture.
Simpson Strong-Tie HSULC410 Includes
- (1) HSULC410 Joist Hanger
Simpson Strong-Tie HSULC410 Features
- G90 Galvanized Coating for moderate corrosion resistance
- 45-Degree Left Skew for angled wood-to-wood connections
- Heavy-Gauge Steel Construction for high-strength performance
- U-Shaped Design for secure and precise fit
- Compatible with Solid Sawn Lumber & Engineered Wood
Simpson Strong-Tie HSULC410 Applications
- Floor Joist Framing: Provides secure left-skewed connections in floor systems where angled support is required.
- Roof Rafter Installations: Ideal for connecting rafters to beams at a 45-degree angle in sloped roof designs.
- Load-Bearing Beam Connections: Enhances stability in angled beam-to-beam or joist-to-beam configurations.
- Engineered Wood Framing: Compatible with LVL, PSL, and other engineered wood products for precise framing applications.

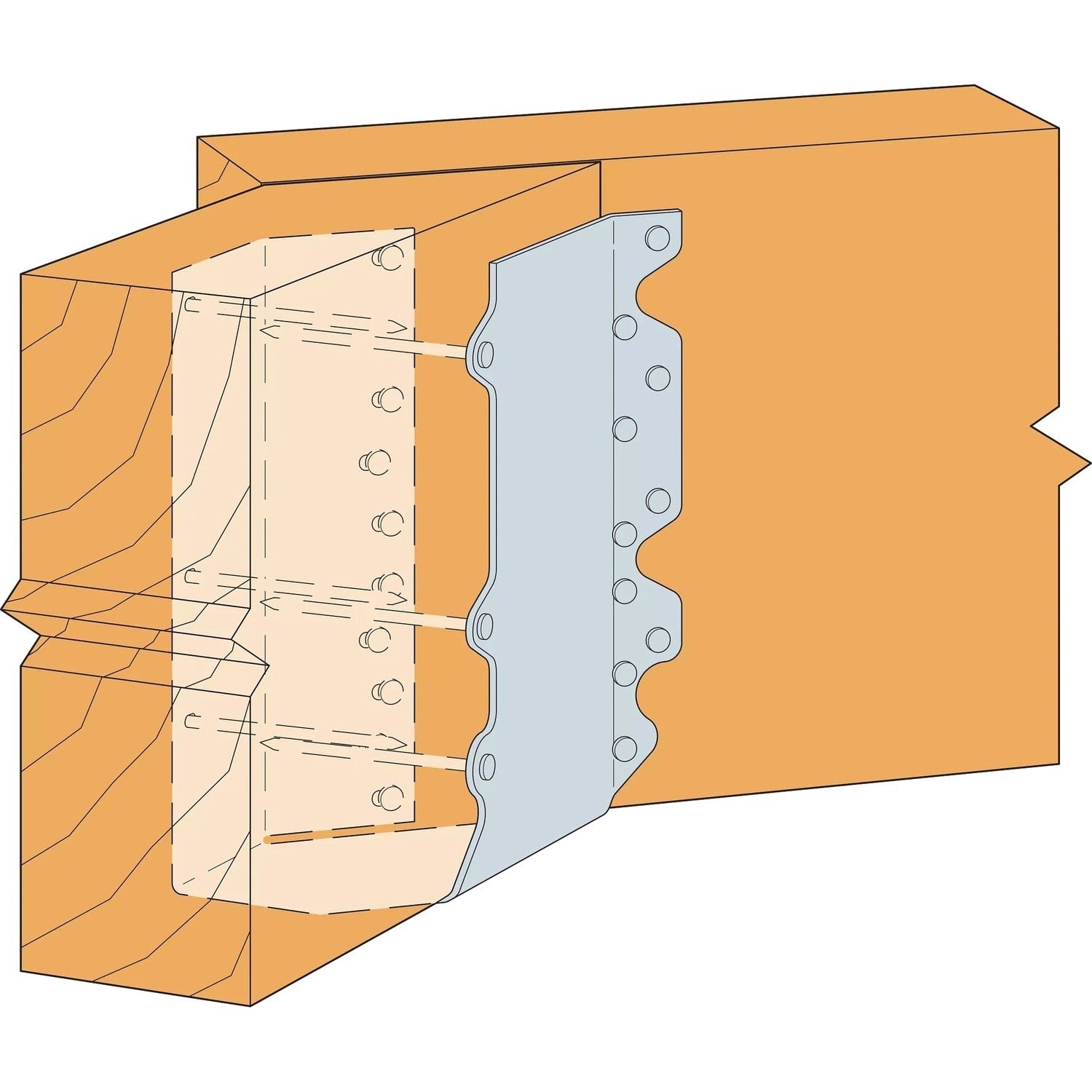

Simpson Strong-Tie HSULC410 Installation Overview
- Use specified Strong-Drive SDS Heavy-Duty Connector screws or nails for proper load distribution.
- Secure the hanger to the beam using all designated fastener holes.
- Ensure the joist is fully seated within the hanger.
- Pre-drill for dense engineered wood materials to prevent splitting and ensure a flush fit.
Simpson Strong-Tie HSULC410 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (20) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 8-1/2" |
| Joist size | 4" X 10" |
| Thickness | 14 Gauge |
| Type | Left Skewed |
| Width | 3-9/16" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values.
