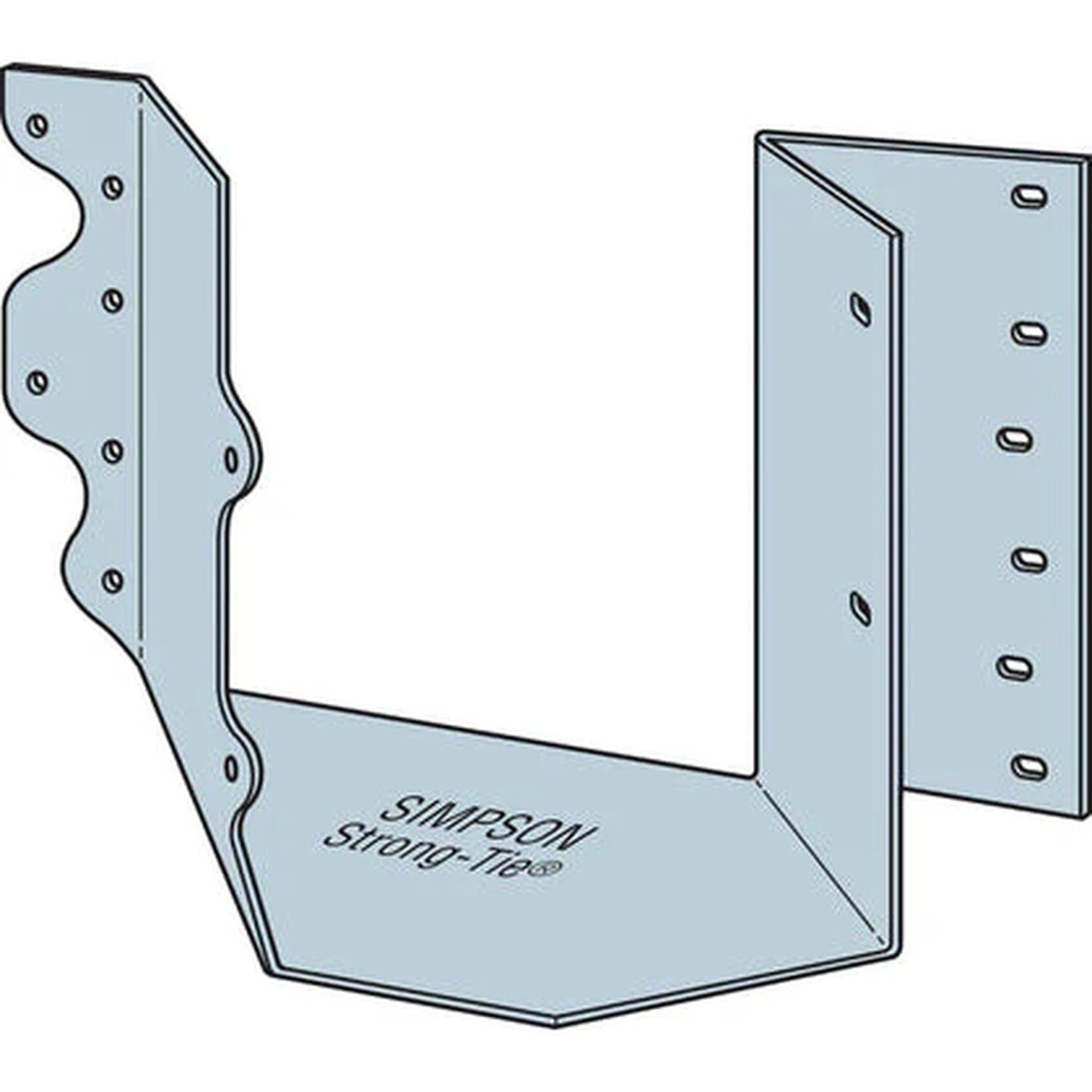

Simpson Strong-Tie HSUR26-2 Description
The Simpson Strong-Tie HSUR26-2 is a heavy-duty double joist hanger designed for right-skewed wood-to-wood connections, offering superior load-bearing capacity and corrosion resistance.
Simpson Strong-Tie HSUR26-2 Includes
- (1) Double Joist Hanger Skewed Right, Galvanized
Simpson Strong-Tie HSUR26-2 Features
- Heavy-duty load support for wood framing
- Right-skewed design for angled connections
- G90 galvanized finish for corrosion resistance
- Precision U-shaped seat for enhanced stability
- Compatible with nails or Simpson Strong-Drive SD Connector screws
Simpson Strong-Tie HSUR26-2 Applications
- Residential and commercial wood framing
- Angled joist and beam connections
- Decks, floors, and roof trusses
- Custom construction requiring non-standard framing angles
Simpson Strong-Tie HSUR26-2 Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure joist ends are square or bevel cut.
- Fill all nail holes with specified fasteners to achieve table loads.
- For I-joists with flanges less than 1 5/16", use web stiffeners for all double joist hangers.
Simpson Strong-Tie HSUR26-2 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 3-1/8" |
| Height | 4-15/16" |
| Joist size | Double 2" X 6" |
| Fasteners required | Face - (12) 0.162 x 3-1/2", Joist - (4) 0.162" x 2-1/2" Nails |
| For Treated Lumber | No |
Toolup Part # :
824898
