Simpson Strong-Tie HSUR410 Description

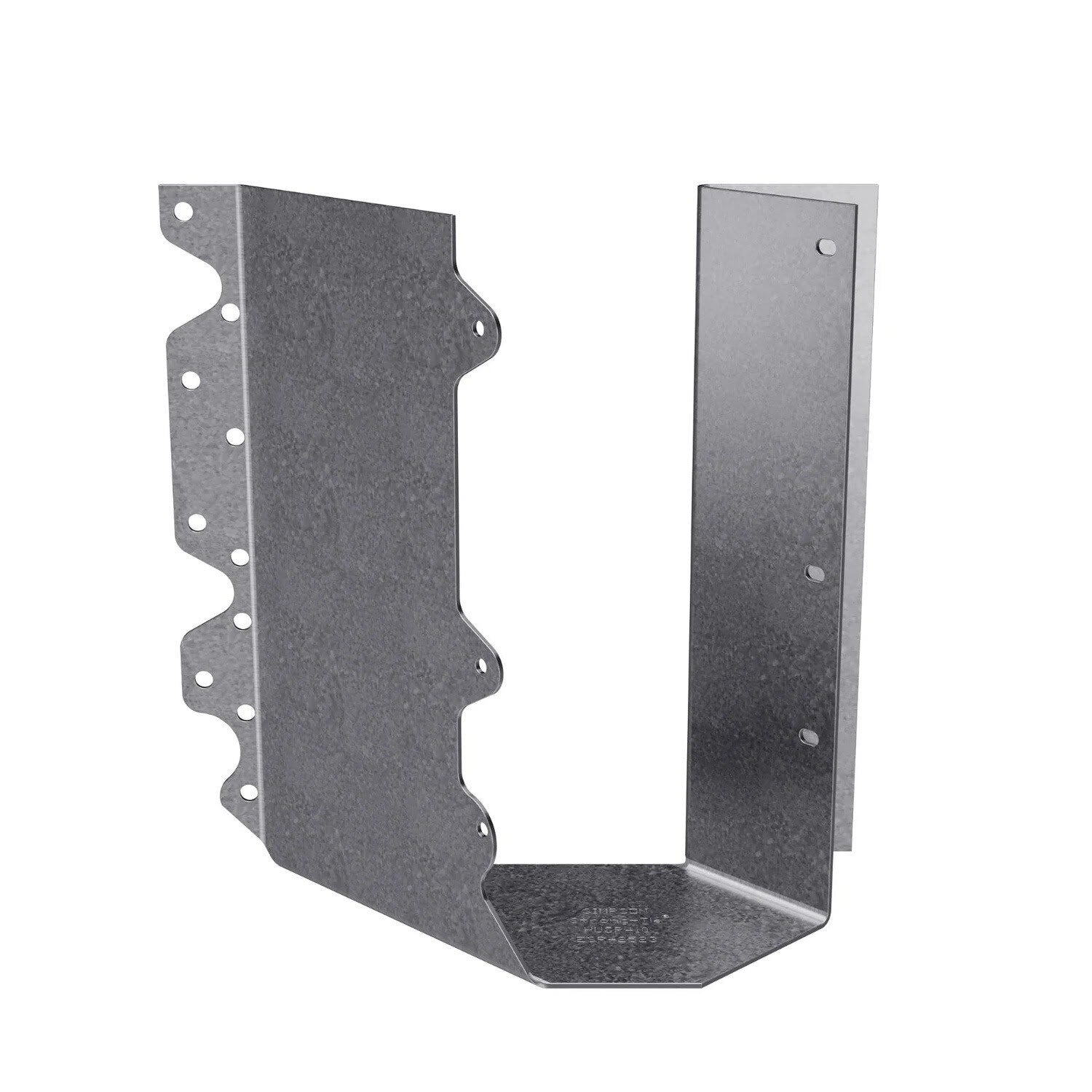

The Simpson Strong-Tie HSUR410 is a galvanized joist hanger designed for 4x10 lumber with a right skew, providing reliable support and corrosion resistance.
Simpson Strong-Tie HSUR410 Includes
- (1) HSUR410 Joist Hanger
Simpson Strong-Tie HSUR410 Features
- Heavy-duty load support for angled wood-to-wood connections
- Right skewed design for specific framing needs
- G90 galvanized finish for corrosion resistance
- Precision U-shaped seat for enhanced stability and load distribution
- Compatible with nails or Simpson Strong-Drive SD Connector screws
Simpson Strong-Tie HSUR410 Applications
- Residential and commercial wood framing
- Angled joist and beam connections
- Decks, floors, and roof trusses
- Custom construction requiring non-standard framing angles
Simpson Strong-Tie HSUR410 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist ends are square or bevel cut
- Fill all nail holes with specified fasteners to achieve table loads
- For I-joists with flanges less than 1 5/16", use web stiffeners for all double joist hangers
Simpson Strong-Tie HSUR410 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
| Height | 8-1/2" |
| Joist size | 4" X 10" |
| Type | Right Skewed |
| Fasteners required | Face - (20) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
