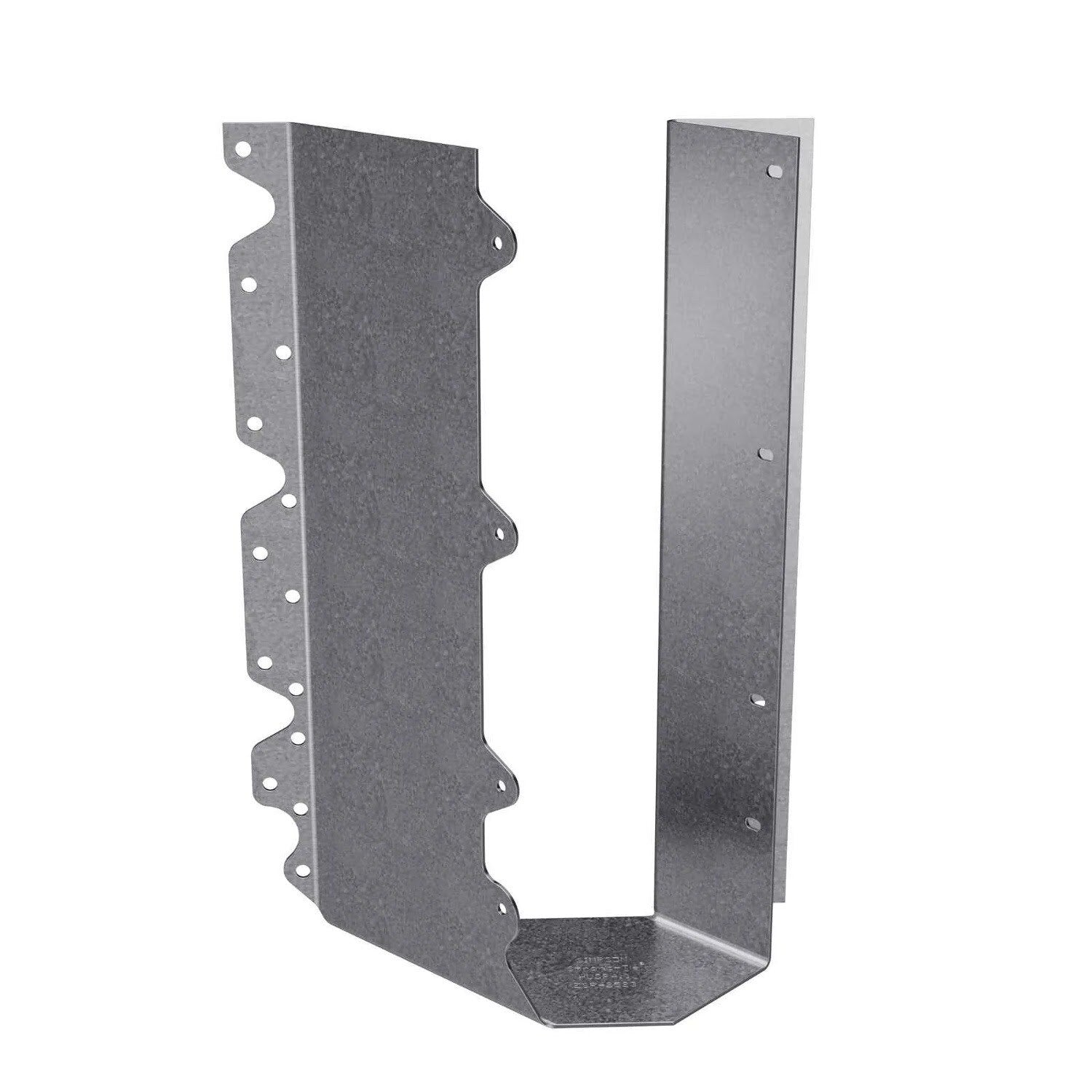

Simpson Strong-Tie HSUR414 (4x14) Galvanized Joist Hanger, Skewed Right
Description
Description
Simpson Strong-Tie HSUR414 Description
The Simpson Strong-Tie HSUR414 is a heavy-duty right-skewed joist hanger designed for angled wood-to-wood connections, providing superior load-bearing capacity and corrosion resistance.
Simpson Strong-Tie HSUR414 Includes
- (1) HSUR414 Joist Hanger
Simpson Strong-Tie HSUR414 Features
- Heavy-duty load support for angled wood-to-wood connections
- Right-skewed design for specific framing needs
- G90 galvanized finish for corrosion resistance
- Precision U-shaped seat for enhanced stability and load distribution
- Compatible with nails or Simpson Strong-Drive SD Connector screws
Simpson Strong-Tie HSUR414 Applications
- Residential and commercial wood framing
- Angled joist and beam connections
- Decks, floors, and roof trusses
- Custom construction requiring non-standard framing angles
Simpson Strong-Tie HSUR414 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure joist ends are square or bevel cut
- Fill all nail holes with specified fasteners to achieve table loads
- For I-joists with flanges less than 1 5/16", use web stiffeners for all double joist hangers
Simpson Strong-Tie HSUR414 Specifications
Finish | G90 Galvanized |
Material | Carbon Steel |
Fasteners required | Face - (26) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
For Treated Lumber | No |
Height | 12-1/2" |
Joist size | 4" X 14" |
Thickness | 14 Gauge |
Type | Right Skewed |
Width | 3-9/16" |
