Simpson Strong-Tie HSUR46 (4x6) Joist Hanger Skewed Right - Galvanized
$38.64
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HSUR46 Description

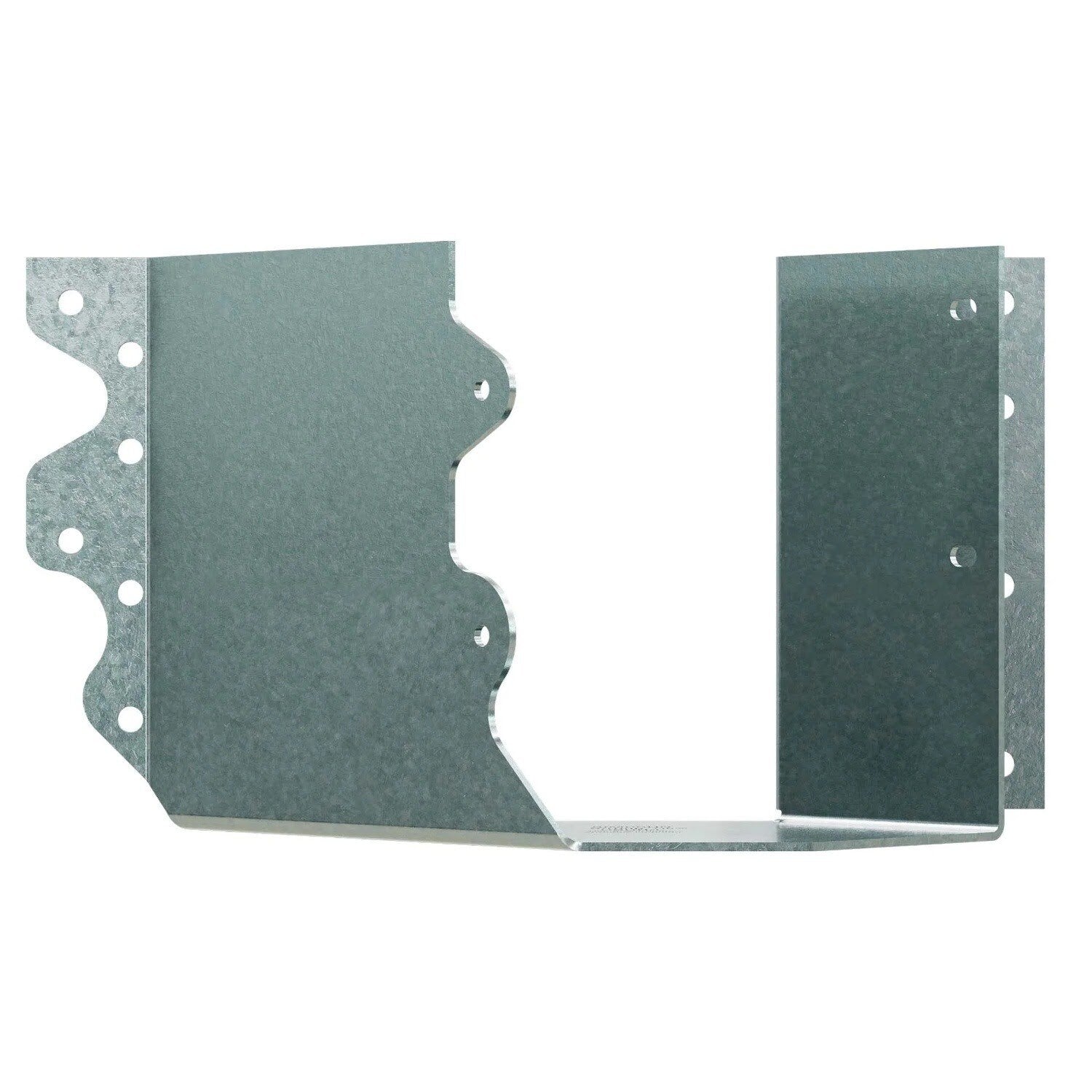

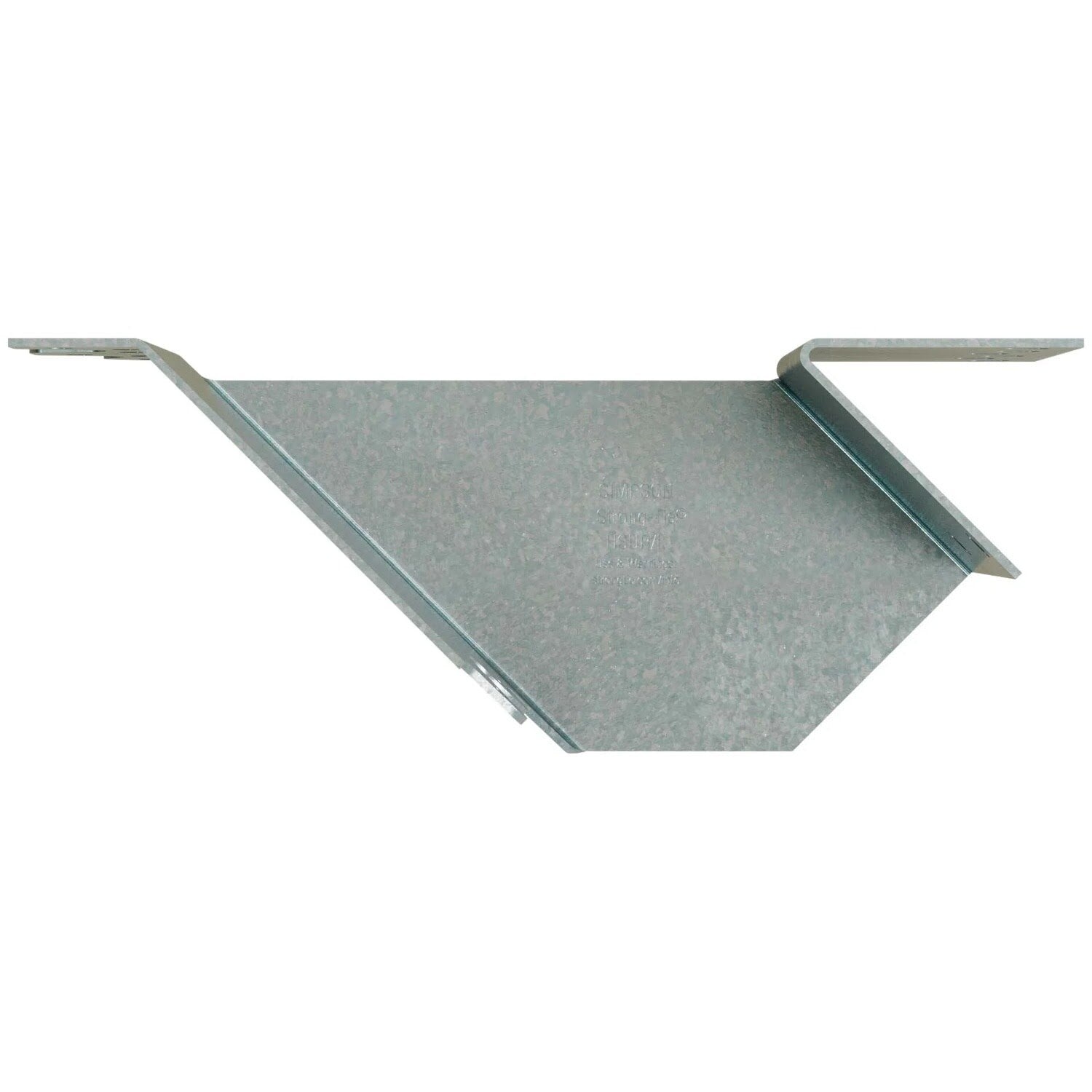

The Simpson Strong-Tie HSUR46 is a heavy-duty right-skewed joist hanger designed for angled wood-to-wood connections, featuring a G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie HSUR46 Includes
- (1) HSUR46 Joist Hanger
Simpson Strong-Tie HSUR46 Features
- Heavy-duty load support for high-capacity applications

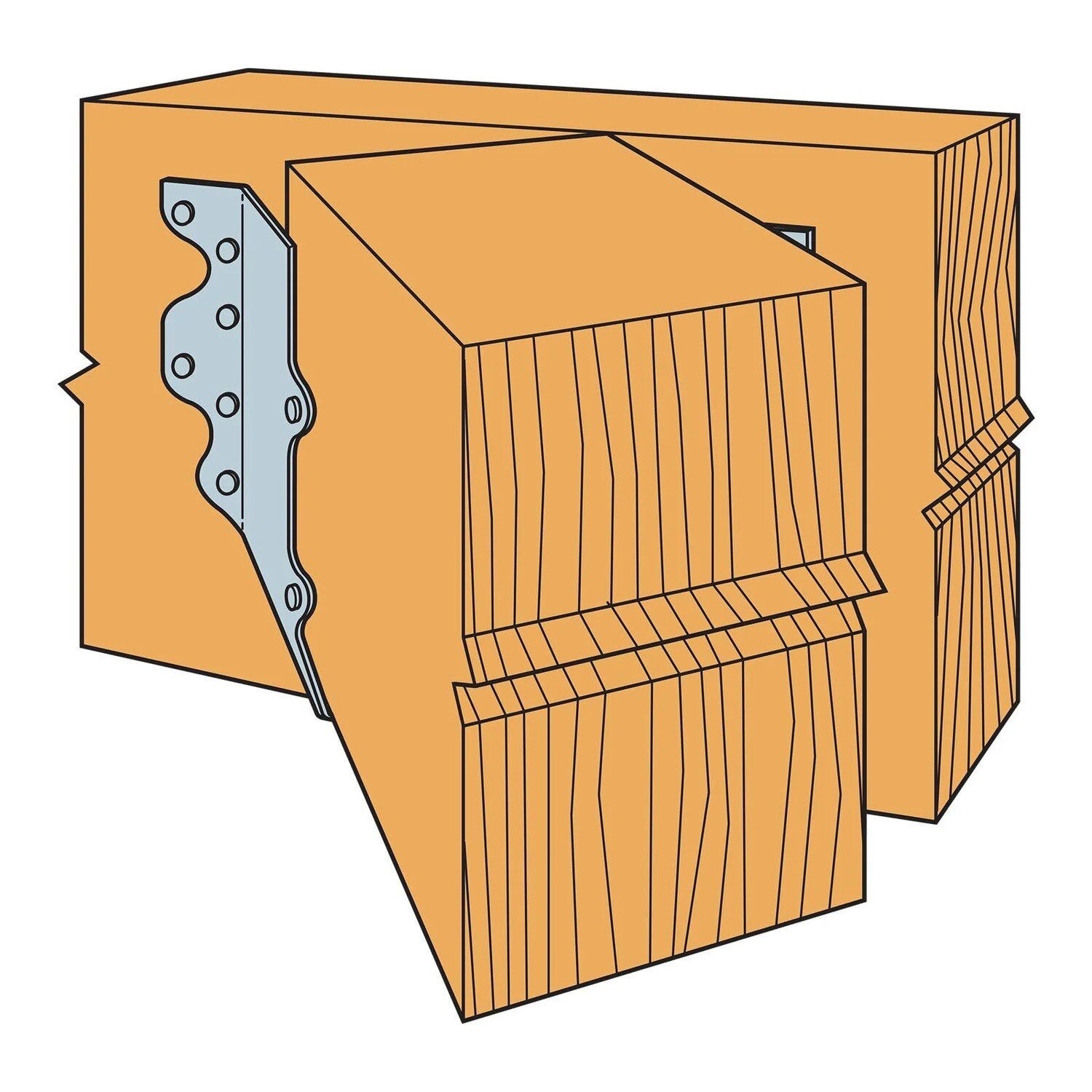

- Right-skewed design for angled joist-to-beam connections
- G90 galvanized finish for corrosion resistance
- Precision U-shaped seat for enhanced stability and load distribution
- Compatible with nails or Simpson Strong-Drive SD Connector screws
Simpson Strong-Tie HSUR46 Applications
- Residential and commercial wood framing
- Angled joist and beam connections
- Decks, floors, and roof trusses
- Custom construction requiring non-standard framing angles
Simpson Strong-Tie HSUR46 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (4) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 4-3/4" |
| Joist size | 4" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 14 Gauge |
| Type | Right Skewed |
| Width | 3-9/16" |
