Simpson Hangers | SKU:
HSURC410

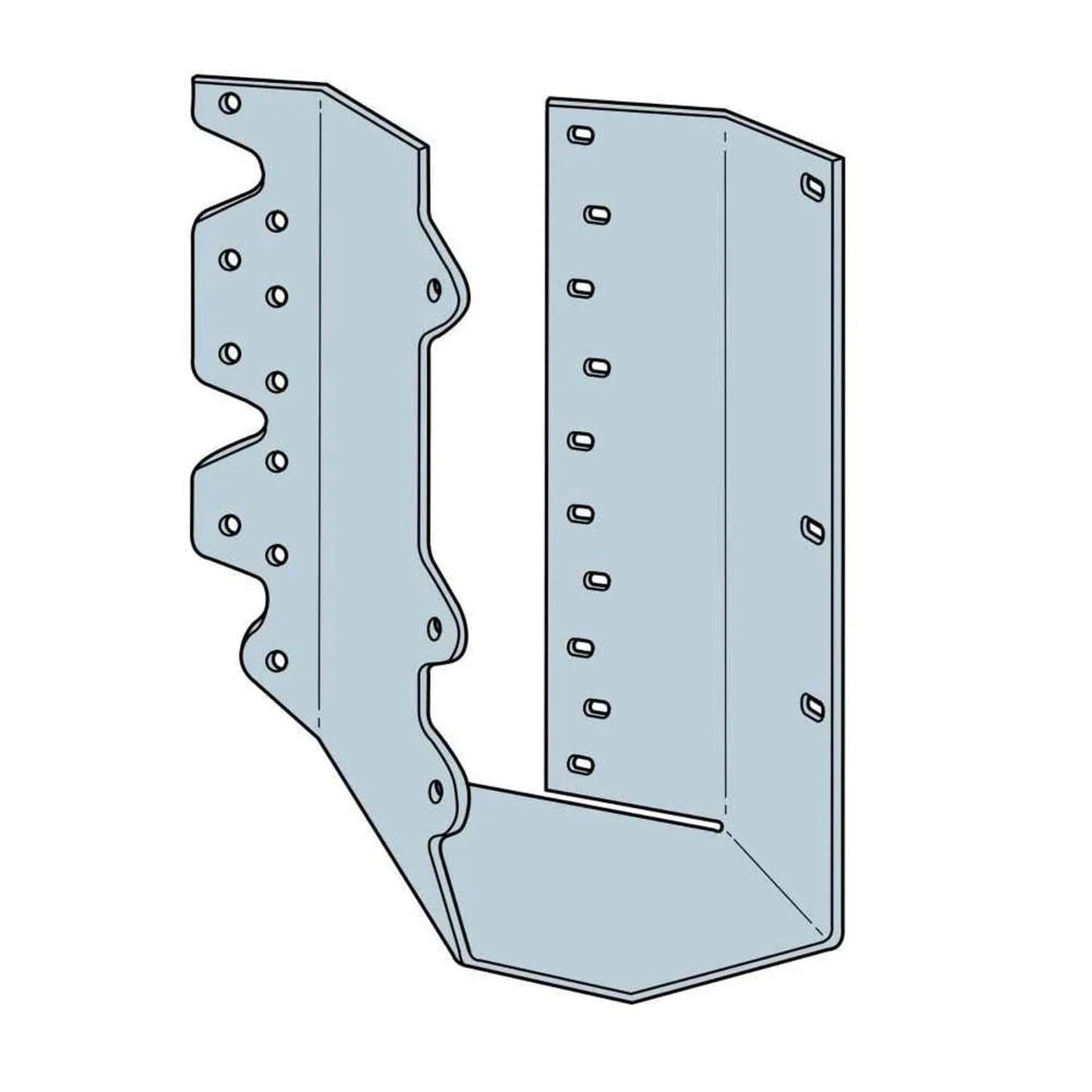

Simpson Strong-Tie HSURC410 (4" x 10") Concealed Flange Joist Hanger Skewed Right G90 Galvanized
$48.14
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HSURC410 Description
The Simpson HSURC410 is a heavy-duty, right-skewed joist hanger designed for angled wood connections, offering exceptional load-bearing capacity and corrosion resistance.
Simpson Strong-Tie HSURC410 Includes
- (1) 4x10 Concealed Flange Joist Hanger
Simpson Strong-Tie HSURC410 Features
- G90 Galvanized Coating for corrosion resistance
- 45-Degree Right Skew for angled wood-to-wood connections
- Heavy-Gauge Steel for high-load applications
- Reinforced U-Shaped Design for improved load distribution
- Compatible with solid sawn lumber and engineered wood
Simpson Strong-Tie HSURC410 Applications
- Roof Framing: Ideal for hip, valley, and rafter connections requiring a right-skewed design.
- Floor Joist Connections: Provides a secure, skewed joist-to-beam attachment in residential and commercial flooring systems.
- Deck & Porch Construction: Supports angled joists in decks, patios, and pergolas.
- Engineered Wood & Structural Framing: Designed to work with LVL, PSL, and other engineered wood products.

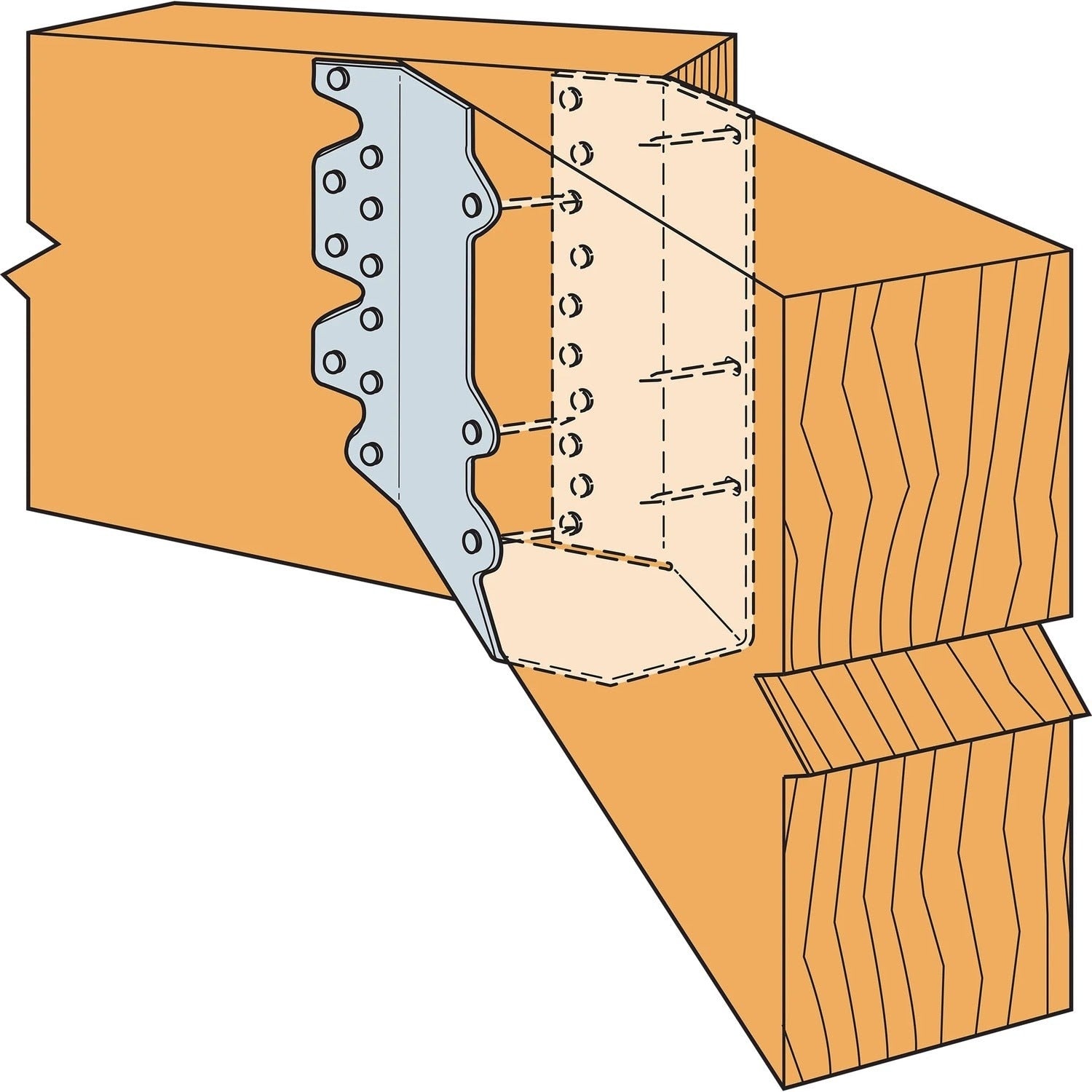

Simpson Strong-Tie HSURC410 Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure the joist end is square or bevel cut.
- Fill all nail holes with specified fasteners for optimal load distribution.
- Secure the hanger to the beam using all pre-punched fastener holes.
- Ensure the joist is fully seated within the hanger for a snug fit.
Simpson Strong-Tie HSURC410 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (20) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 8-1/2" |
| Joist size | 4" X 10" |
| Thickness | 14 Gauge |
| Type | Right Skewed |
| Width | 3-9/16" |
NOTE: This item is made to order with varied lead times. Please contact the supplier for exact lead times.
