Description
Description

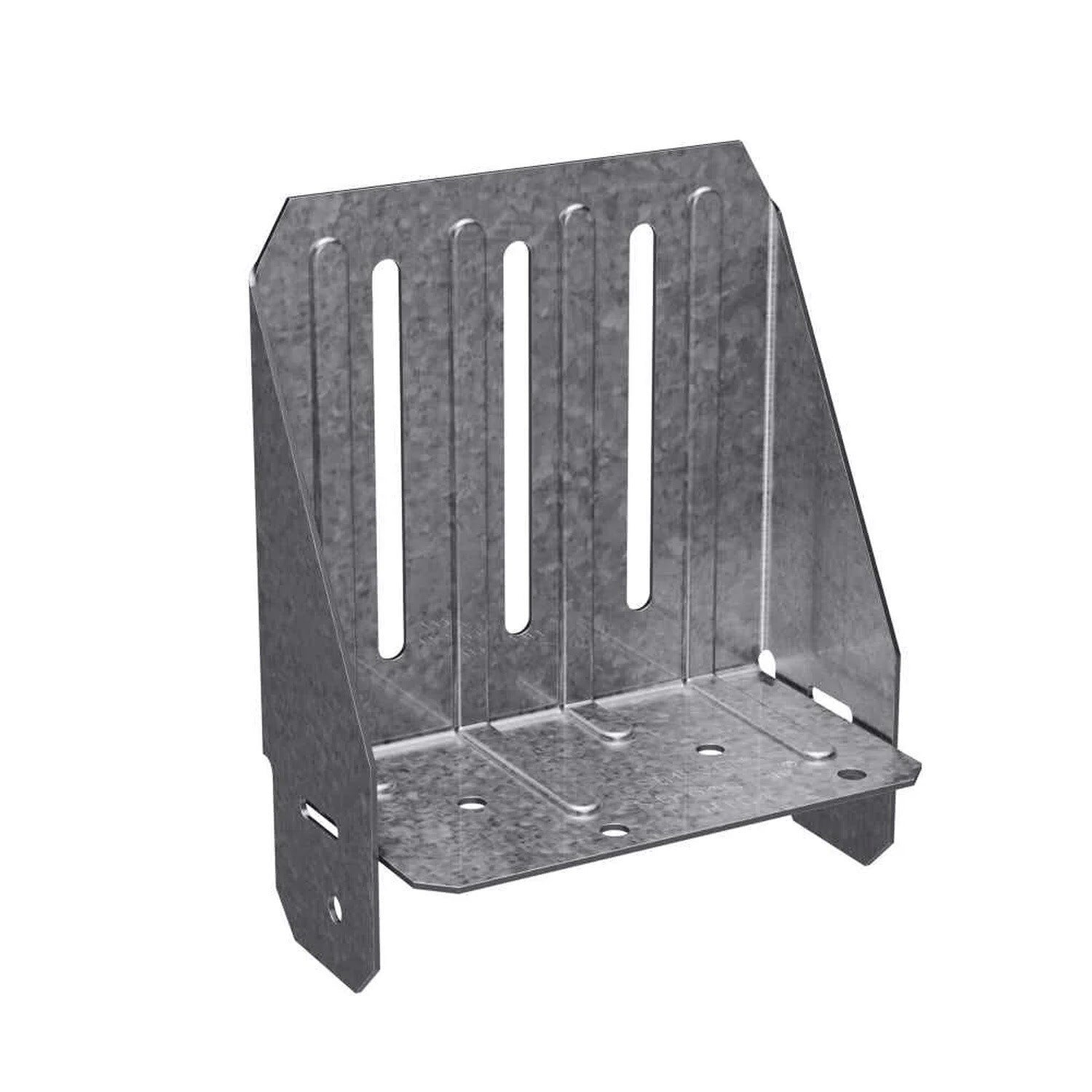

Simpson HTC4 Description
The Simpson HTC4 Heavy Truss Clip is designed for roof truss alignment control, allowing vertical truss chord movement under load.
Simpson HTC4 Includes
- (1) Heavy Truss Clip
Simpson HTC4 Features
- Alignment control between roof truss and nonbearing walls
- 2-1/2" opening for vertical truss chord movement
- Durable 18-gauge construction
- G90 Galvanized finish for corrosion resistance
Simpson HTC4 Applications
- Roof truss alignment control
- Nonbearing wall support
Simpson HTC4 Installation Overview
- Position the clip between the roof truss and the nonbearing wall.
- Secure the base using (6) 0.148" x 3" nails.
- Attach the slot using (3) 0.148" x 3" nails.
- Ensure proper alignment and fastening for optimal performance.
Simpson HTC4 Specifications
| Weight | 0.3 lb |
| Material | 18 Gauge Steel |
| Finish | G90 Galvanized |
| Fasteners Required | Base - (6) 0.148" x 3" Nails, Slot - (3) 0.148" x 3" Nails |
NOTE: Ensure proper installation of fasteners to achieve specified load values
Toolup Part # :
823562
