Simpson Anchors | SKU:
HTS20Z
Simpson Strong-Tie HTS20Z (20 in.) 14 Gauge Heavy Twist Strap - ZMAX Finish
$4.09
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HTS20Z Description

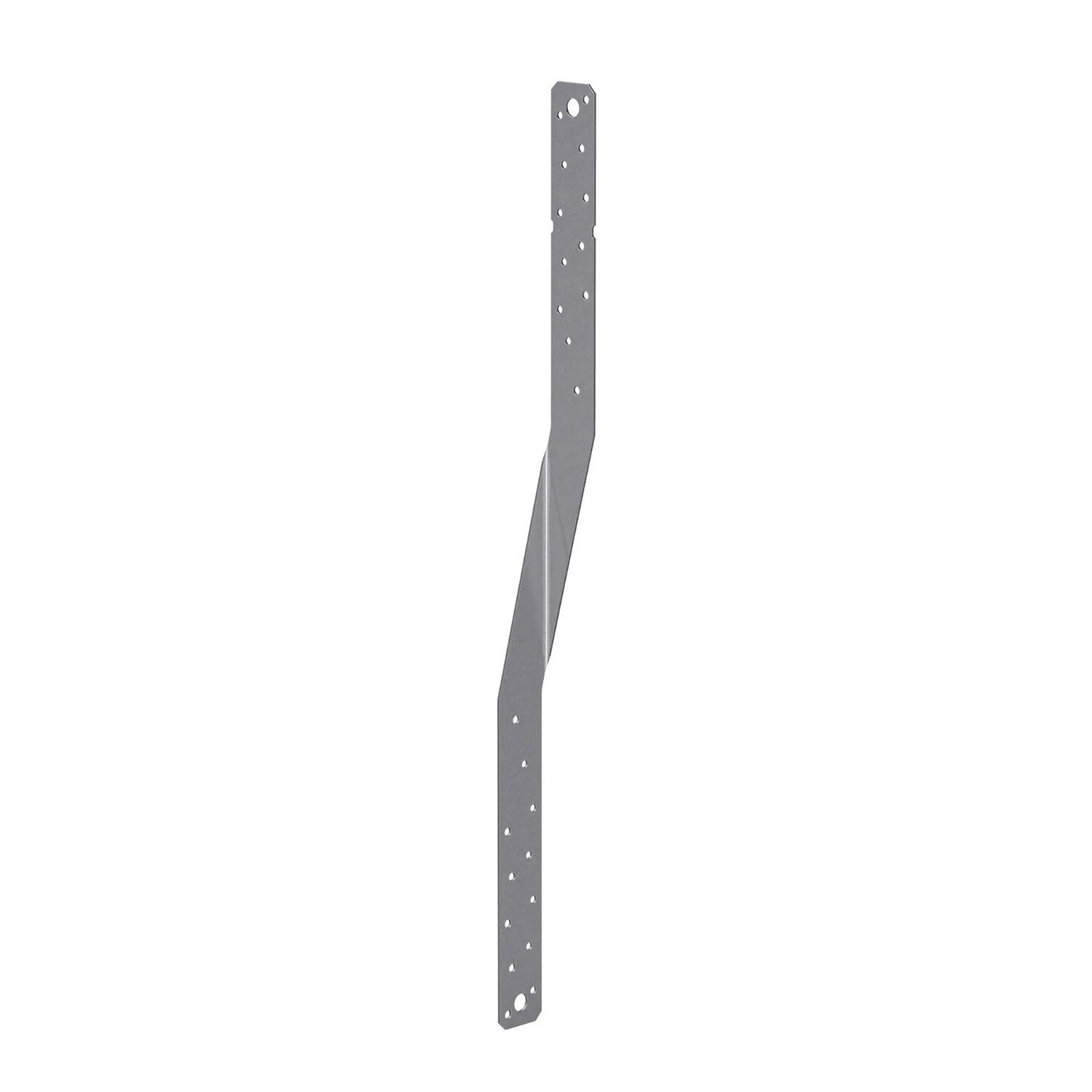

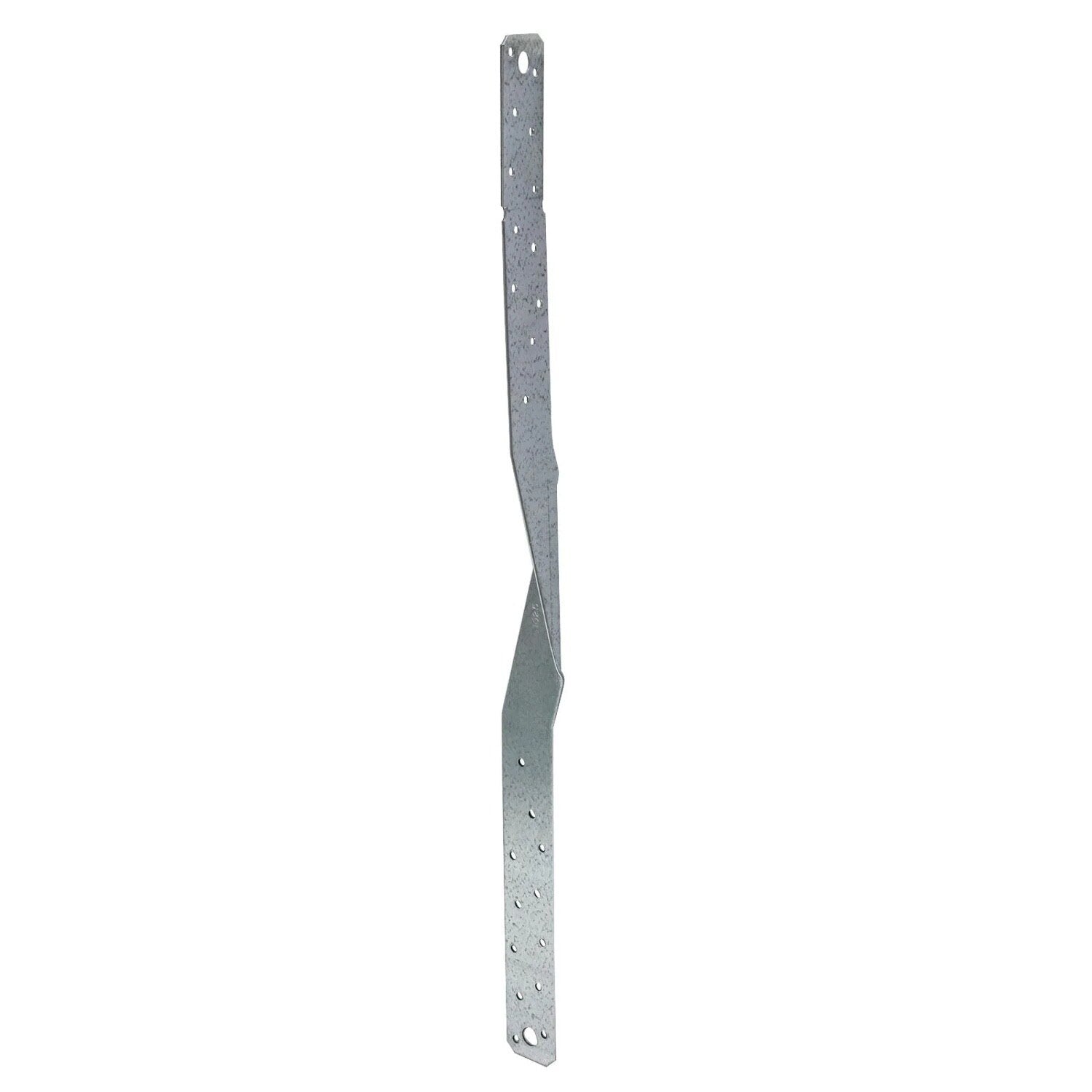

The HTS20Z Heavy Twist Strap by Simpson Strong-Tie provides a tension connection between two wood members, resisting uplift at the heel of a truss economically.
Simpson Strong-Tie HTS20Z Includes
- (1) Heavy Twist Strap ZMAX Finish
Simpson Strong-Tie HTS20Z Features
- Provides a tension connection between two wood members
- Resists uplift at the heel of a truss economically
- Features a 3-3/4" bend section to eliminate interference at transition points
- G185 ZMAX galvanized finish for added corrosion resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie HTS20Z Applications
- Securing wood members in construction
- Resisting uplift at truss heels
- Providing tension connections in wood structures
Simpson Strong-Tie HTS20Z Installation Overview
- Ensure the correct fasteners are used as specified
- Position the strap tie at the required location
- Secure the strap tie using hot-dip galvanized fasteners
Simpson Strong-Tie HTS20Z Specifications
| Length | 20" |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
