Simpson Anchors | SKU:
HTS24

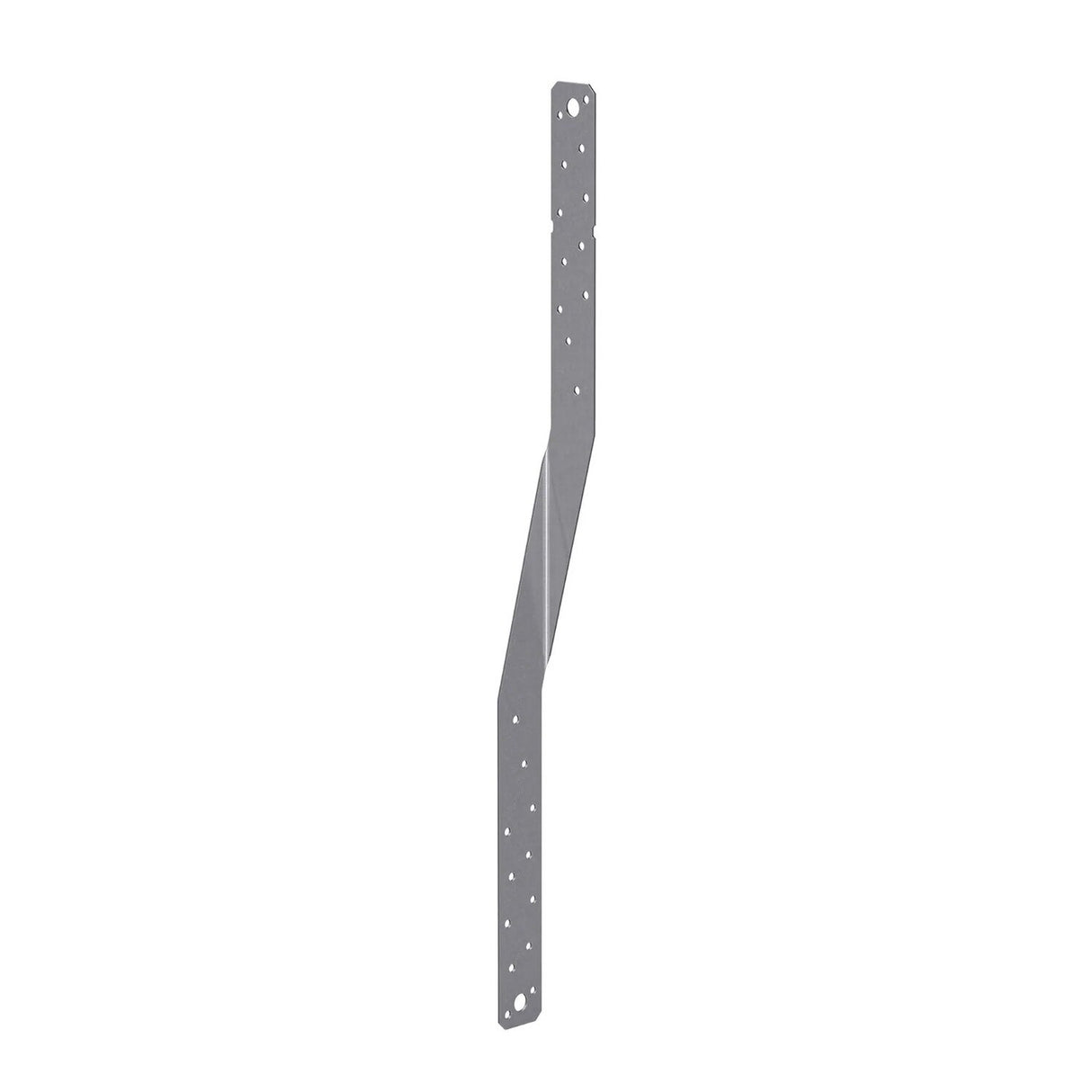

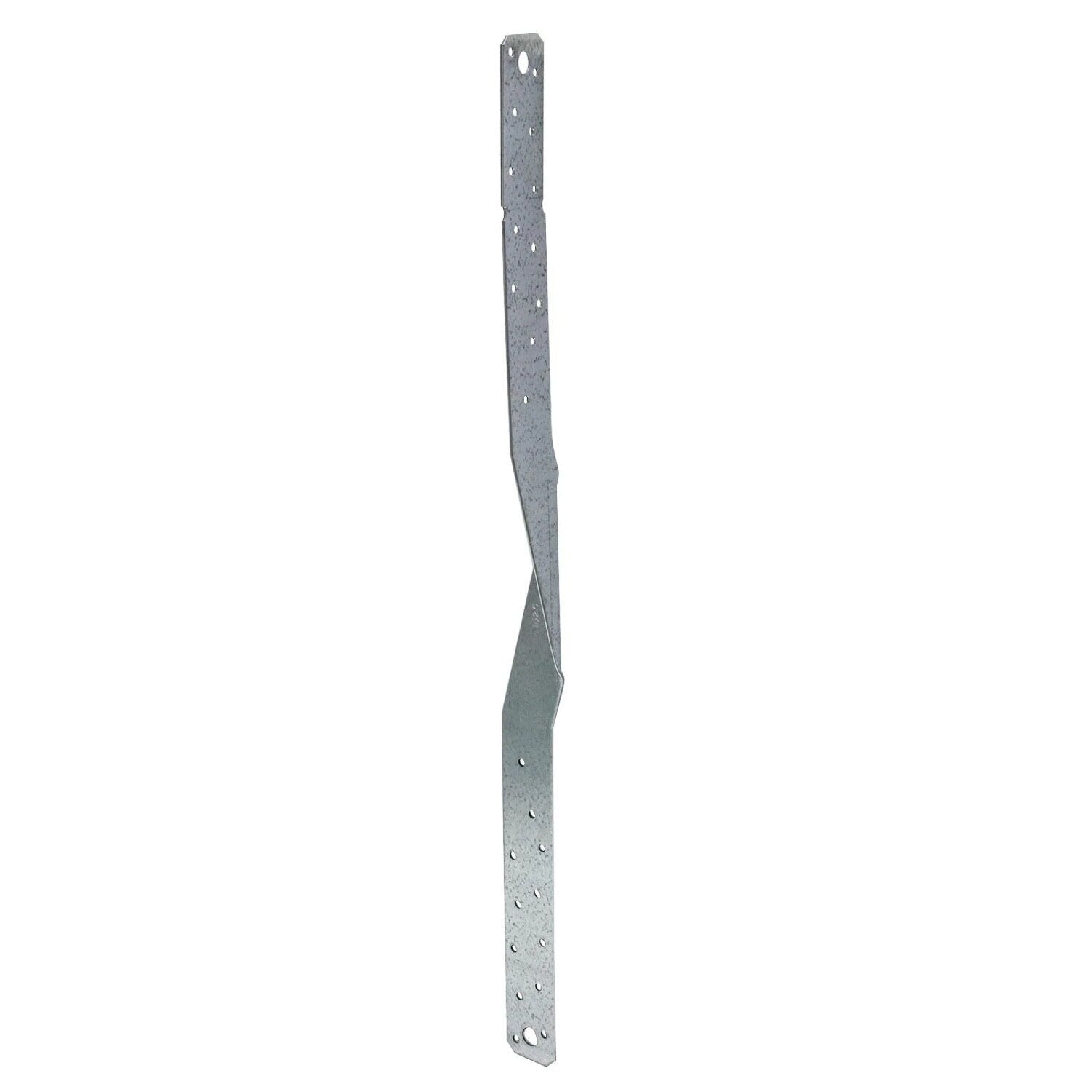

Simpson Strong-Tie HTS24 (24") 14 Gauge Heavy Twist Strap for Wood Construction - G90 Galvanized
$3.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HTS24 Description
The HTS24 Heavy Twist Strap by Simpson Strong-Tie provides a tension connection between two wood members, featuring a G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie HTS24 Includes
- (1) HTS24 Heavy Twist Strap
Simpson Strong-Tie HTS24 Features
- Available with the bend reversed
- Straps do not need to be wrapped over the truss to achieve the allowable load
- Versatile with many lengths offered to fit the specific application
Simpson Strong-Tie HTS24 Applications
- High-Wind Construction: Provides tension connection between wood members to resist uplift at the heel of a truss.
Simpson Strong-Tie HTS24 Installation Overview
- Use all specified fasteners, with half into each member being connected, to achieve the listed loads.
- Available with the bend reversed. Specify "-REV" after the model number, such as HTS16-REV.
Simpson Strong-Tie HTS24 Specifications
| Material | 14 gauge |
| Finish | G90 Galvanized |
| Length | 24" |
| Weight | 0.6 lb |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
