Simpson Anchors | SKU:
HTT4HDG

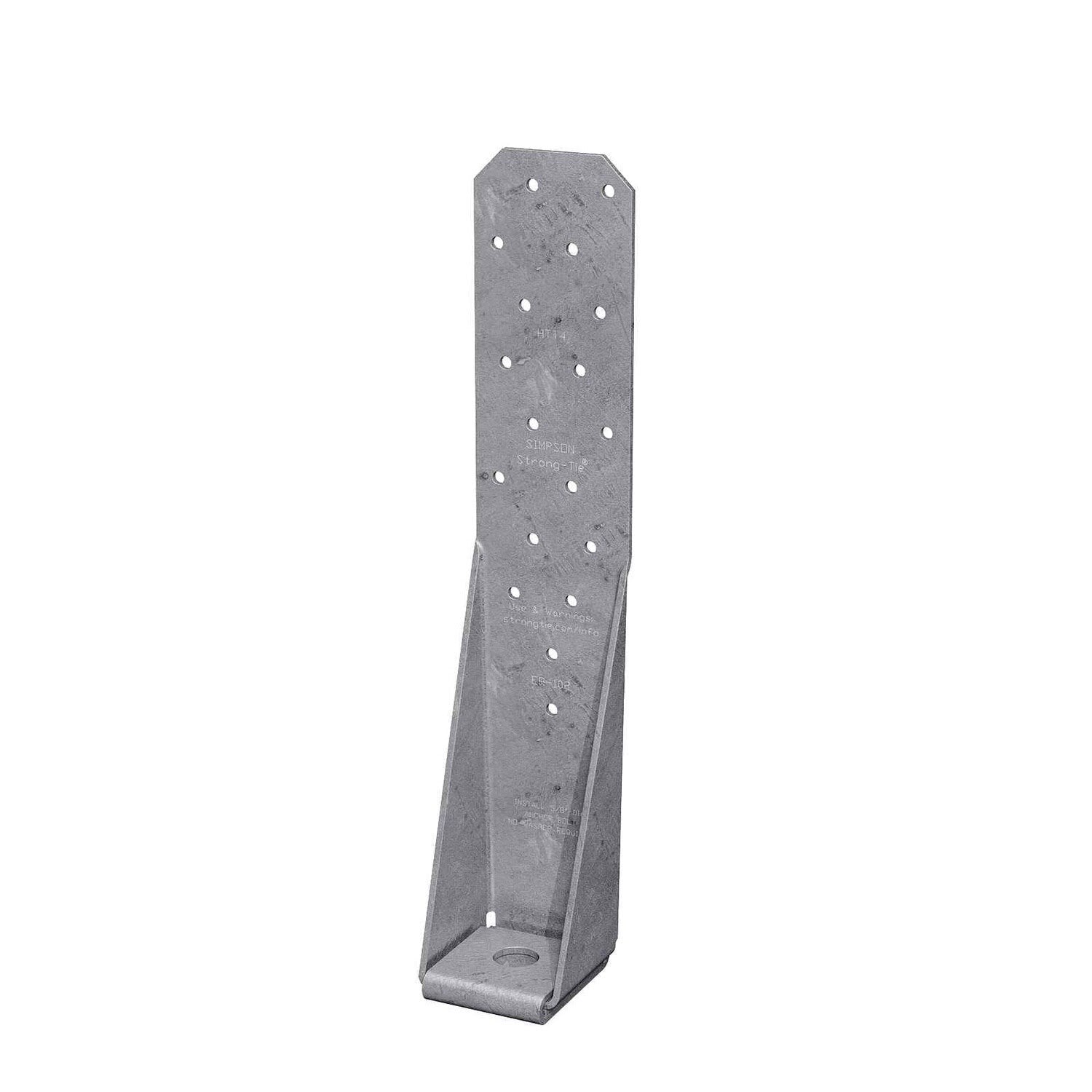

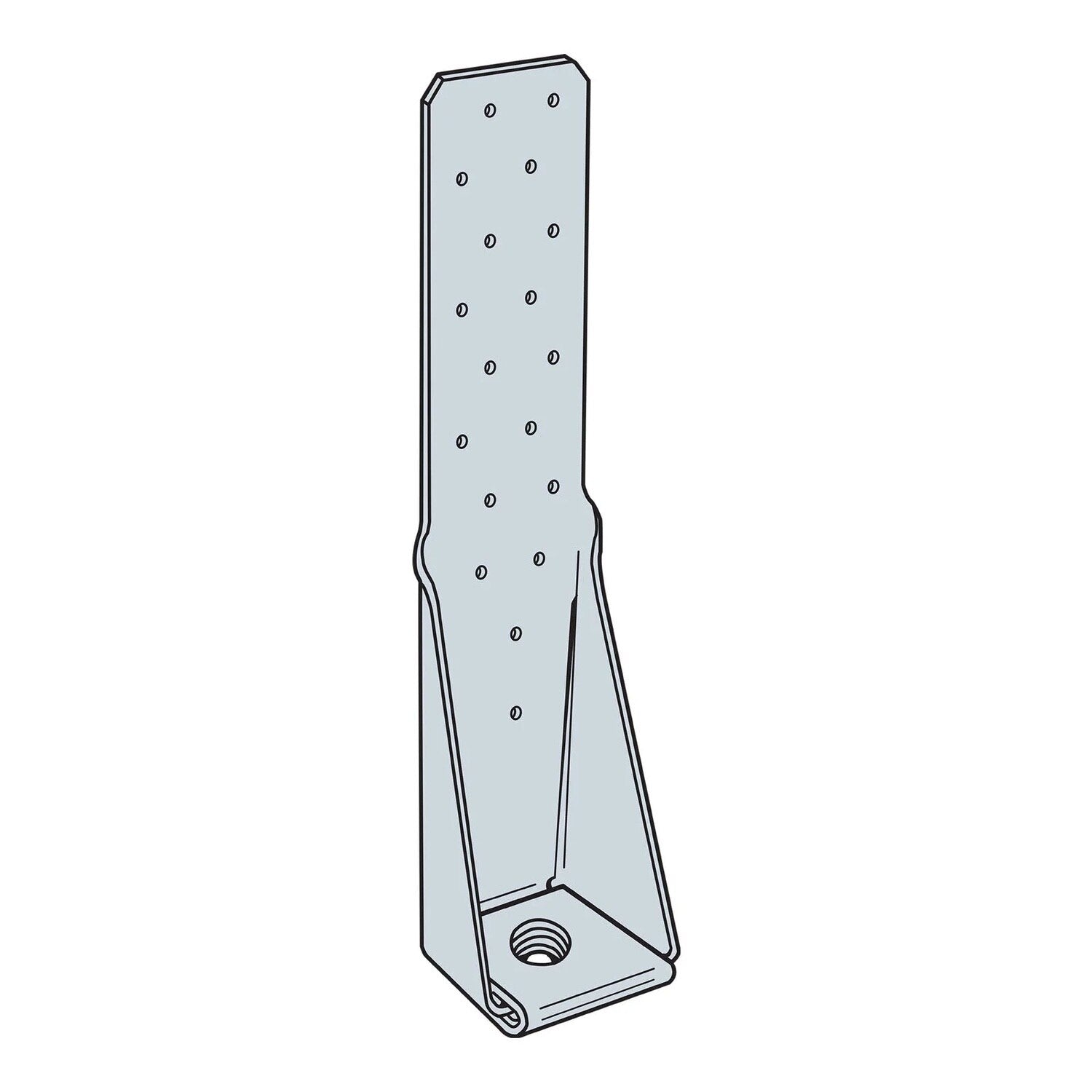

Simpson Strong-Tie HTT4HDG (12-3/8") Heavy Tension Tie Hot-Dip Galvanized for Wood-to-Concrete Connections
$40.84
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HTT4HDG Description
The HTT4HDG Heavy Tension Tie is a robust solution for resisting high tension loads in wood-to-concrete connections, ideal for both residential and light-frame commercial buildings.
Simpson Strong-Tie HTT4HDG Includes
- (1) Heavy Tension Tie
Simpson Strong-Tie HTT4HDG Features
- High Load Capacity: Achieves allowable loads up to 7,650 lbs when installed with Strong-Drive SD Connector screws.
- Optimized Design: Features a four-fold seat and tapered base to reduce deflection and enhance strength.
- Versatile Installation: Compatible with standard pneumatic nail sizes and Strong-Drive SD Connector screws.
- Durable Construction: Made from 10-gauge galvanized steel for corrosion resistance.
Simpson Strong-Tie HTT4HDG Applications
- Wood-to-concrete connections in residential buildings.
- Light-frame commercial construction requiring high tension resistance.
Simpson Strong-Tie HTT4HDG Installation Overview
- Install with 0.148" x 2 1/2" or 0.162" x 2 1/2" nails, or #10 x 2 1/2" Strong-Drive SD Connector screws.
- Use a 5/8" diameter anchor bolt and one standard 3/4" cut washer (not included).
- Ensure wood member sizes are at least 3" x 3 1/2".
Simpson Strong-Tie HTT4HDG Specifications
| Finish | Hot Dip Galvanized |
| Length | 12-3/8" |
| Material | Galvanized Steel |
| Thickness | 11 Gauge |
| Width | 2-1/2" |
