Simpson Anchors | SKU:
HTT5

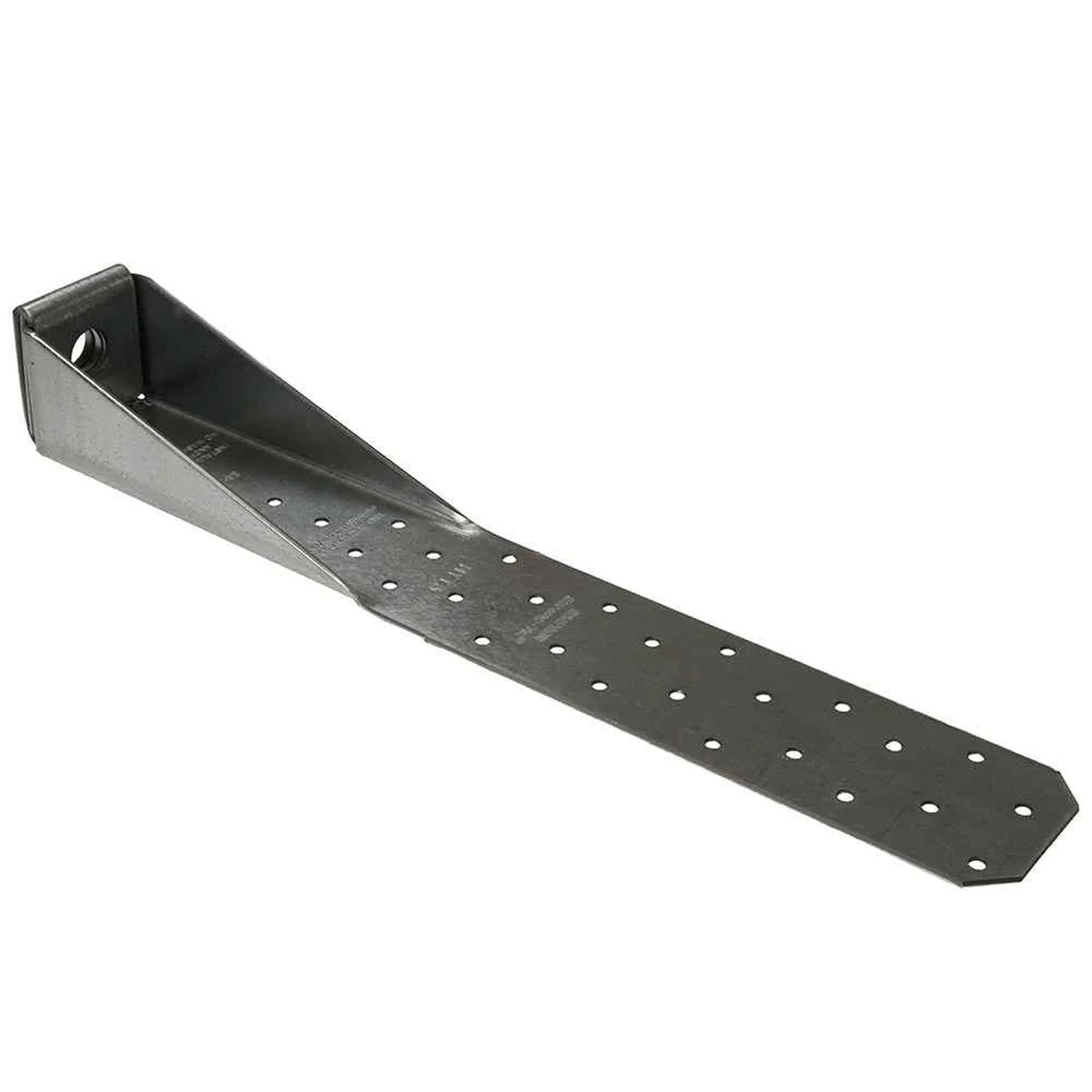

Simpson Strong-Tie HTT5 (16") Tension Tie for Wood-to-Concrete Connections
$24.86
$37.53
Unit price
/
Unavailable
Description
Description
Simpson HTT5 Description
The HTT5 Heavy Tension Tie is designed for high tension loads in wood-to-concrete connections, offering durability and ease of installation.
Simpson HTT5 Includes
- (1) 16" Tension Tie
Simpson HTT5 Features
- High Load Capacity: Achieves allowable loads up to 7,650 lbs when installed with Strong-Drive SD Connector screws.
- Optimized Design: Features a four-fold seat and tapered base to reduce deflection and enhance strength.
- Versatile Installation: Compatible with standard pneumatic nail sizes and Strong-Drive SD Connector screws.
- Durable Construction: Made from 10-gauge galvanized steel for corrosion resistance.
Simpson HTT5 Applications
- Wood-to-concrete connections in residential buildings.
- Light-frame commercial construction requiring tension resistance.
- Retrofit and new construction projects demanding high load capacity.
Simpson HTT5 Installation Overview
- Install with 0.148" x 2 1/2" or 0.162" x 2 1/2" nails, or #10 x 2 1/2" Strong-Drive SD Connector screws.
- Use a 3/4" diameter anchor bolt and one standard 3/4" cut washer (not included).
- Ensure wood member sizes are at least 3" x 3 1/2".
Simpson HTT5 Specifications
| Length | 16" |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
NOTE: Ensure proper installation by using the specified fasteners and anchor bolt sizes to achieve published load values
