Simpson Anchors | SKU:
HTT5KT
Simpson Strong-Tie HTT5KT (16") Heavy Tension Tie Kit for Wood-to-Concrete Connections - G90 Galvanized
$45.88
Unit price
/
Unavailable
Description
Description
Simpson HTT5KT Description
The HTT5KT Heavy Tension Tie Kit is designed for wood-to-concrete connections, offering high load capacity and durable construction for residential and commercial applications.

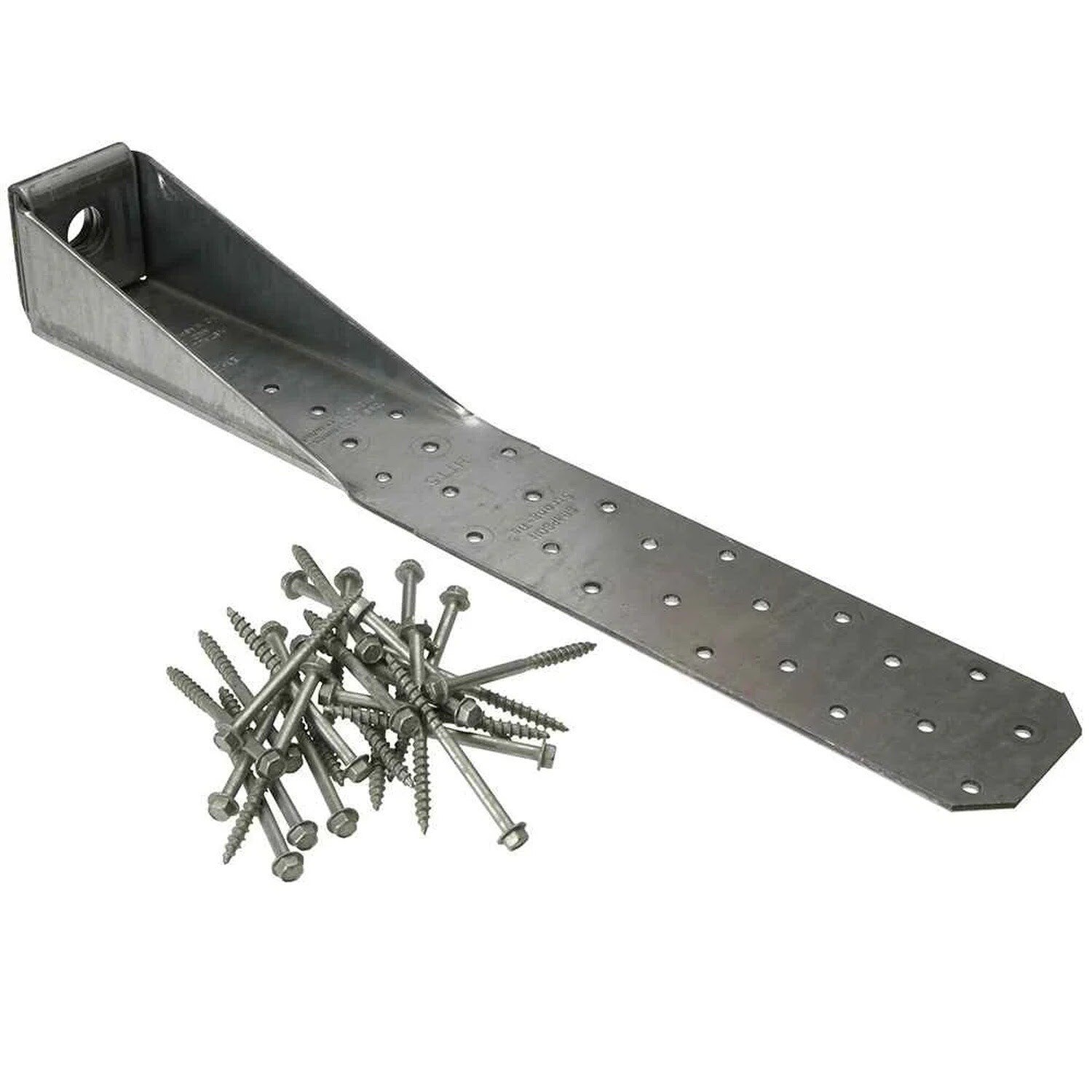

Simpson HTT5KT Includes
- (1) 16" Heavy Tension Tie
- (1) Set of Fasteners
Simpson HTT5KT Features
- High Load Capacity: Achieves allowable loads up to 7,650 lbs.
- Optimized Design: Features a four-fold seat and tapered base to reduce deflection.
- Versatile Installation: Compatible with standard pneumatic nail sizes and Strong-Drive® SD Connector screws.
- Durable Construction: Made from 10-gauge galvanized steel for corrosion resistance.
Simpson HTT5KT Applications
- Wood-to-concrete connections in residential buildings.
- Light-frame commercial construction requiring tension resistance.
- Retrofit and new construction projects demanding high load capacity.
Simpson HTT5KT Installation Overview
- Install using specified nails or Strong-Drive® SD Connector screws.
- Ensure the use of a 3/4" diameter anchor bolt and standard cut washer.
- Verify wood member size meets minimum requirements of 3" x 3 1/2".
Simpson HTT5KT Specifications
| Length | 16" |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
NOTE: Ensure proper installation by using the specified fasteners and anchor bolt to achieve published load values
