Simpson Anchors | SKU:
HTTH6.5
Simpson Strong-Tie HTTH6.5 (20-1/4") Heavy Tension Tie - Zinc Galvanized
$37.14
Unit price
/
Unavailable
Description
Description

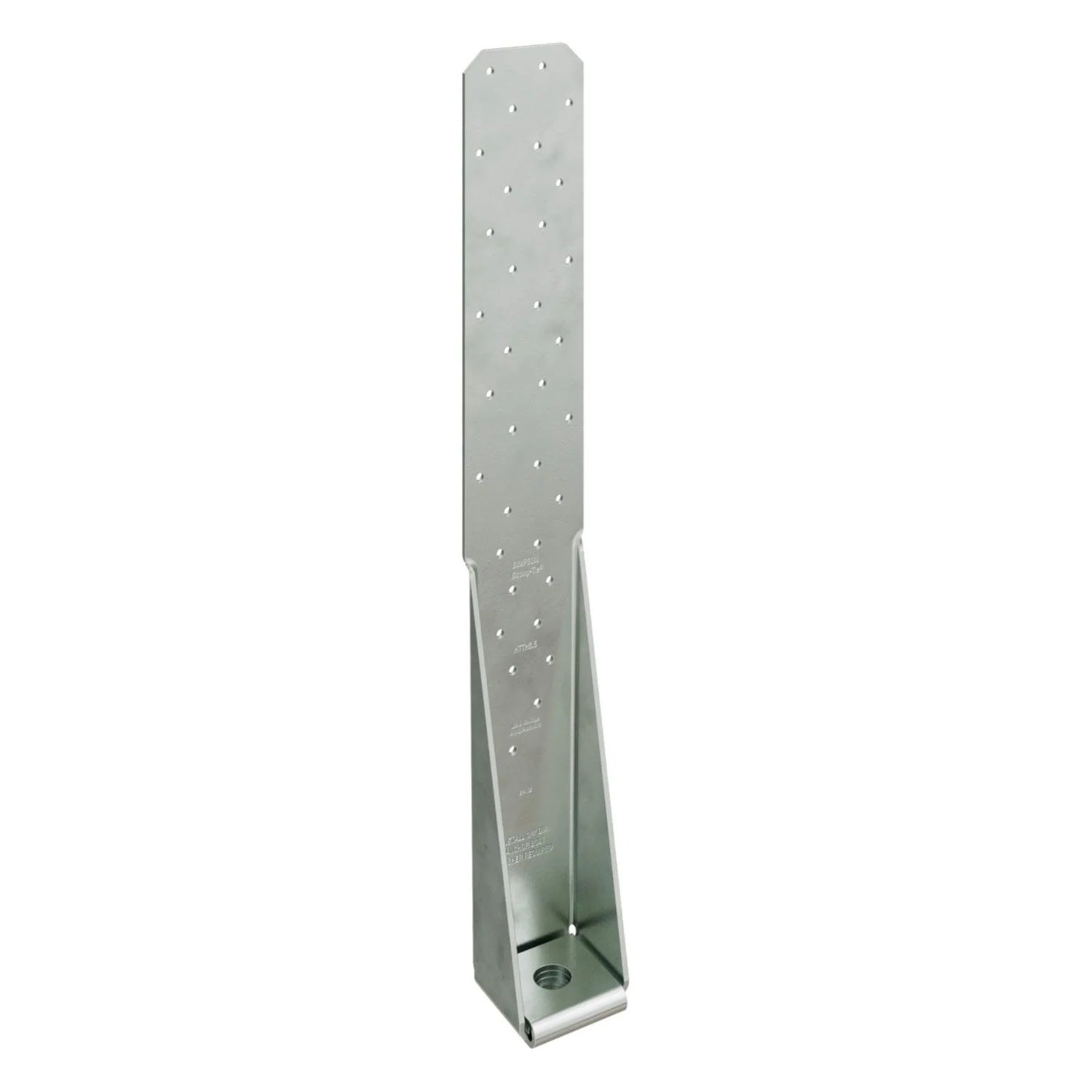

Simpson Strong-Tie HTTH6.5 Description

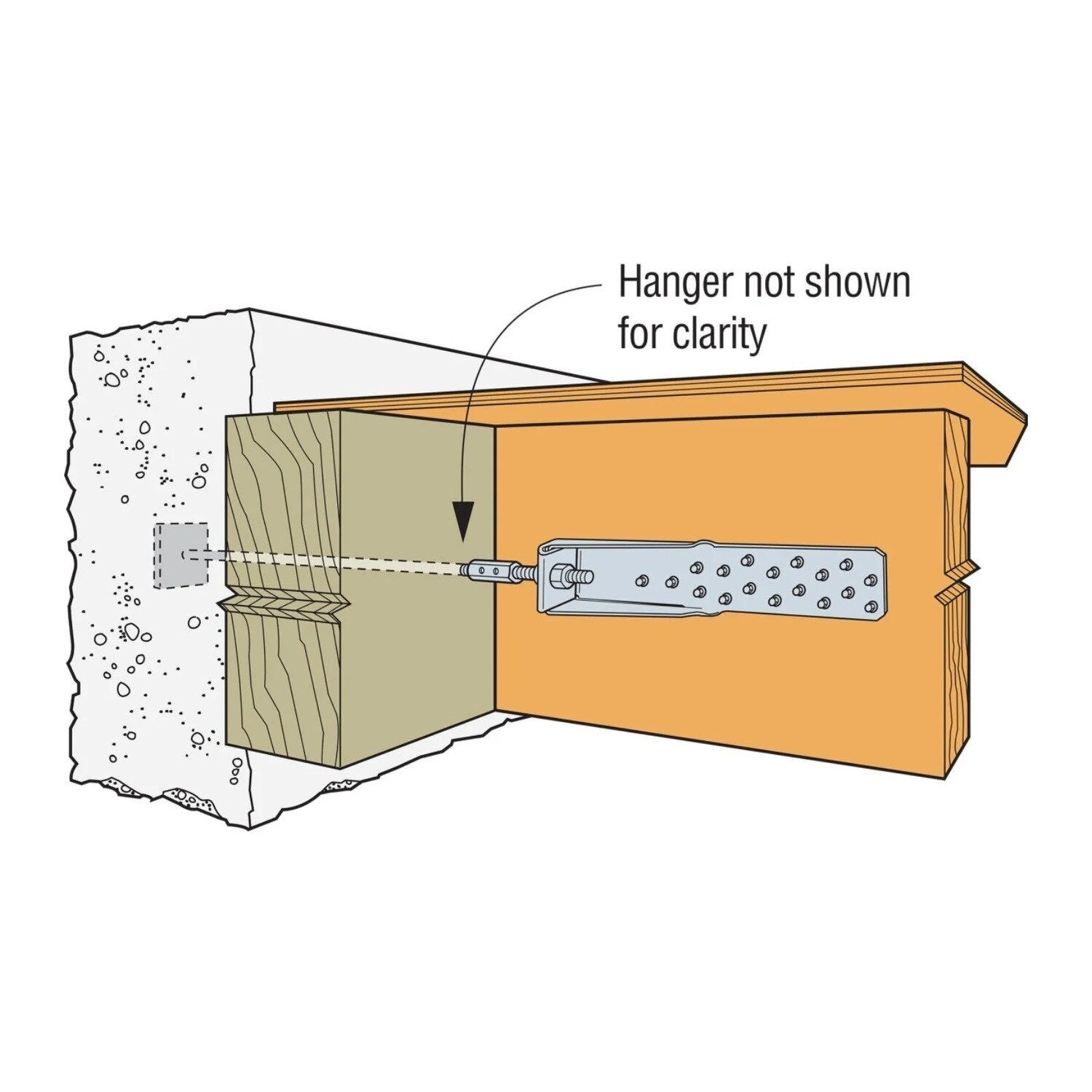

The HTTH6.5 Heavy Tension Tie is a robust solution for resisting high tension loads in wood-to-concrete connections, ideal for both residential and light-frame commercial buildings.
Simpson Strong-Tie HTTH6.5 Includes
- (1) Heavy Tension Tie
Simpson Strong-Tie HTTH6.5 Features
- High load capacity up to 7,650 lbs
- Optimized design with a four-fold seat and tapered base
- Compatible with standard pneumatic nail sizes and SD Connector screws
- Made from 10-gauge galvanized steel for corrosion resistance
Simpson Strong-Tie HTTH6.5 Applications

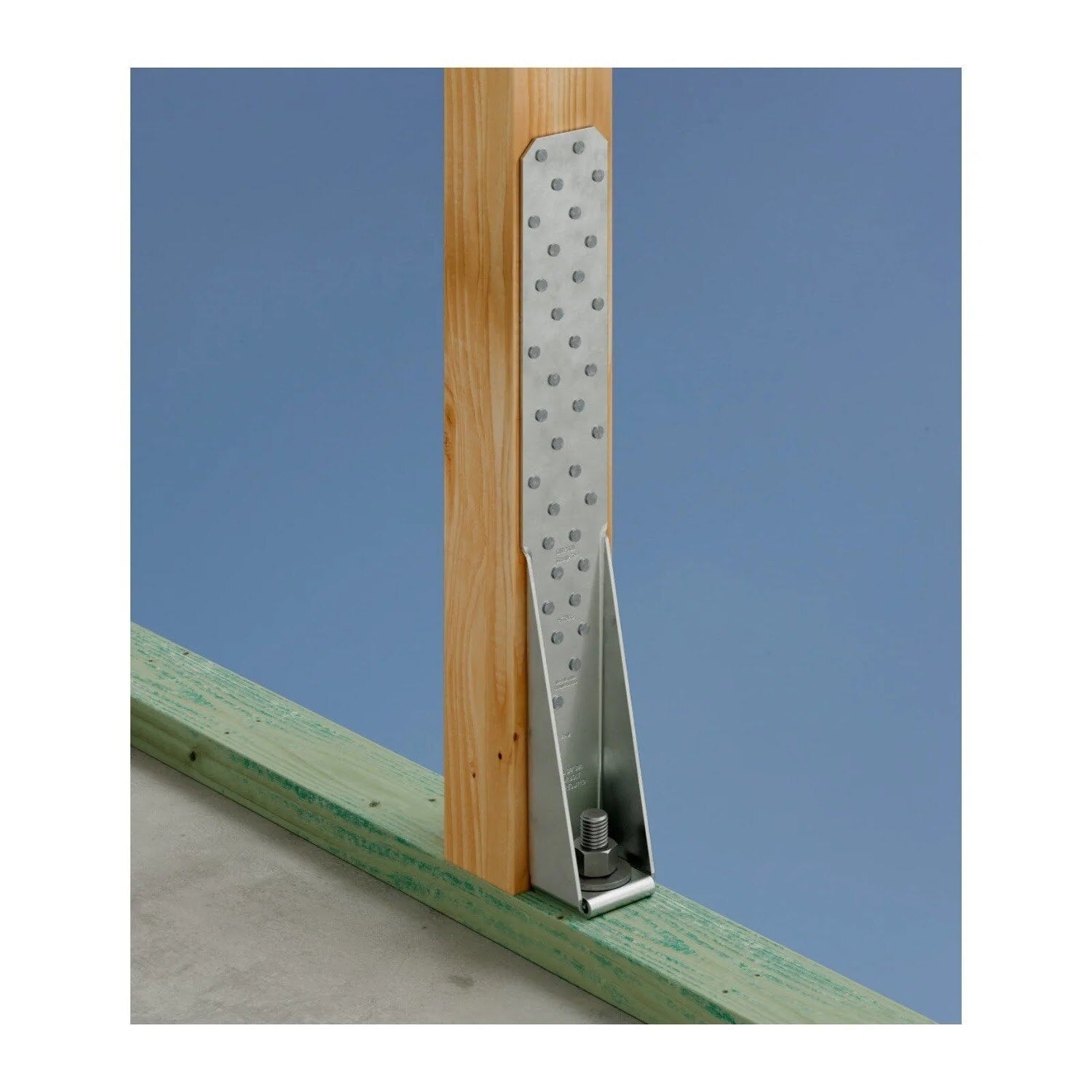

- Wood-to-concrete connections in residential buildings
- Light-frame commercial construction requiring high tension resistance
Simpson Strong-Tie HTTH6.5 Installation Overview
- Install with 0.148" x 2 1/2" or 0.162" x 2 1/2" nails, or #10 x 2 1/2" SD Connector screws

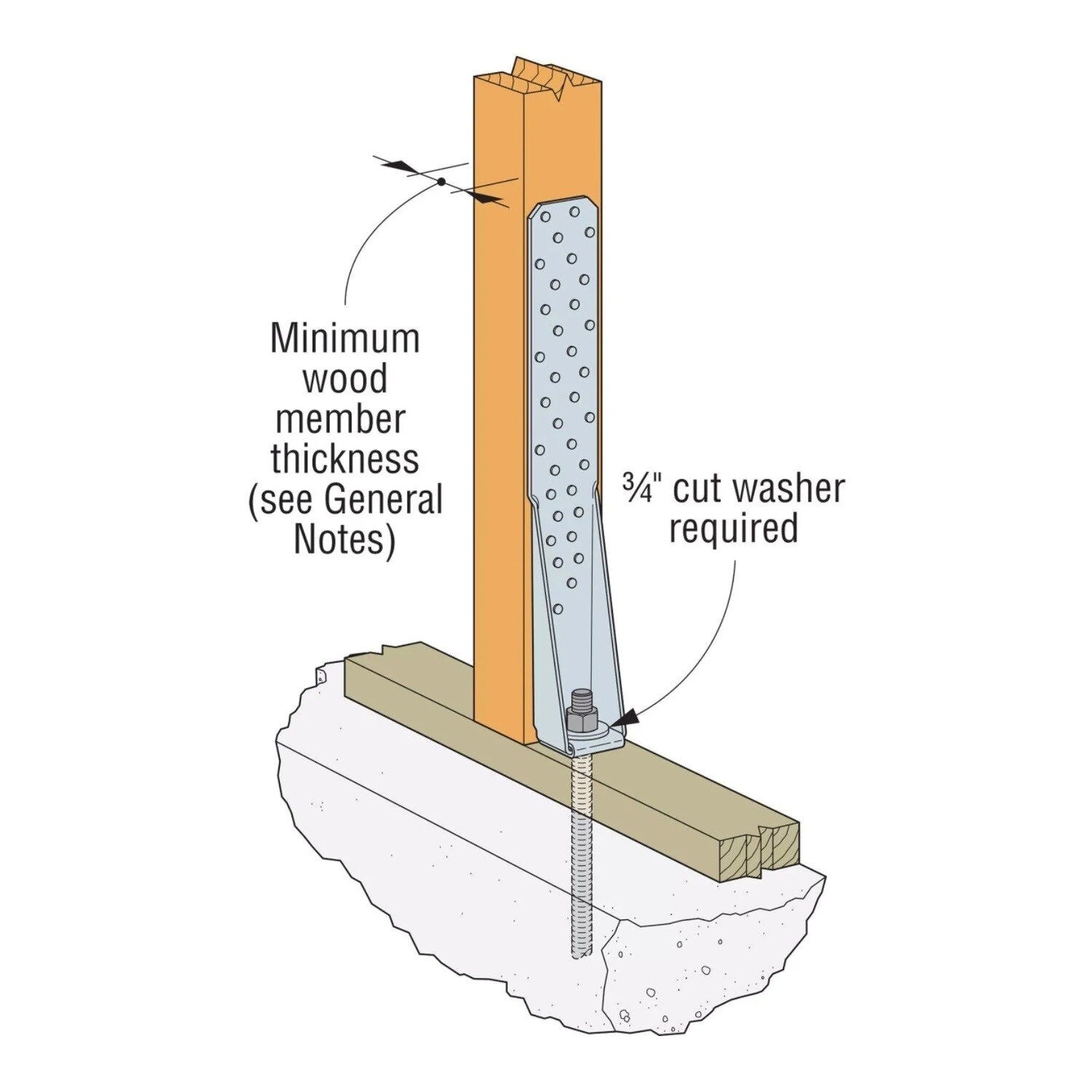

- Use a 3/4" diameter anchor bolt and one standard 3/4" cut washer (not included)
- Ensure minimum wood member size of 3" x 3 1/2"

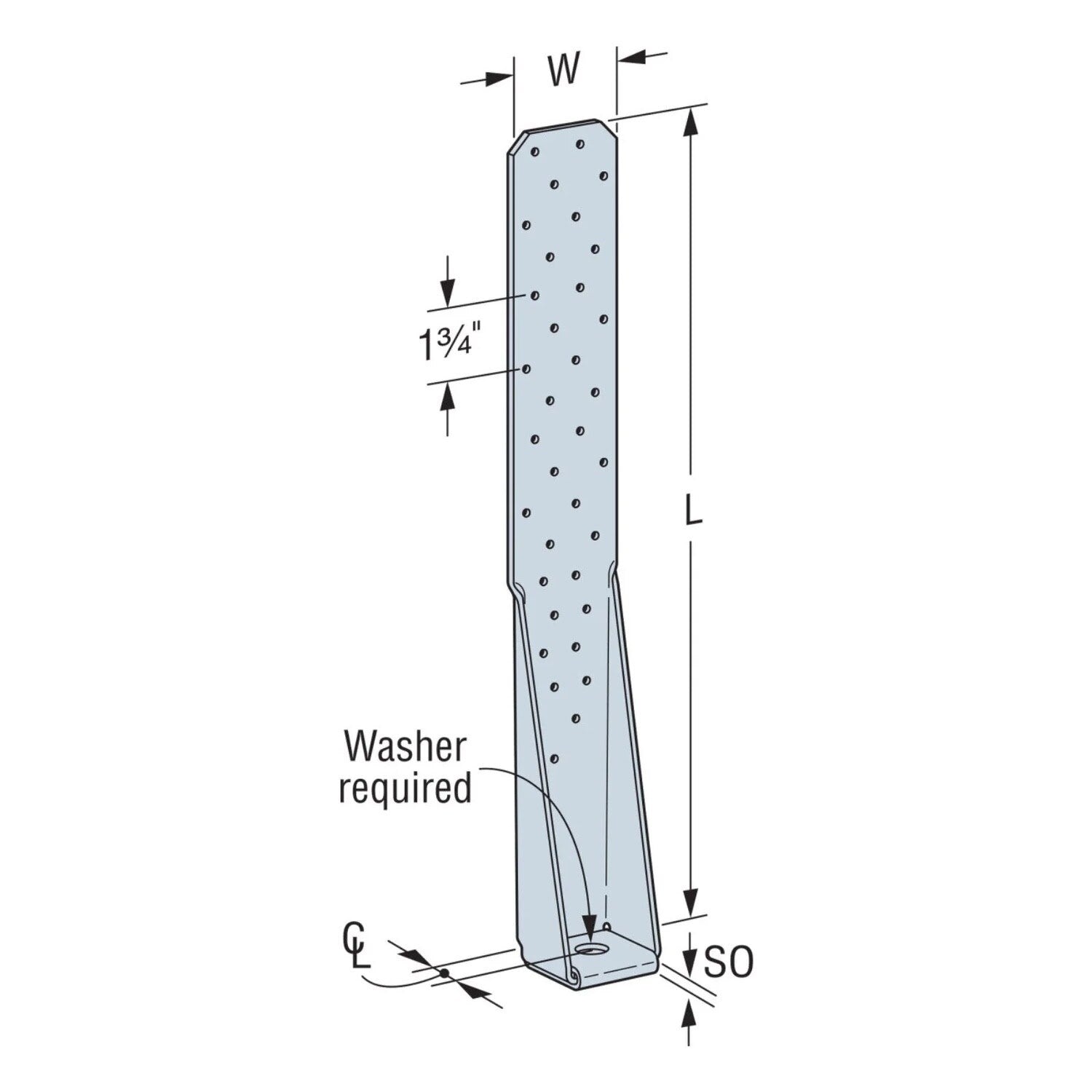

Simpson Strong-Tie HTTH6.5 Specifications
| Material | Carbon Steel |
| Finish | Zinc Galvanized |
| Thickness | 10 Gauge |
| Width | 3" |
| Length | 20-1/4" |
| CL | 1-5/16" |
| SO | 17/32" |
