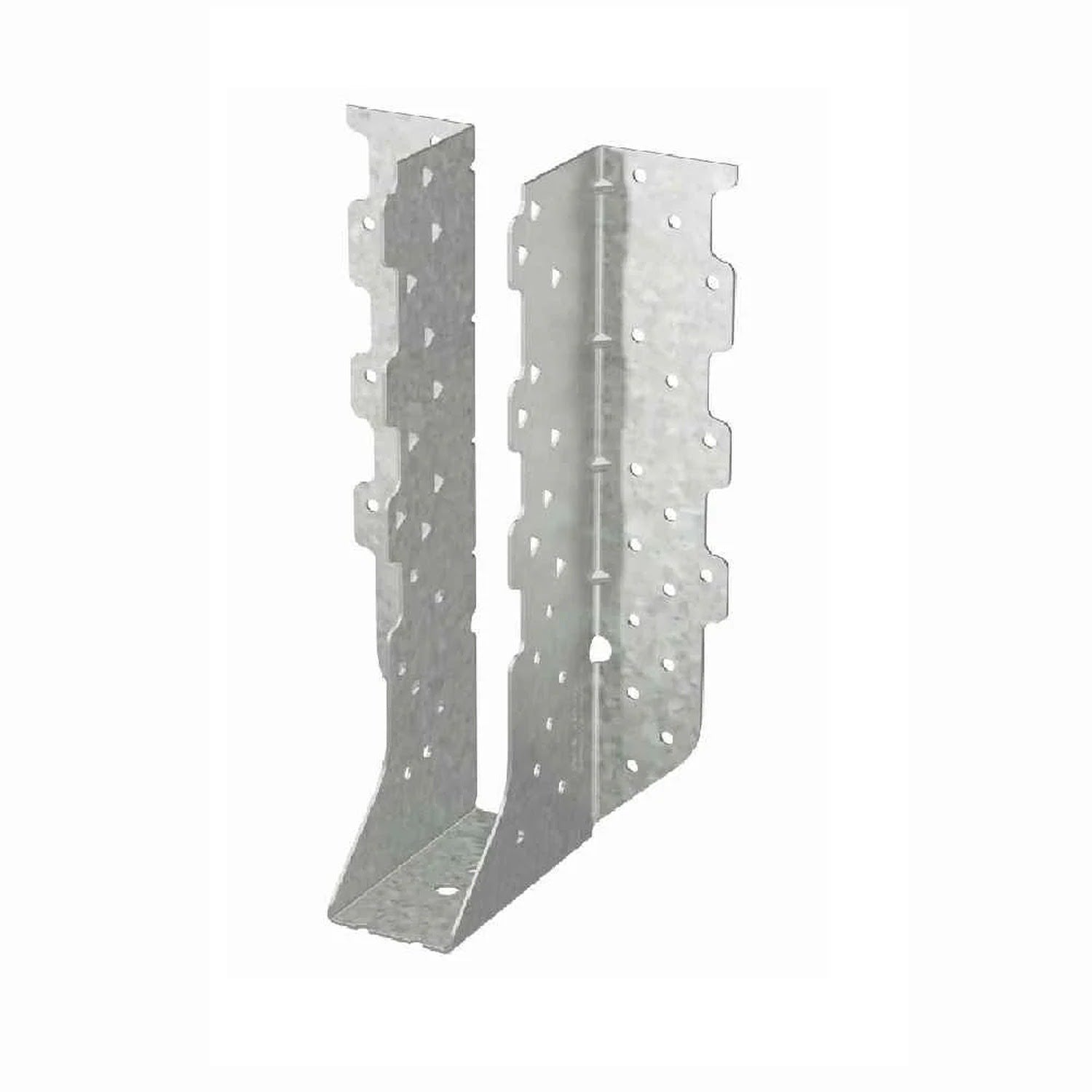

Simpson Strong-Tie HTU210 Description
The HTU210 heavy face mount truss hanger is designed for 2x10 lumber and features a G90 galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HTU210 Includes
- (1) Heavy Face Mount Truss Hanger for 2x10 Lumber
Simpson Strong-Tie HTU210 Features
- Designed for shallow heel heights with nail patterns for full allowable loads
- Supports gaps between truss and carrying member up to 1/2" for construction tolerances
- G90 galvanized finish for corrosion resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie HTU210 Applications
- Truss support in wood-framed construction
- Structural connections requiring heavy-duty hangers
- Applications with shallow heel heights
Simpson Strong-Tie HTU210 Installation Overview
- Use all specified fasteners
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- Alternate installation options available for additional uplift capacity
Simpson Strong-Tie HTU210 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Height | 9-1/16" |
