Simpson Hangers | SKU:
HU11

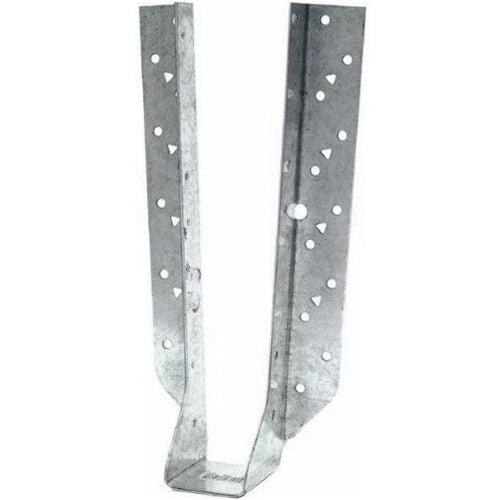

Simpson Strong-Tie HU11 (1-3/4" x 11-7/8") 14-Gauge Galvanized Face-Mount Joist Hanger for Engineered Wood
$17.93
$24.46
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HU11 Description
The Simpson HU11 Heavy-Duty Face-Mount Joist Hanger is designed for robust support in various construction applications, crafted from durable 14-gauge steel with a G90 galvanized finish.
Simpson HU11 Includes
- (1) Heavy-Duty Face-Mount Joist Hanger
Simpson HU11 Features
- G90 Galvanized Finish for corrosion resistance
- Versatile design for various joist sizes
- Code-compliant and load-rated
- Durable 14-gauge steel construction
Simpson HU11 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in residential and commercial flooring.
- Roof Framing: Enhances stability in truss and rafter connections.
- Bridges & Boardwalks: Supports heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Suitable for CMU walls or concrete slabs with appropriate fasteners.
Simpson HU11 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.
Simpson HU11 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (30) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 11-1/16" |
| Joist size | 1-3/4" X 11-1/4" |
| Thickness | 14 Gauge |
| Width | 1-13/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
