Simpson Hangers | SKU:
HU14
Simpson Strong-Tie HU14 (1-3/4" x 14") 14-Gauge Galvanized Face-Mount Joist Hanger for Engineered Wood
$29.88
$38.81
Unit price
/
Unavailable
Description
Description
Simpson HU14 Description

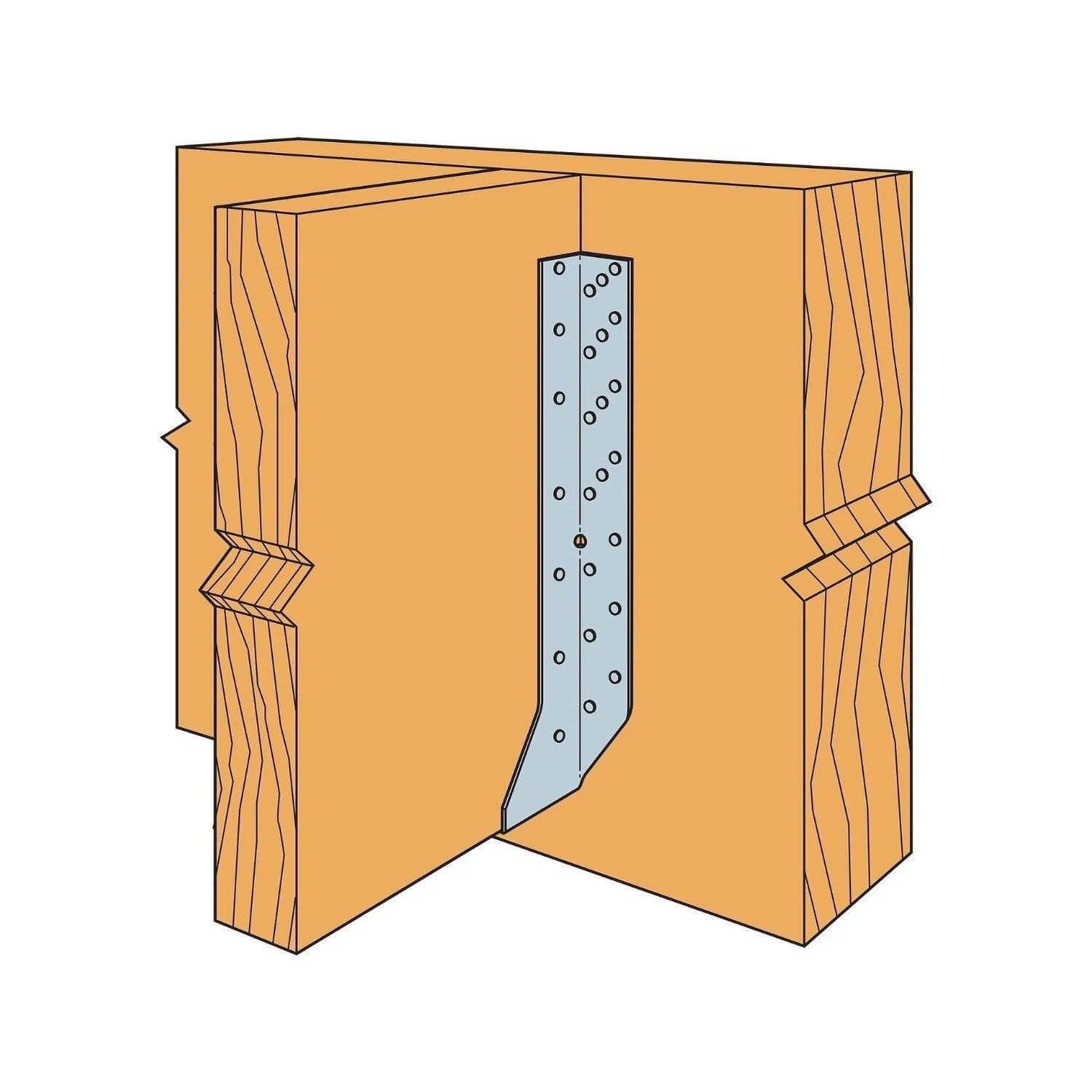

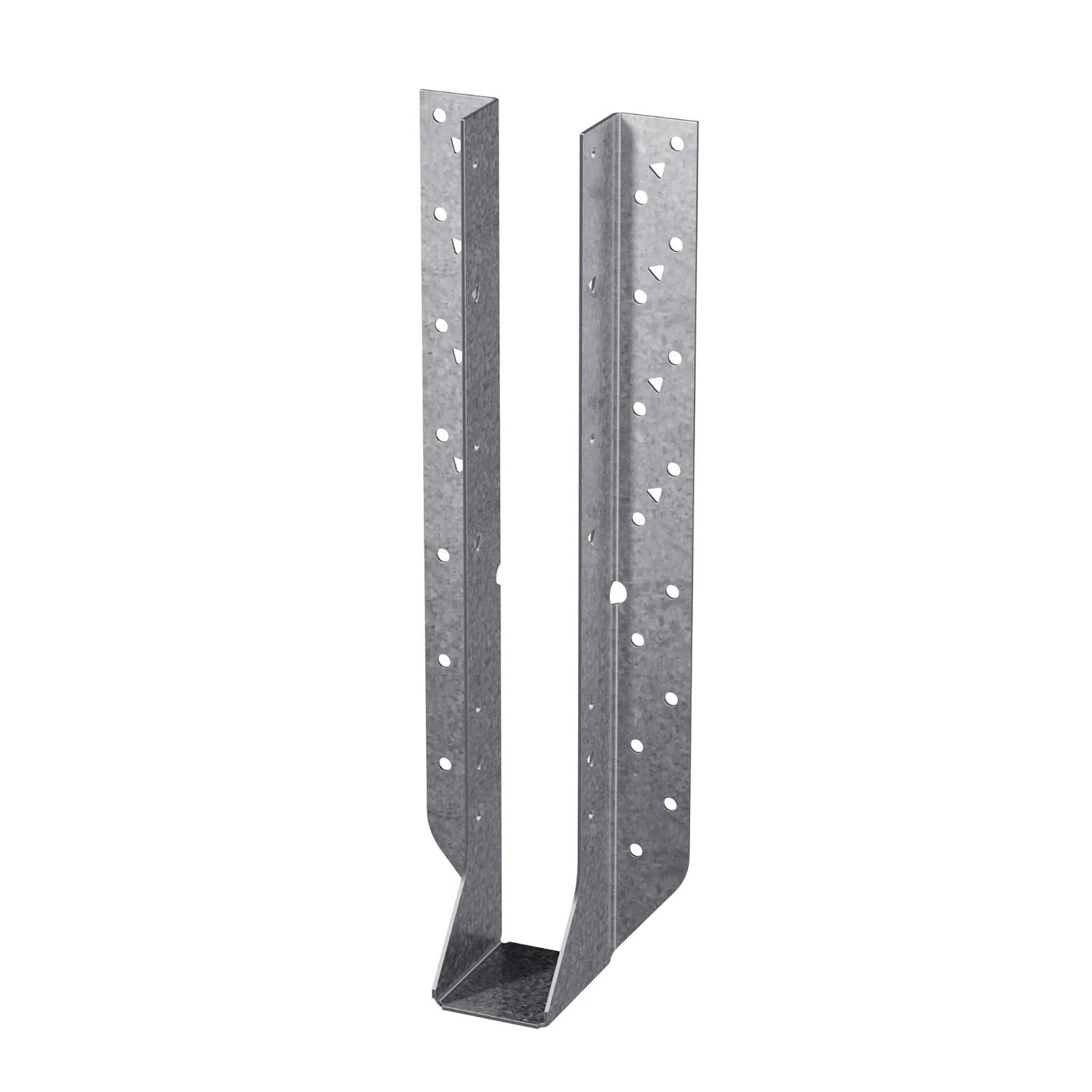

The Simpson HU14 Galvanized Face-Mount Joist Hanger is designed for engineered wood applications, offering robust support and durability.
Simpson HU14 Includes
- (1) Galvanized Face-Mount Joist Hanger for Engineered Wood
Simpson HU14 Features
- G90 Galvanized Finish for corrosion resistance
- Versatile design for various joist sizes
- Code-compliant and load-rated
- Constructed from 14-gauge steel for durability
Simpson HU14 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson HU14 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.
Simpson HU14 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (36) 0.162" x 3-1/2" Nails, Joist - (14) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 13-11/16" |
| Joist size | 1-3/4" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 1-13/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
