Simpson Hangers | SKU:
HU2.1/9

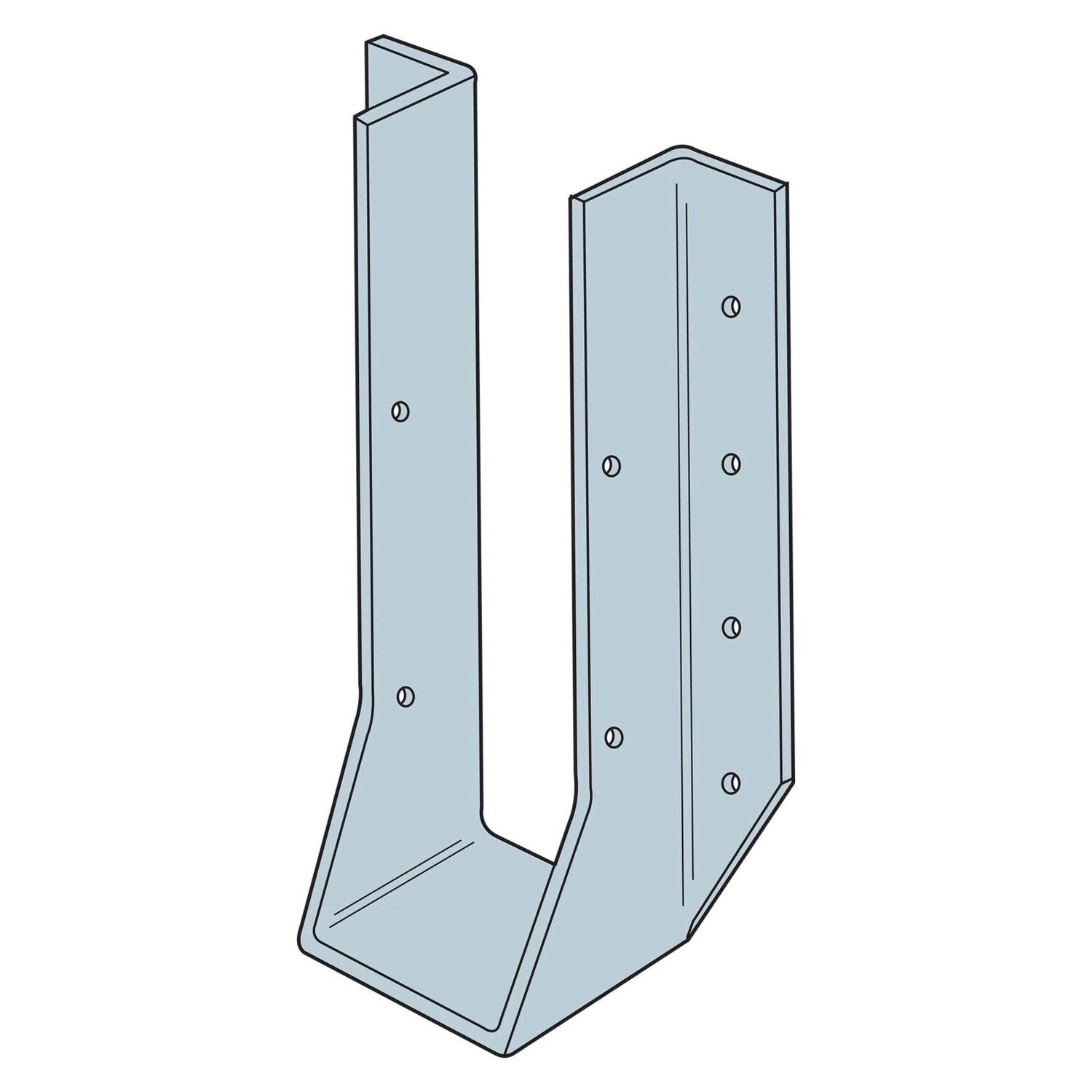

Simpson Strong-Tie HU2.1/9 (9-3/16") 14 Gauge Face Mount I-Joist Hanger - G90 Galvanized
$17.66
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU2.1/9 Description
The Simpson Strong-Tie HU2.1/9 is a heavy-duty face-mount joist hanger designed for engineered wood, providing robust support for various construction applications.
Simpson Strong-Tie HU2.1/9 Includes
- (1) Face Mount Joist Hanger
Simpson Strong-Tie HU2.1/9 Features
- G90 Galvanized Finish for corrosion resistance
- Compatible with solid sawn lumber, engineered wood, and cold-formed steel joists
- Tested and load-rated for code compliance
- Made from durable 14-gauge steel
Simpson Strong-Tie HU2.1/9 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU2.1/9 Installation Overview
- Use hot-dip galvanized nails for G90 galvanized hangers.
- Install into masonry and concrete using specified Titen HD screws.
Simpson Strong-Tie HU2.1/9 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 9-3/16" |
| Joist size | 2-1/16" X 9-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 2-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
