Simpson Hangers | SKU:
HU210-2
Simpson Strong-Tie HU210-2 (Double 2" x 10") 14-Gauge Galvanized Face-Mount Joist Hanger for Engineered Wood
$19.56
$29.50
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HU210-2 Description

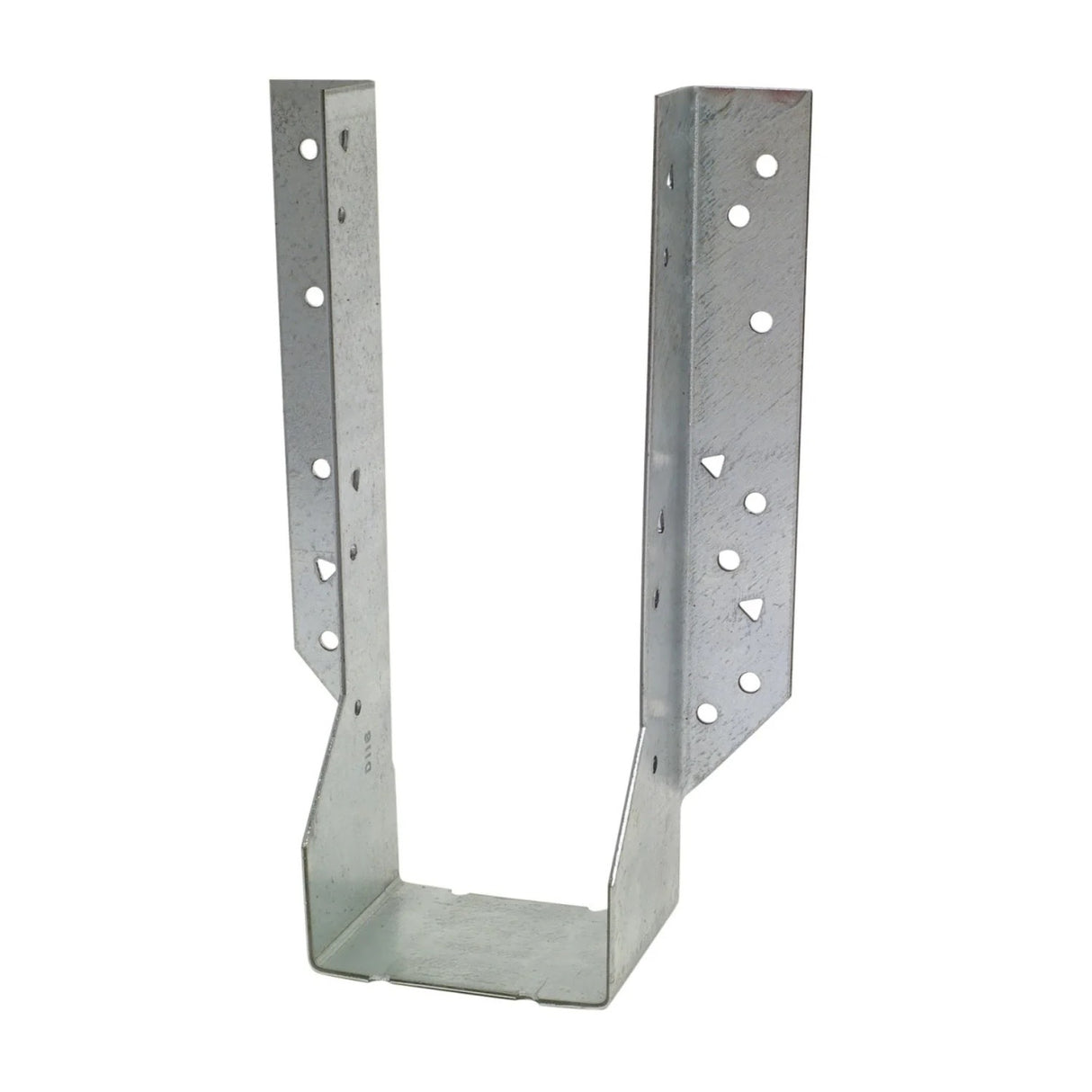

The Simpson HU210-2 Double 2x10 Face-Mount Joist Hanger is a heavy-duty, galvanized steel hanger designed for robust support in wood-to-wood and wood-to-masonry connections.
Simpson HU210-2 Includes
- (1) Double 2x10 Face-Mount Joist Hanger
Simpson HU210-2 Features
- G90 Galvanized Finish for corrosion resistance
- Versatile applications for various joist sizes
- Code compliance for reliable structural performance
- Crafted from durable 14-gauge steel
Simpson HU210-2 Applications

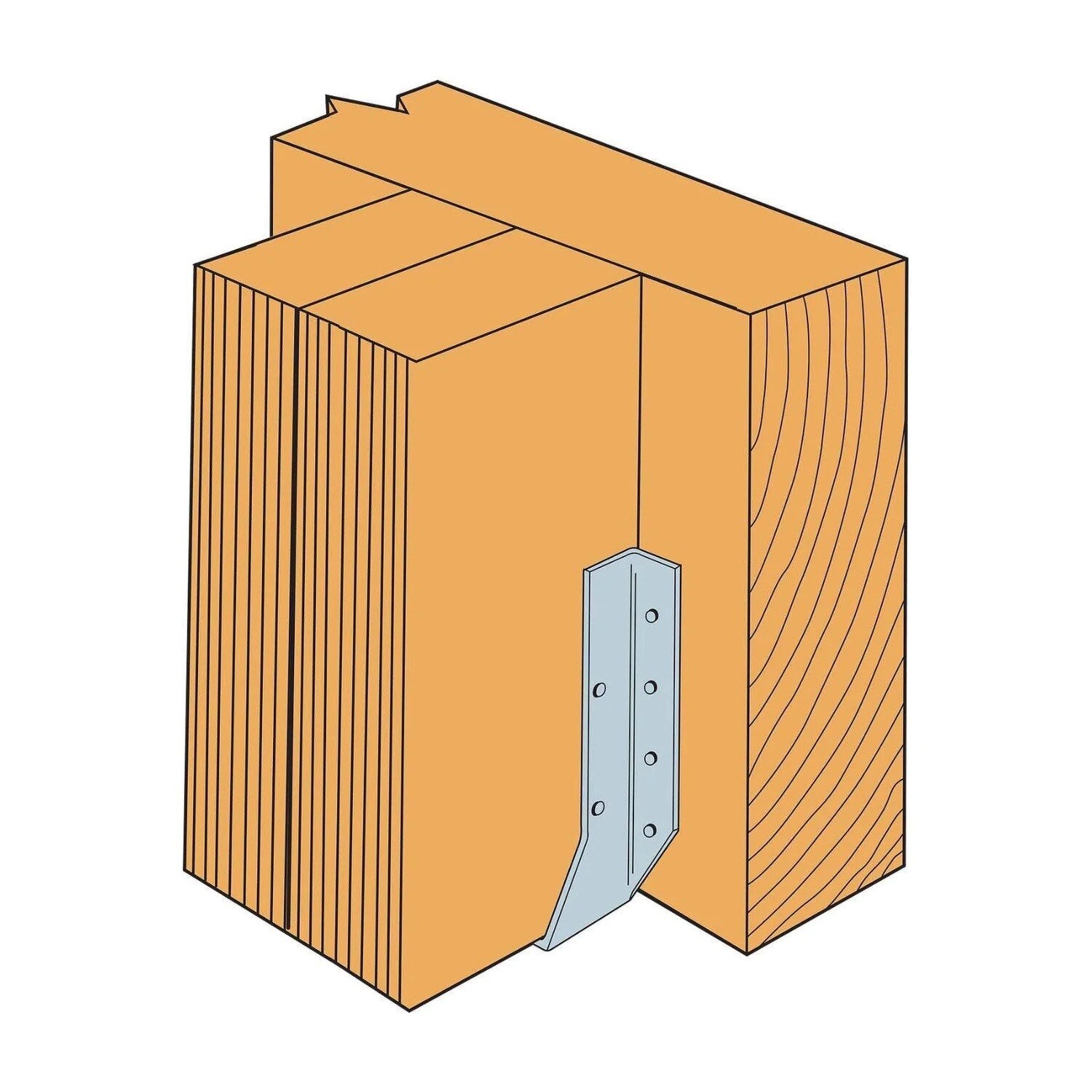

- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in residential and commercial flooring.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson HU210-2 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.

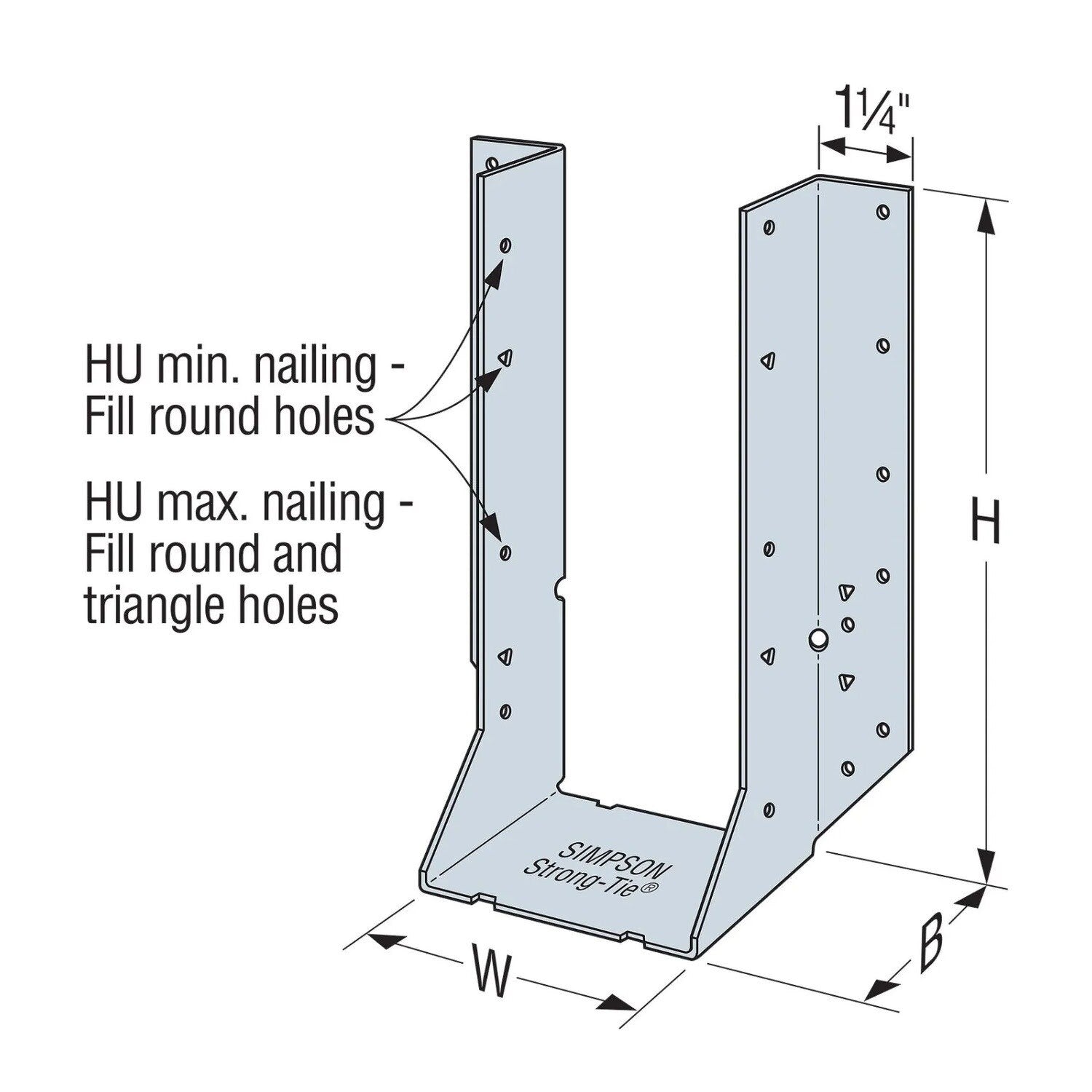

Simpson HU210-2 Specifications
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 8-13/16" |
| Joist size | Double 2" X 10" |
| Thickness | 14 Gauge |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
