Simpson Hangers | SKU:
HU210

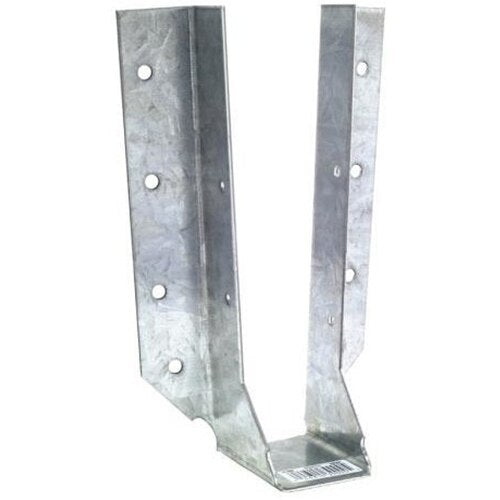

Simpson Strong-Tie HU210 (2" x 10") 14-Gauge Galvanized Face-Mount Joist Hanger for Engineered Wood
$9.31
$15.10
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HU210 Description
The Simpson HU210 Galvanized Face-Mount Joist Hanger is designed for robust support in various construction applications, featuring a durable 14-gauge steel construction and G90 galvanized finish.
Simpson HU210 Includes
- (1) Galvanized Face-Mount Joist Hanger for 2x10
Simpson HU210 Features
- G90 Galvanized Finish for corrosion resistance
- 14-gauge steel construction for durability
- Versatile design for various joist sizes
- Code-compliant and load-rated for structural applications
Simpson HU210 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in residential and commercial flooring.
- Roof Framing: Enhances stability in truss and rafter connections.
- Bridges & Boardwalks: Supports heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Suitable for CMU walls or concrete slabs with appropriate fasteners.
Simpson HU210 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.
Simpson HU210 Specifications
| Material | Carbon Steel |
| Fasteners required | Face - (8) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 7-1/8" |
| Joist size | 2" X 6" |
| Thickness | 14 Gauge |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
