Simpson Hangers | SKU:
HU210Z
Simpson Strong-Tie HU210Z Heavy-Duty Face-Mount Joist Hanger for 2x10 with ZMAX Finish
$15.78
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU210Z Description

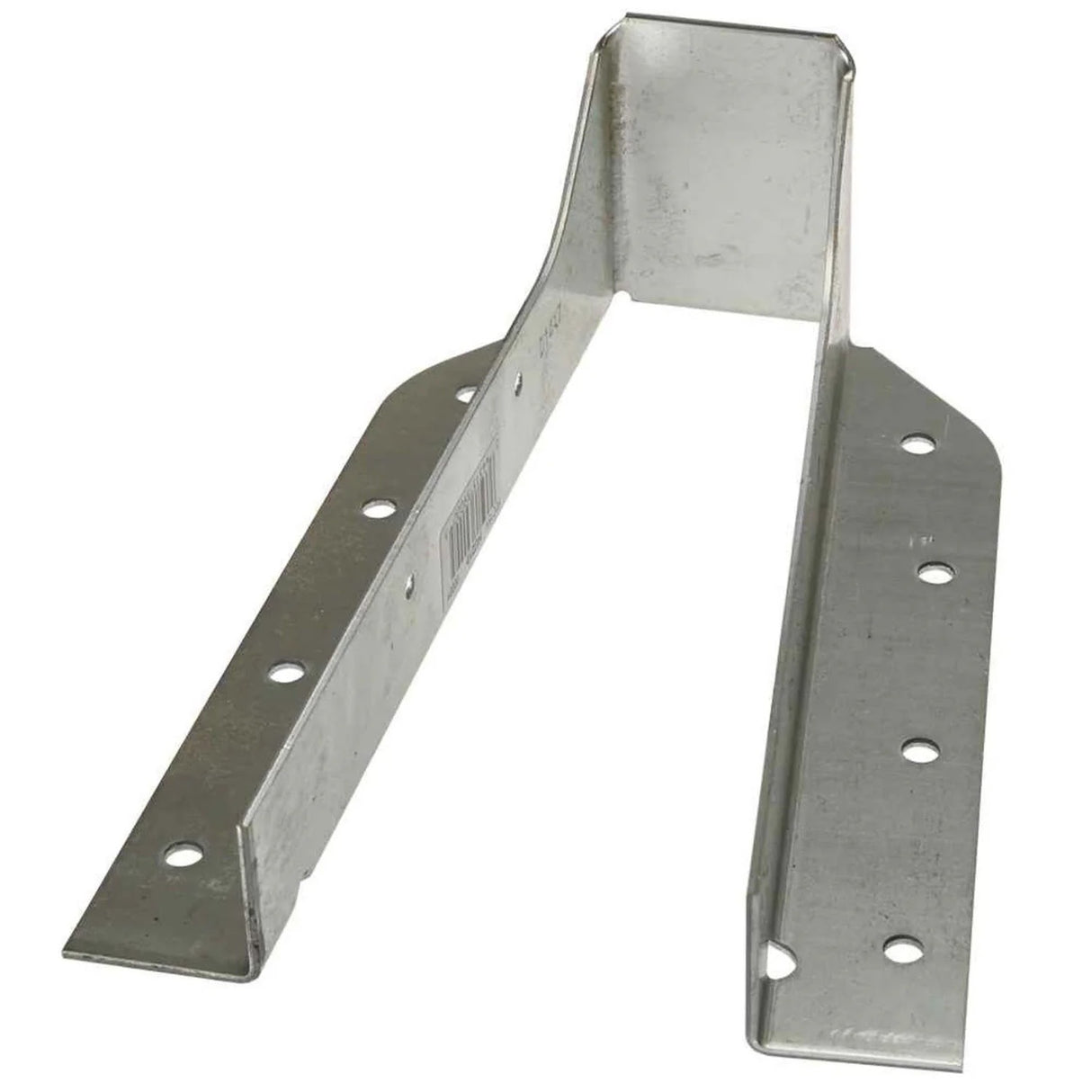

The Simpson Strong-Tie HU210Z is a heavy-duty face-mount joist hanger designed for 2x10 joists, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HU210Z Includes
- (1) HU210Z Joist Hanger
Simpson Strong-Tie HU210Z Features
- Heavy-duty construction for robust support
- ZMAX galvanized coating for corrosion resistance
- Designed for 2x10 joists
- Tested and code compliant
Simpson Strong-Tie HU210Z Applications
- Deck construction: Provides secure support for deck joists and ledger board connections.
- Floor framing: Ensures stability in wood-frame floor systems for residential and commercial buildings.
- Roof framing: Strengthens rafter and beam connections in trusses and roof assemblies.
- Post and beam structures: Ideal for pergolas, gazebos, and other timber-framed structures.
- Masonry and concrete applications: Can be installed with Titen HD screws for secure attachment to CMU or concrete.
Simpson Strong-Tie HU210Z Installation Overview
- Use all specified fasteners as per guidelines.
- Fill all round and optional triangular holes for maximum load capacities.
- For masonry or concrete installations, use appropriate fasteners like Titen HD screws.
- Ensure minimum end and edge distances are maintained.
- Web stiffeners required for I-joist applications.
Simpson Strong-Tie HU210Z Specifications
| Material | Carbon Steel |
| Finish | ZMAX Galvanized |
| Thickness | 14 Gauge |
| Width | 1-9/16" |
| Height | 7-1/8" |
| Joist size | 2" X 10" |
| Fasteners required | Face - (8) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails |
| For Treated Lumber | Yes |
