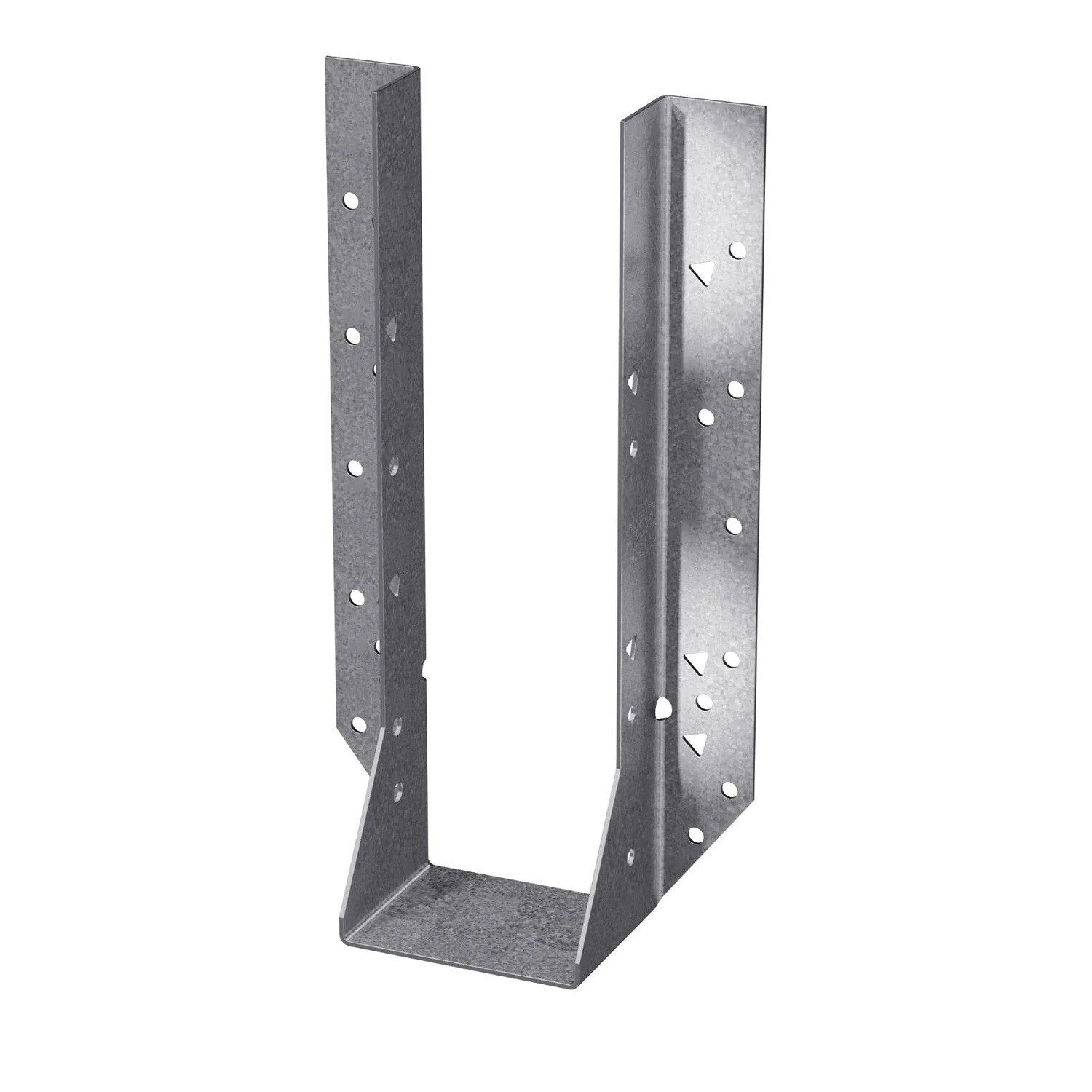

Simpson Strong-Tie HU212-2 (Double 2" x 12") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger

Name: Simpson Strong-Tie HU212-2 (Double 2" x 12") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248764
Price: 24.48 USD
Availability: InStock

$24.48 ~~$35.21~~

NOTE: This item is ineligible for free shipping

Description

Simpson HU212-2 Description

The Simpson HU212-2 Double 2x12 Face-Mount Joist Hanger is a heavy-duty hanger designed for robust support in various construction applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures durability and reliability.

Simpson HU212-2 Includes

(1) Double 2x12 Face-Mount Joist Hanger

Simpson HU212-2 Features

G90 Galvanized Finish for corrosion resistance
Versatile applications for various joist sizes
Code compliance for reliable structural performance
Heavy-duty 14-gauge steel construction

Simpson HU212-2 Applications

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
Roof Framing: Used in truss and rafter connections for enhanced stability.
Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson HU212-2 Installation Overview

Use hot-dip galvanized nails for maximum corrosion resistance.
Install into masonry and concrete using specified Titen HD screws.

Simpson HU212-2 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Face - (22) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails
For Treated Lumber	No
Height	10-9/16"
Joist size	Double 2" X 12"
Thickness	14 Gauge
Width	3-1/8"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
