Simpson Hangers | SKU: HU212 | Barcode: 044315391002

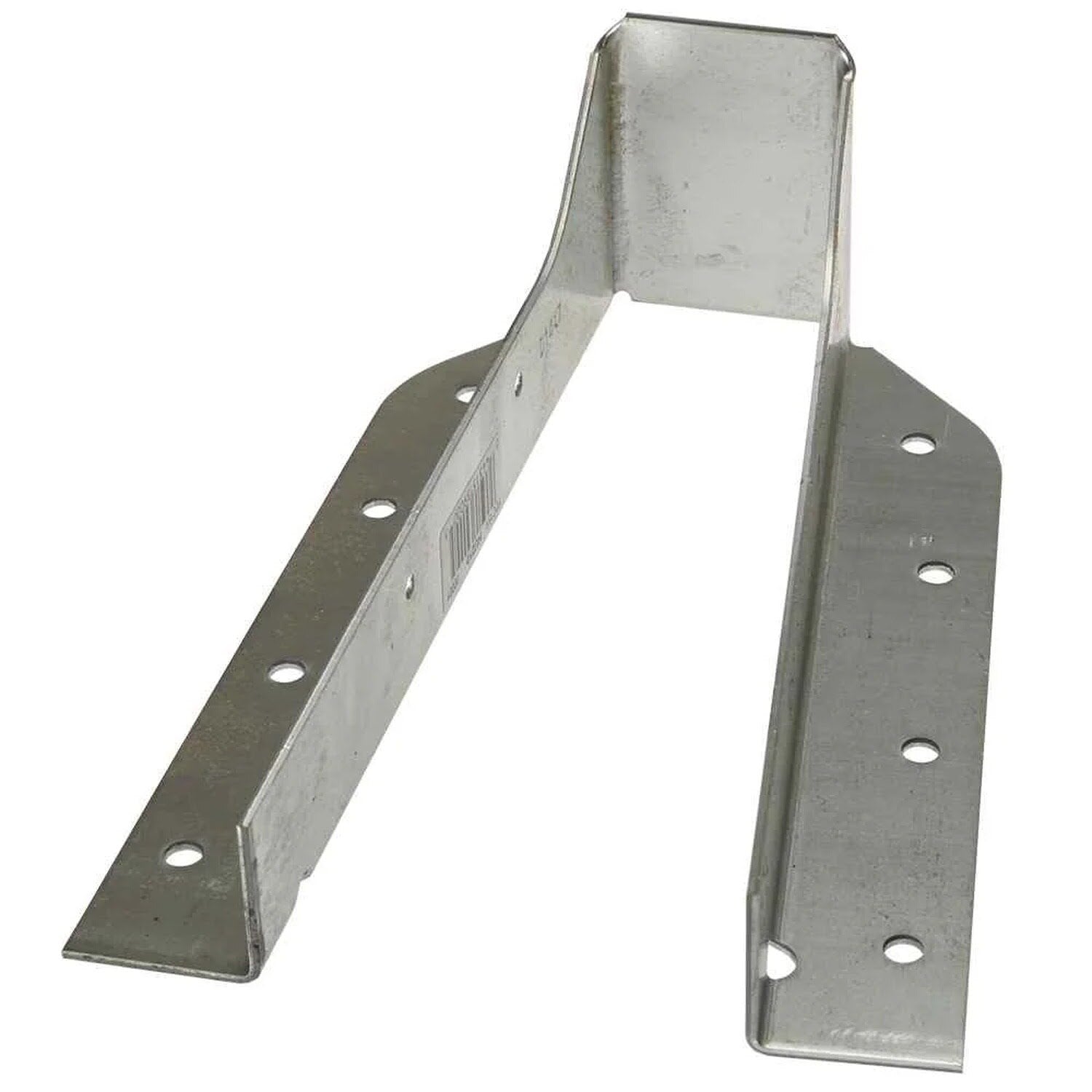

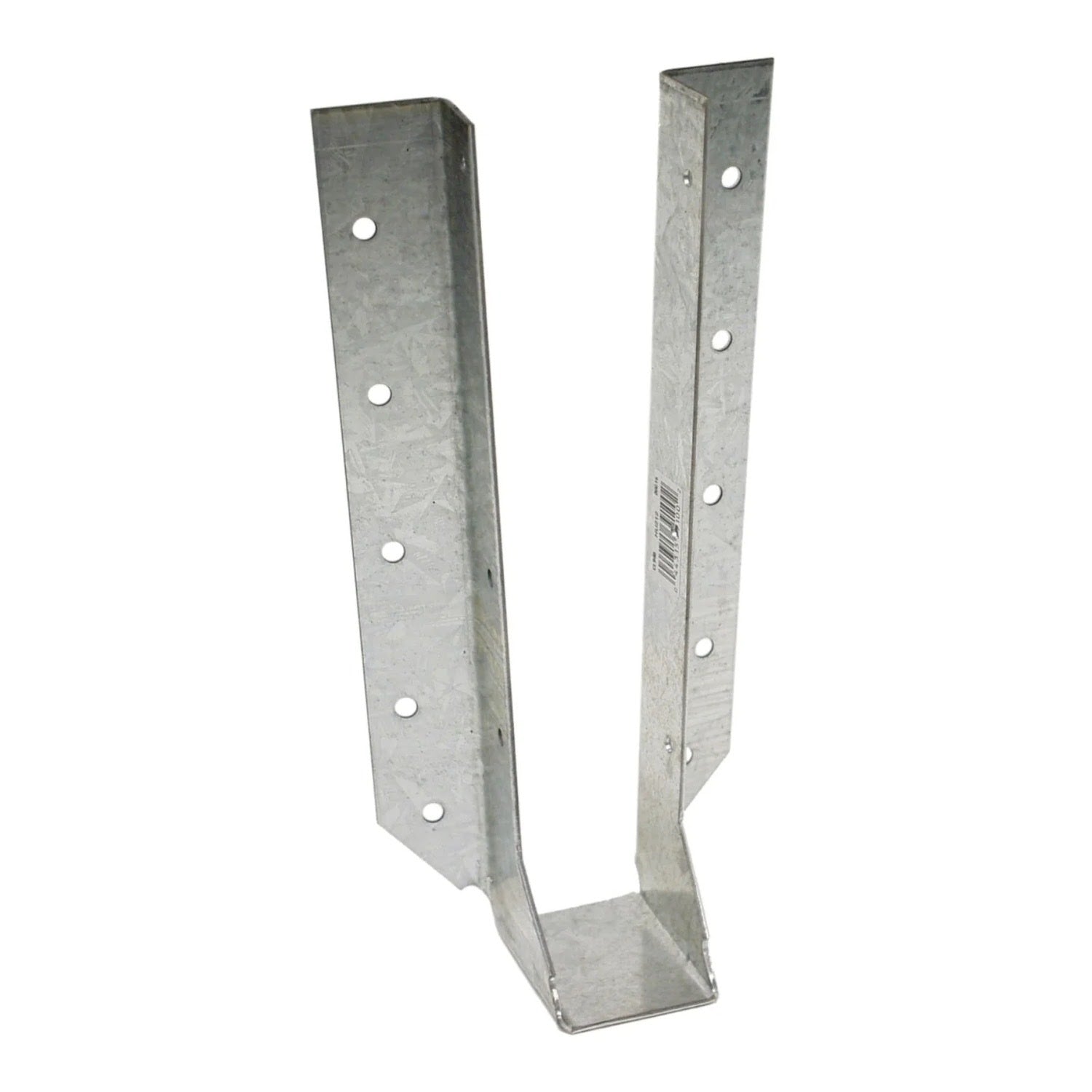

Simpson Strong-Tie HU212 (2" x 12") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger

Name: Simpson Strong-Tie HU212 (2" x 12") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248763
Price: 11.32 USD
Availability: InStock

$11.32 ~~$18.77~~

NOTE: This item is ineligible for free shipping

Description

Simpson HU212 Description

The Simpson HU212 is a heavy-duty face-mount joist hanger designed for 2x12 joists, featuring a G90 galvanized finish for corrosion resistance and robust 14-gauge steel construction.

Simpson HU212 Includes

(1) Galvanized Face-Mount Joist Hanger for 2x12

Simpson HU212 Features

G90 Galvanized Finish for corrosion resistance
Heavy-duty 14-gauge steel construction
Versatile design for various joist sizes
Code-compliant and load-rated for structural applications

Simpson HU212 Applications

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
Roof Framing: Used in truss and rafter connections for enhanced stability.
Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson HU212 Installation Overview

Use hot-dip galvanized nails for maximum corrosion resistance.
Install into masonry and concrete using specified Titen HD screws.
Ensure correct fasteners are installed in the correct position to achieve published load values.

Simpson HU212 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Face - (10) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails
For Treated Lumber	No
Height	9"
Joist size	2" X 12"
Thickness	14 Gauge
Width	1-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
