Simpson Hangers | SKU:
HU212TF
Simpson Strong-Tie HU212TF (2" x 12") 12 Gauge Galvanized Heavy Top-Flange Joist Hanger
$39.56
$54.14
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HU212TF Description

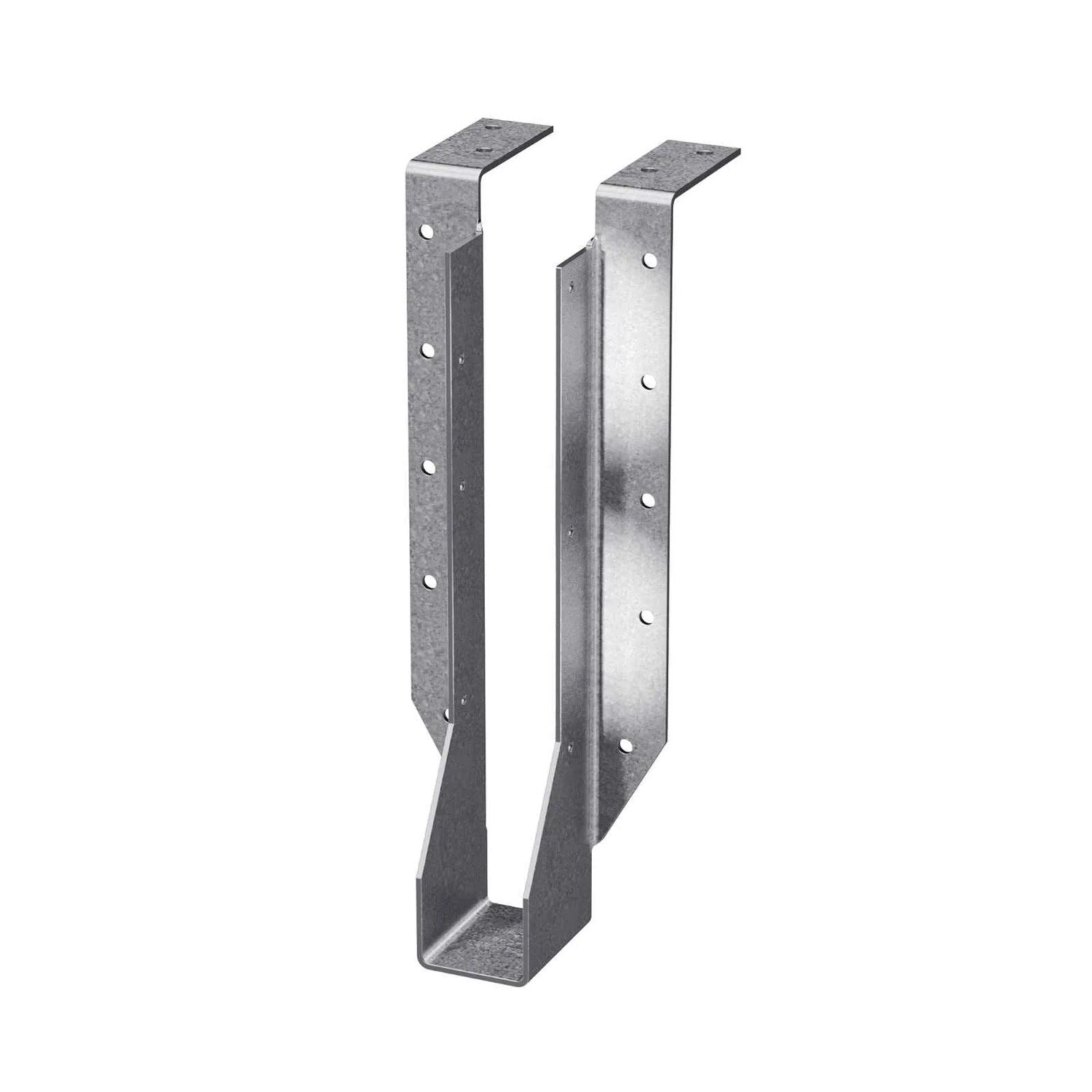

The Simpson HU212TF is a galvanized top-flange joist hanger designed for 2x12 lumber, offering robust support and versatile installation options.
Simpson HU212TF Includes
- (1) Galvanized Top-Flange Joist Hanger for 2x12
Simpson HU212TF Features
- Hybrid Design: Integrates face-mount and top-mount hanger advantages for robust connections.
- Durable Construction: Made from 12-gauge galvanized steel for exceptional strength and corrosion resistance.
- Versatile Installation: Can be skewed or sloped up to 45° to accommodate various framing requirements.
Simpson HU212TF Applications
- Residential and Commercial Floor Joists: Securely fastens joists to headers, ensuring stability and reducing movement in flooring systems.
- Roof Rafter Connections: Provides strong and lasting support for sloped rafters, helping maintain the structural integrity of pitched roofs.
- Deck Framing: Reinforces deck joists, creating a solid framework that withstands heavy loads and outdoor conditions.
- General Wood-to-Wood Structural Connections: Ideal for various framing needs, offering a reliable connection for beams, ledgers, and other timber structures.

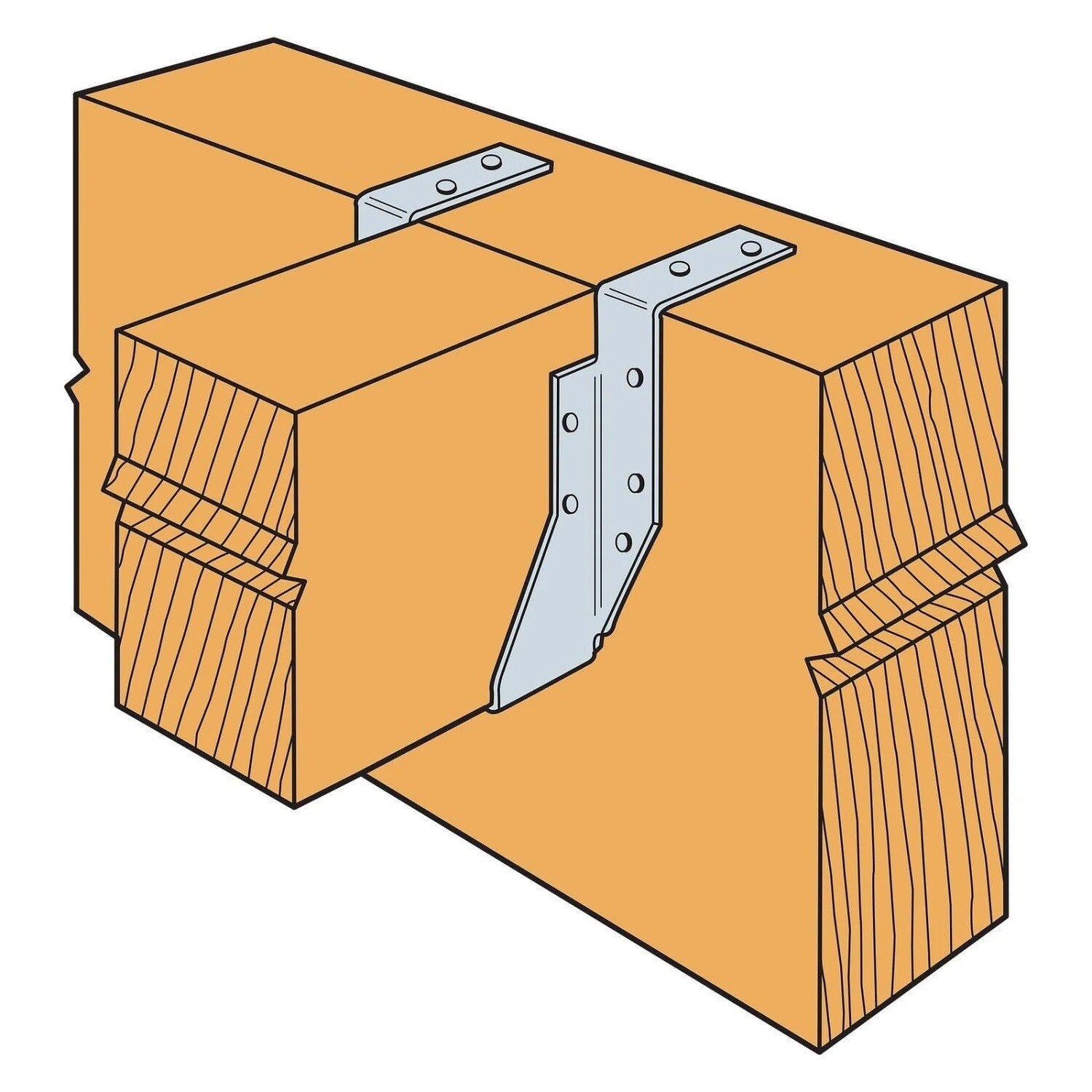

Simpson HU212TF Installation Overview
- Fasteners: Use all specified fasteners as per the manufacturer's instructions to ensure maximum load capacity.
- Header Size: The minimum header or ledger size compatible with the HUTF hanger is 3 1/2 inches.

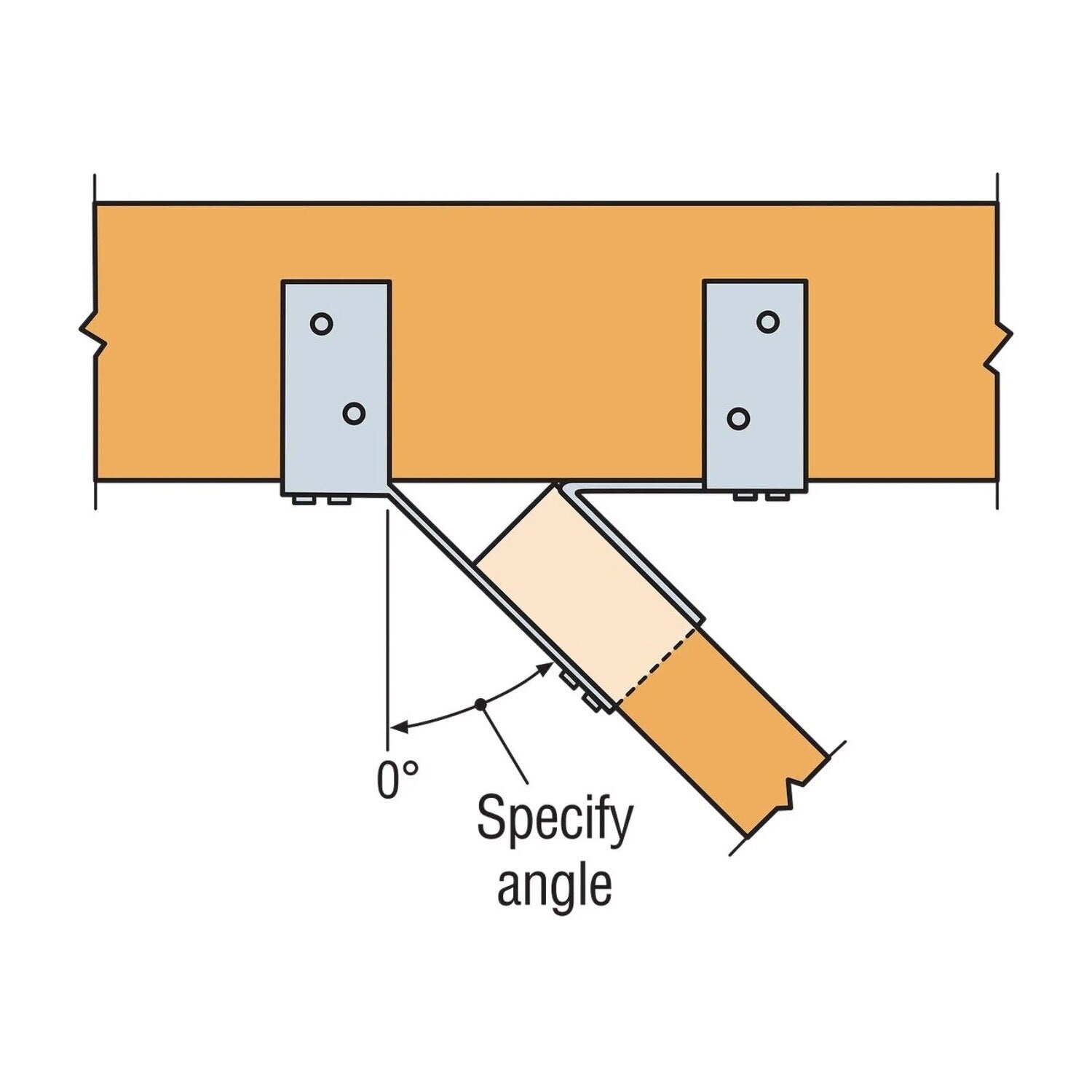

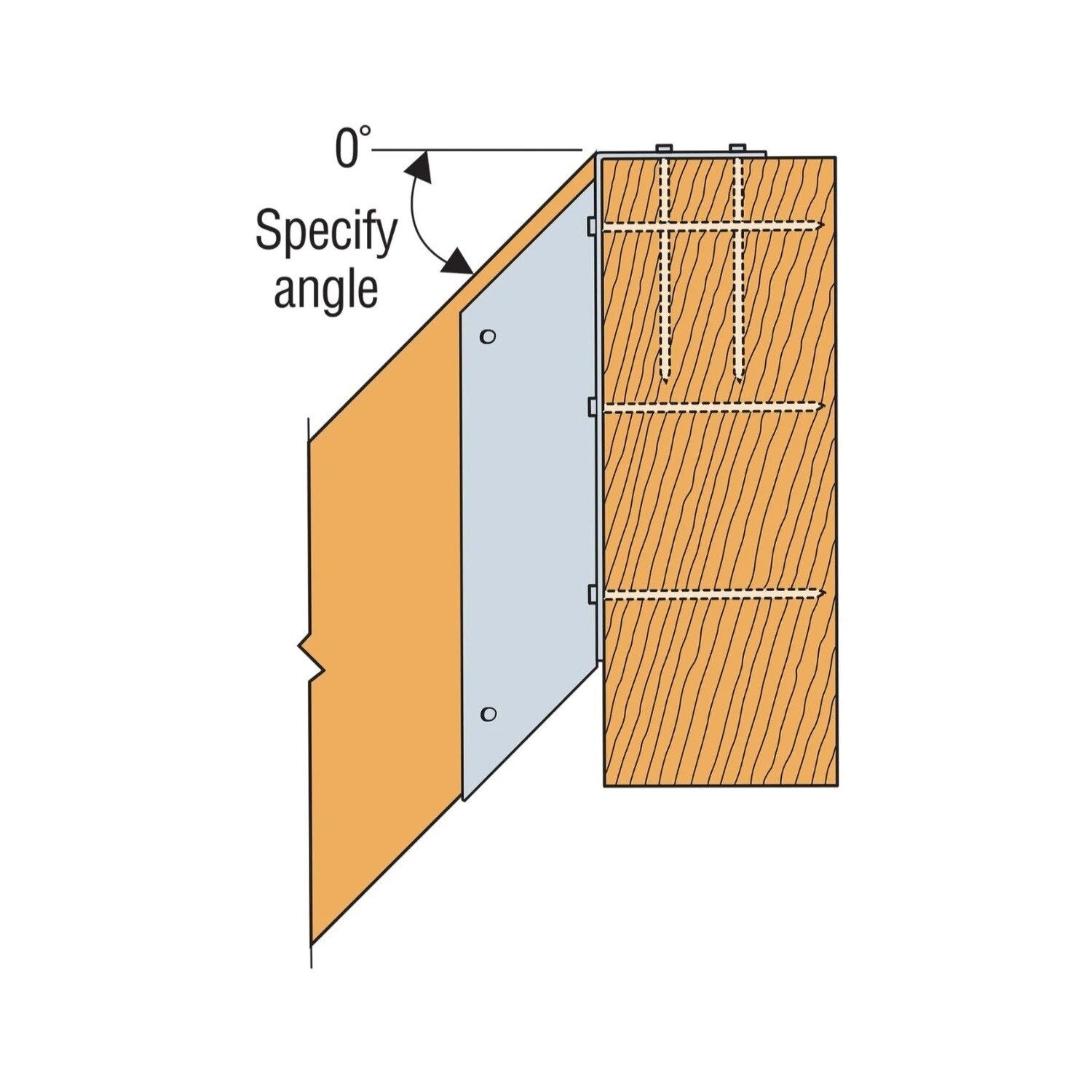

- Sloped and Skewed Installations: The HUTF hanger can be skewed up to 45° or sloped up to 45°. For combined sloped and skewed installations, allowable loads are adjusted to 70% of the table loads.
Simpson HU212TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 11" |
| Joist size | 2" X 12" |
| Thickness | 12 Gauge |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
