Simpson Hangers | SKU:
HU214-2TF

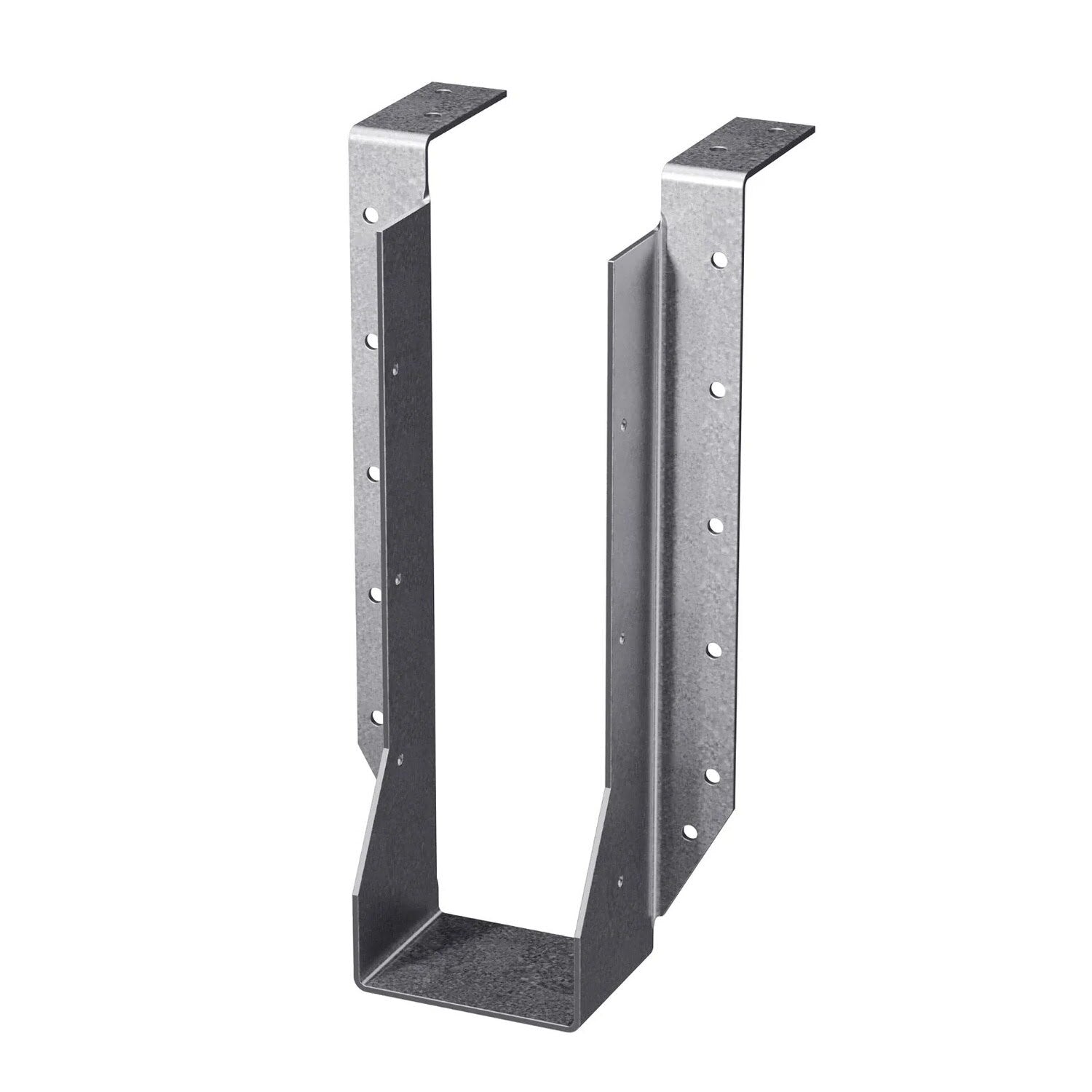

Simpson Strong-Tie HU214-2TF (Double 2" x 14") 12 Gauge Galvanized Heavy Top-Flange Joist Hanger
$58.27
$79.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU214-2TF Description
The HU214-2TF Double 2x14 Top Flange Face Mount Hanger is designed for superior support in wood-to-wood connections, featuring a hybrid design for versatile installation.
Simpson Strong-Tie HU214-2TF Includes
- (1) Double 2x14 Top Flange Face Mount Hanger
Simpson Strong-Tie HU214-2TF Features
- Hybrid Design: Integrates face-mount and top-mount hanger advantages for robust connections.
- Durable Construction: Made from 12-gauge galvanized steel for exceptional strength and corrosion resistance.
- Versatile Installation: Can be skewed or sloped up to 45 Degree to accommodate various framing requirements.
Simpson Strong-Tie HU214-2TF Applications

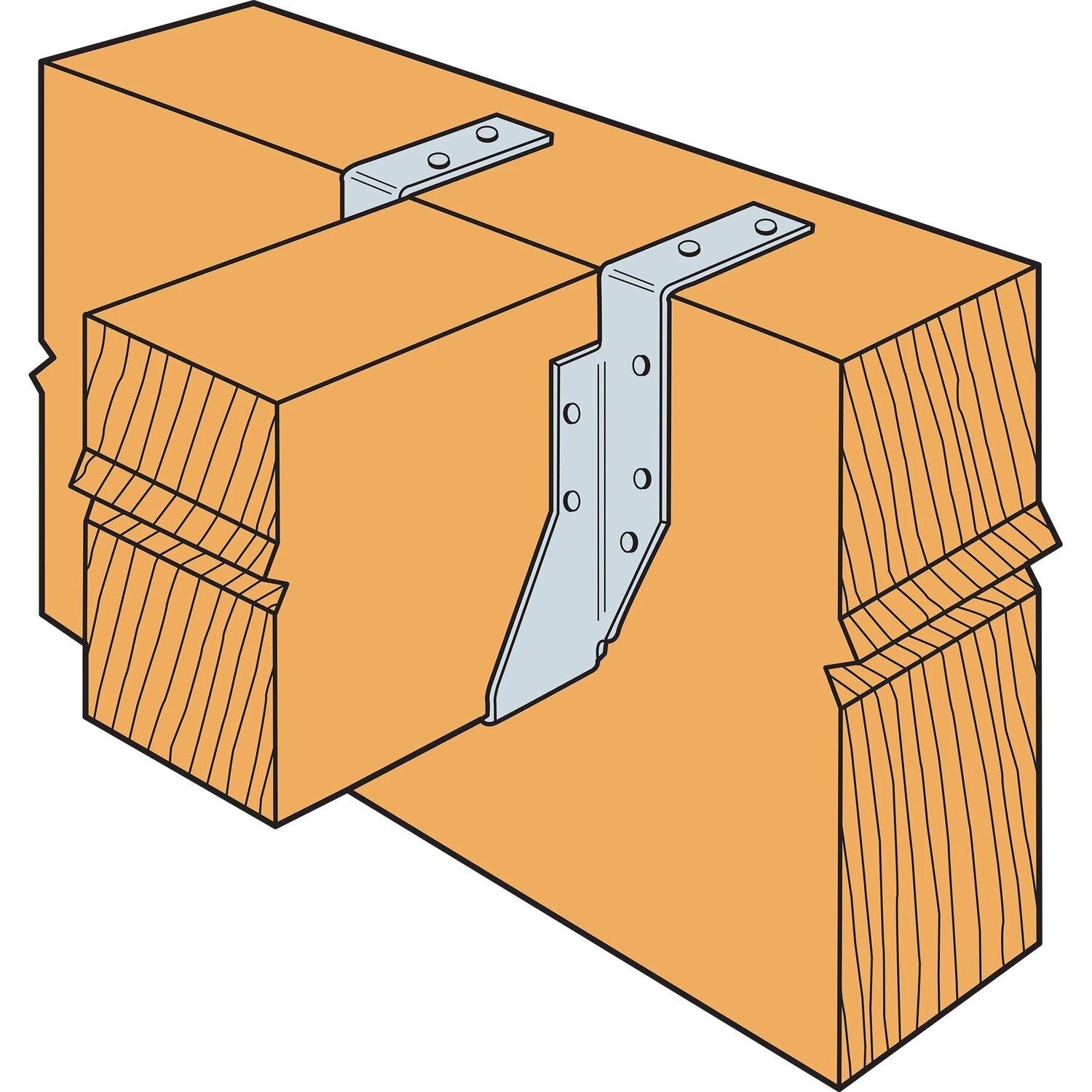

- Residential and Commercial Floor Joists: Securely fastens joists to headers, ensuring stability and reducing movement in flooring systems.
- Roof Rafter Connections: Provides strong and lasting support for sloped rafters, helping maintain the structural integrity of pitched roofs.
- Deck Framing: Reinforces deck joists, creating a solid framework that withstands heavy loads and outdoor conditions.
- General Wood-to-Wood Structural Connections: Ideal for various framing needs, offering a reliable connection for beams, ledgers, and other timber structures.
Simpson Strong-Tie HU214-2TF Installation Overview
- Fasteners: Use all specified fasteners as per the manufacturer's instructions to ensure maximum load capacity.
- Header Size: The minimum header or ledger size compatible with the HUTF hanger is 3 1/2 inches.
- Sloped and Skewed Installations: The HUTF hanger can be skewed up to 45 Degree or sloped up to 45 Degree. For combined sloped and skewed installations, allowable loads are adjusted to 70% of the table loads.
Simpson Strong-Tie HU214-2TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (8) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 13" |
| Joist size | Double 2" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
