Simpson Hangers | SKU:
HU216

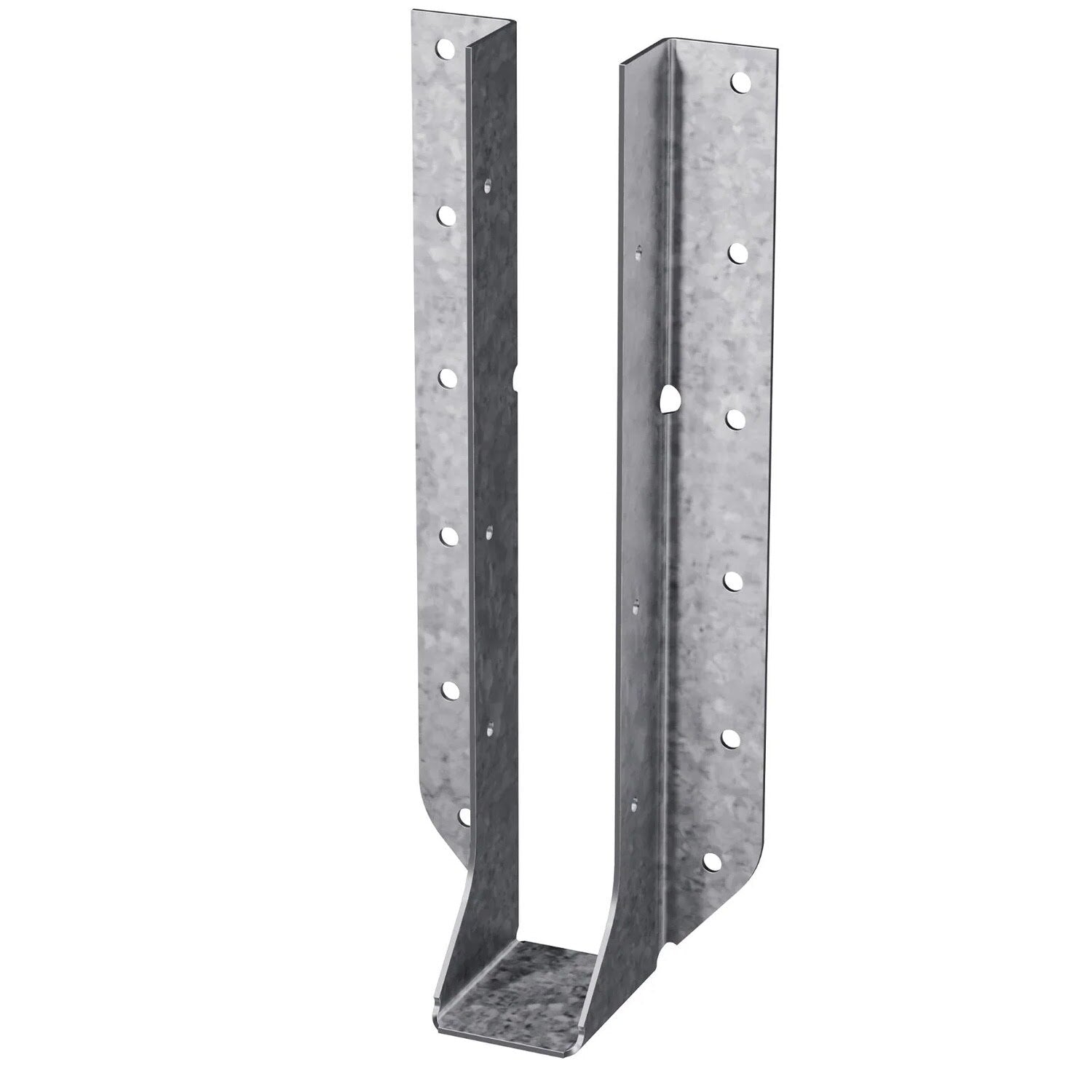

Simpson Strong-Tie HU216 (2" x 16") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger
$28.87
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU216 Description
The Simpson Strong-Tie HU216 is a heavy-duty face-mount joist hanger designed for robust support in various construction applications.
Simpson Strong-Tie HU216 Includes
- (1) Galvanized Face-Mount Joist Hanger for 2x16
Simpson Strong-Tie HU216 Features
- G90 Galvanized Finish for corrosion resistance
- Versatile applications for various joist sizes
- Code compliance for reliable structural performance
Simpson Strong-Tie HU216 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU216 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.
Simpson Strong-Tie HU216 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (8) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 12-15/16" |
| Joist size | 2" X 16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
