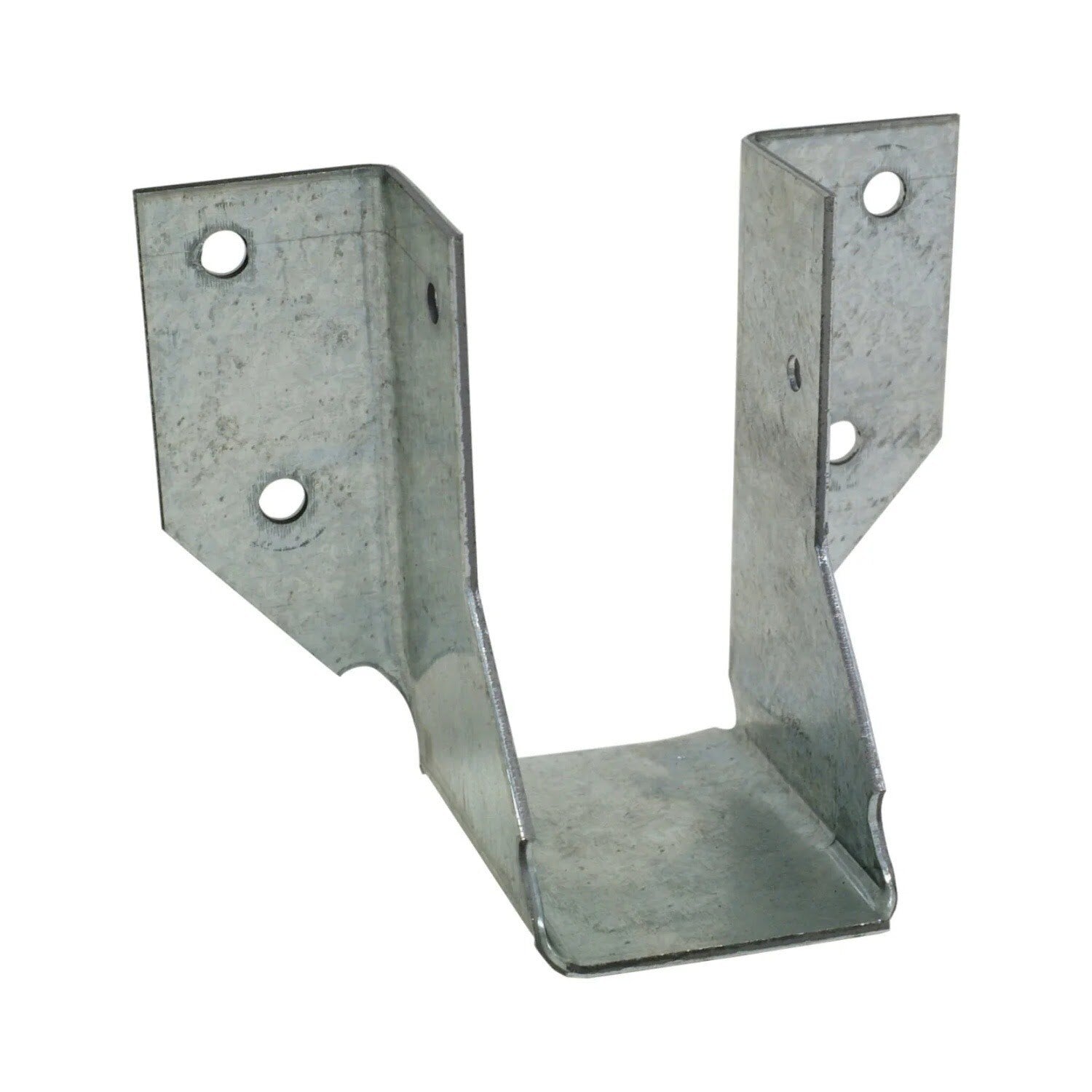

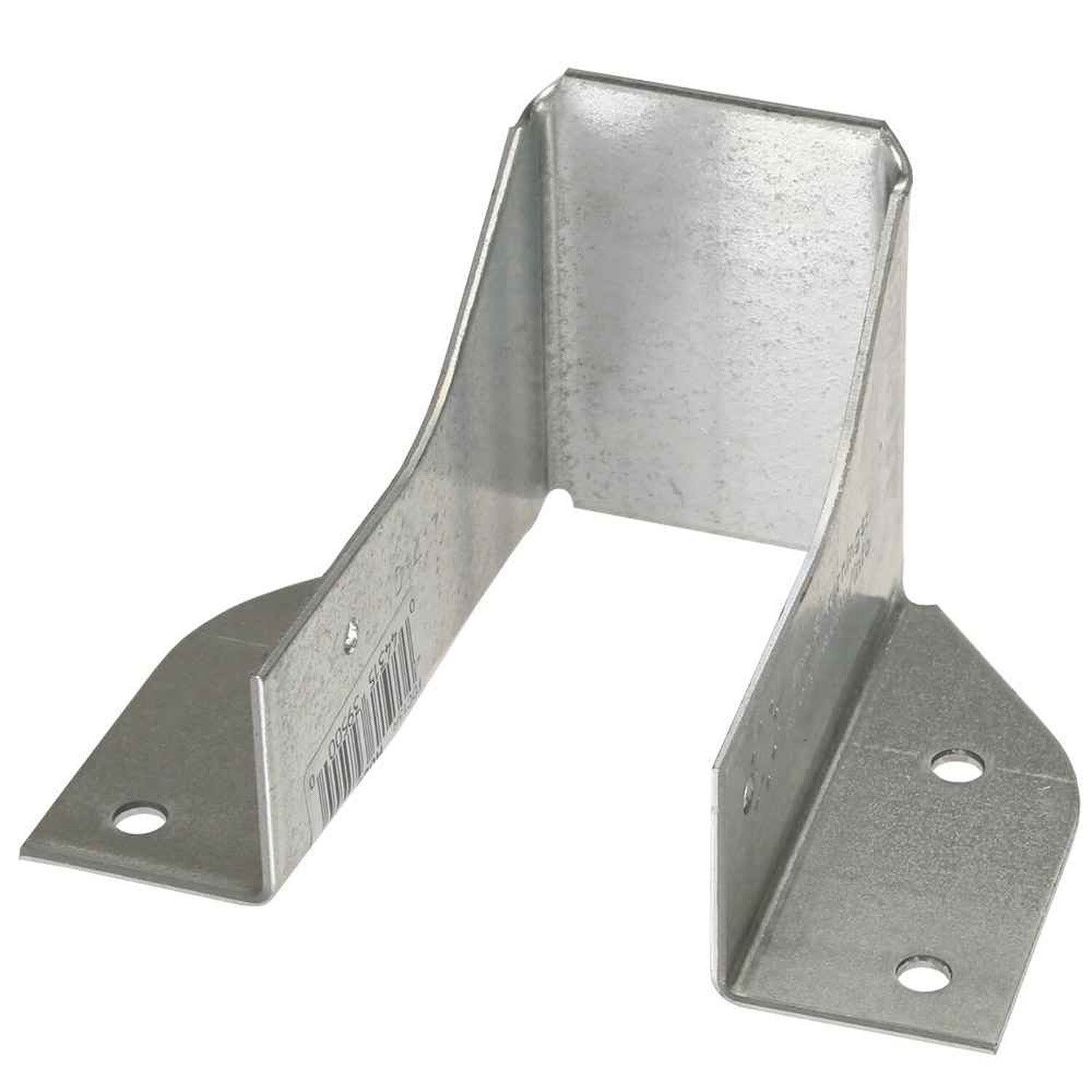

Simpson Strong-Tie HU26 (2" x 6") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger

Name: Simpson Strong-Tie HU26 (2" x 6") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248773
Price: 8.0 USD
Availability: InStock

$8.00 ~~$11.14~~

NOTE: This item is ineligible for free shipping

Description

Simpson HU26 Description

The Simpson HU26 Heavy-Duty Face-Mount Joist Hanger is designed for robust support in construction applications, crafted from 14-gauge steel with a G90 galvanized finish for durability.

Simpson HU26 Includes

(1) Heavy-Duty Face-Mount Joist Hanger for 2x6 Nominal Lumber

Simpson HU26 Features

G90 Galvanized Finish for corrosion resistance
Crafted from 14-gauge steel for durability
Tested, load-rated, and code compliant
Versatile applications for various joist sizes

Simpson HU26 Applications

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in residential and commercial flooring structures.
Roof Framing: Used in truss and rafter connections for enhanced stability.
Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson HU26 Installation Overview

Use all specified fasteners as per guidelines.
Can be installed filling round holes only, or filling round and triangle holes for maximum values.
Joists sloped up to 1/4:12 achieve table loads.
For installations to masonry or concrete, use specified fasteners.
Can be welded to a steel member, adhering to load capacity guidelines.
When nailing into solid sawn carrying member's end grain, adjust allowable load by a factor of 0.67.
Web stiffeners required for I-joist applications.

Simpson HU26 Specifications

Material	Carbon Steel
Finish	G90 Galvanized
Thickness	14 Gauge
Width	1-9/16"
Height	3-1/16"
Joist size	2" X 6"
Fasteners required	Face - (4) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 1-1/2" Nails
For Treated Lumber	No
Quantity	1

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
