Simpson Strong-Tie HU28 (2" x 8") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger

Name: Simpson Strong-Tie HU28 (2" x 8") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248776
Price: 8.19 USD
Availability: InStock

$8.19 ~~$13.32~~

NOTE: This item is ineligible for free shipping

Description

Simpson HU28 Description

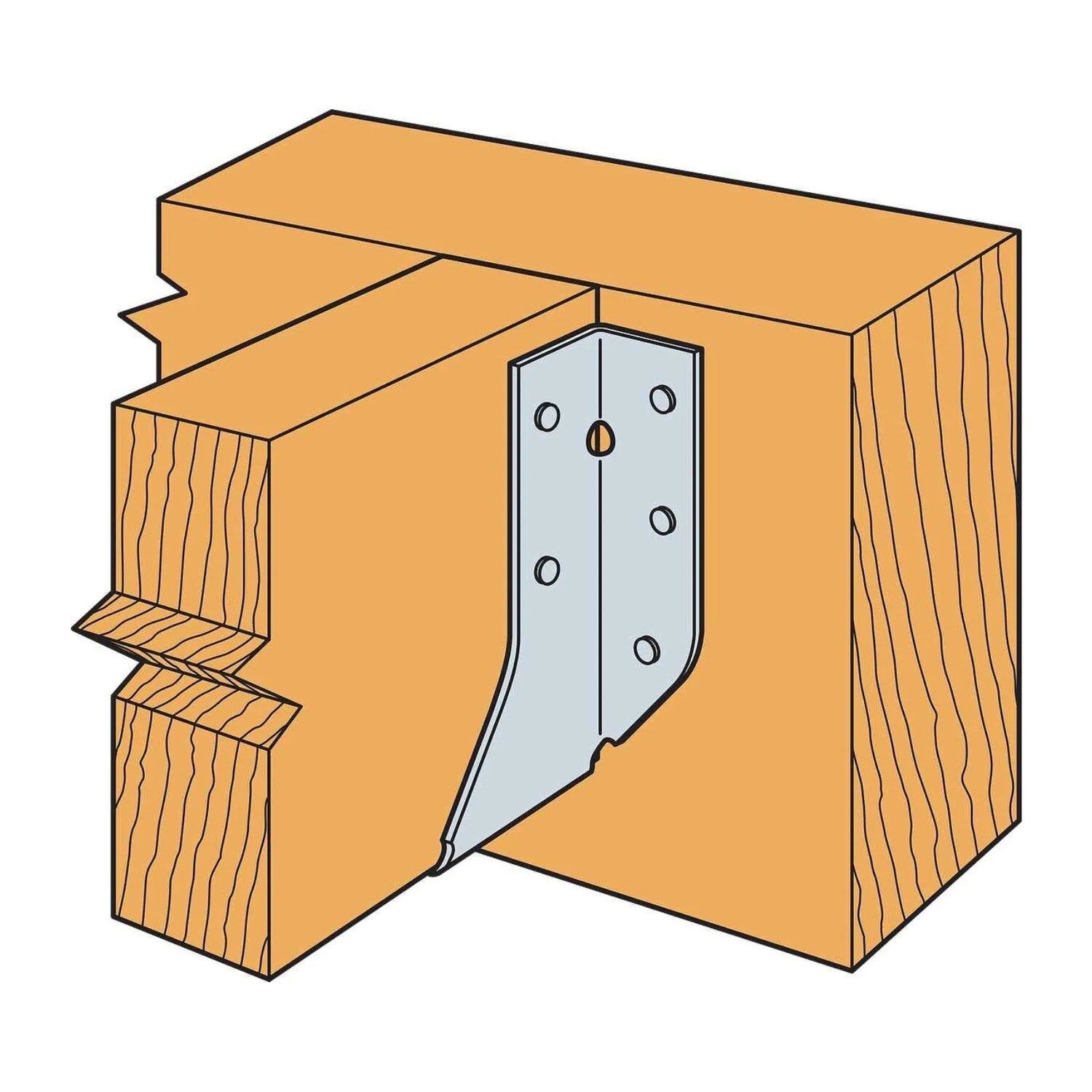

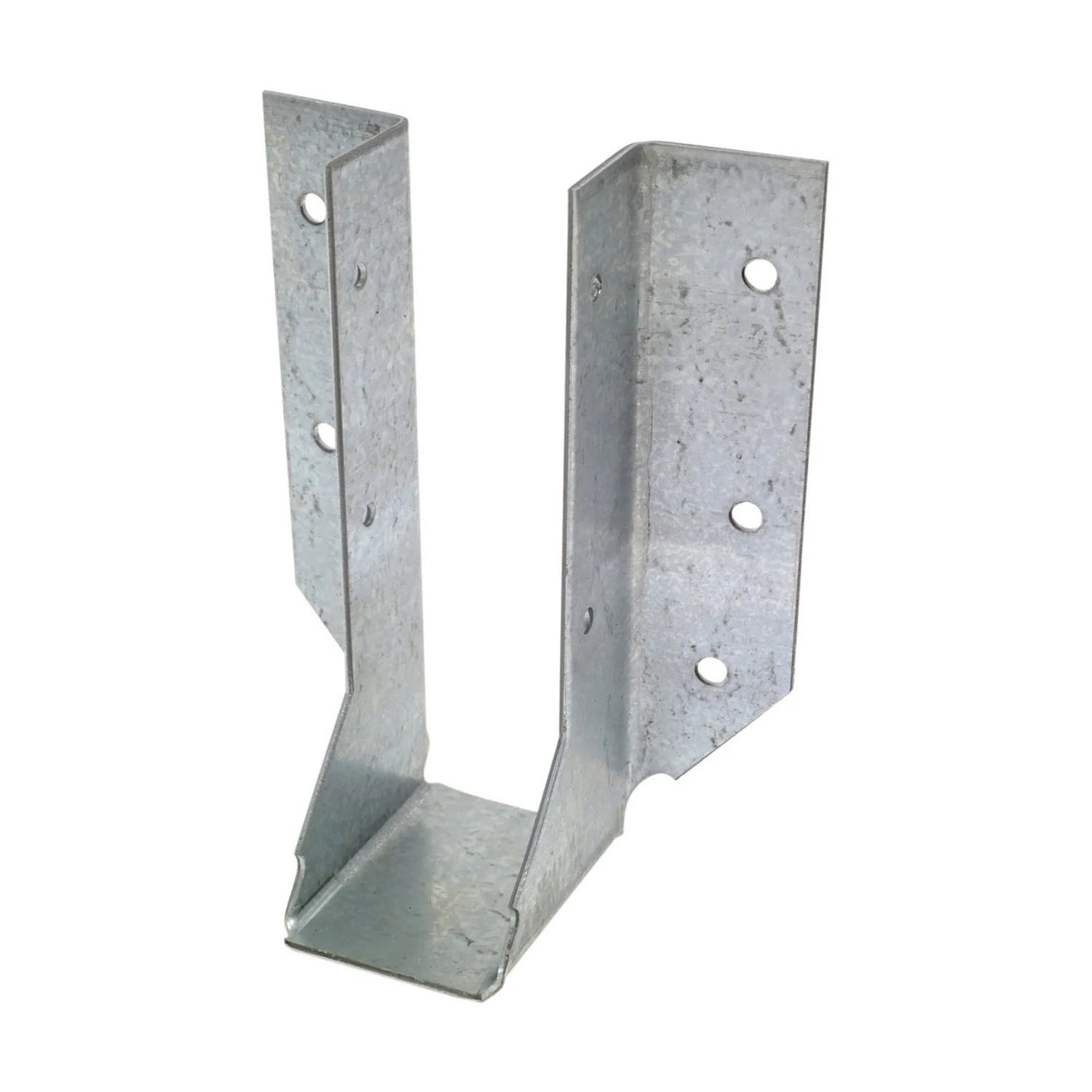

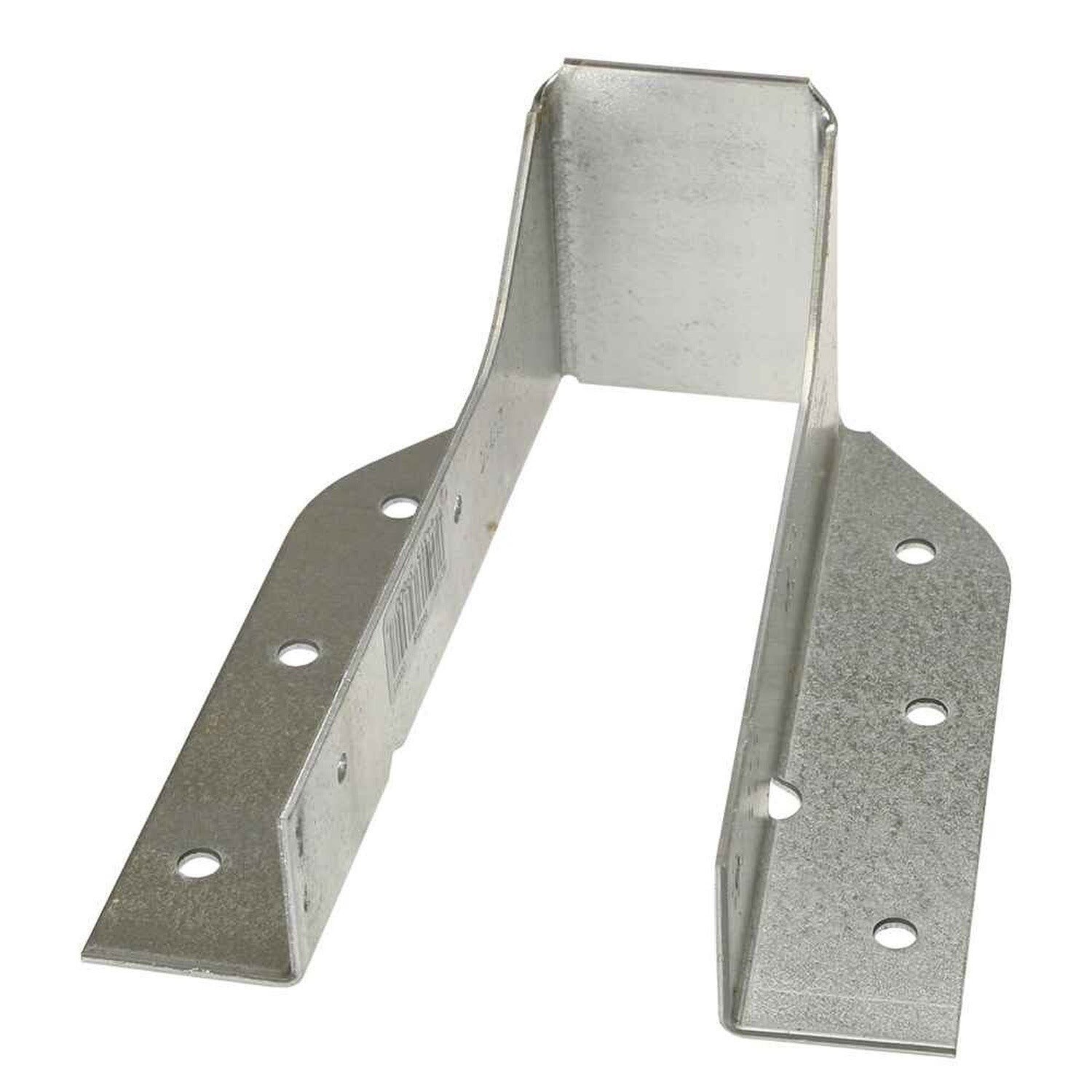

The Simpson HU28 Galvanized Face-Mount Joist Hanger is designed for robust support in wood-to-wood and wood-to-masonry connections, featuring a durable G90 galvanized finish and heavy-duty 14-gauge steel construction.

Simpson HU28 Includes

(1) Galvanized Face-Mount Joist Hanger for 2x8

Simpson HU28 Features

G90 Galvanized Finish for corrosion resistance
Heavy-duty 14-gauge steel construction
Versatile applications for various joist sizes
Code-compliant and load-rated for structural reliability

Simpson HU28 Applications

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in residential and commercial flooring structures.
Roof Framing: Used in truss and rafter connections for enhanced stability.
Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson HU28 Installation Overview

Use hot-dip galvanized nails for maximum corrosion resistance.
Install into masonry and concrete using specified Titen HD screws.

Simpson HU28 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Face - (6) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails
For Treated Lumber	No
Height	5-1/4"
Joist size	2" X 8"
Thickness	14 Gauge
Width	1-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
