Simpson Hangers | SKU:
HU310-2

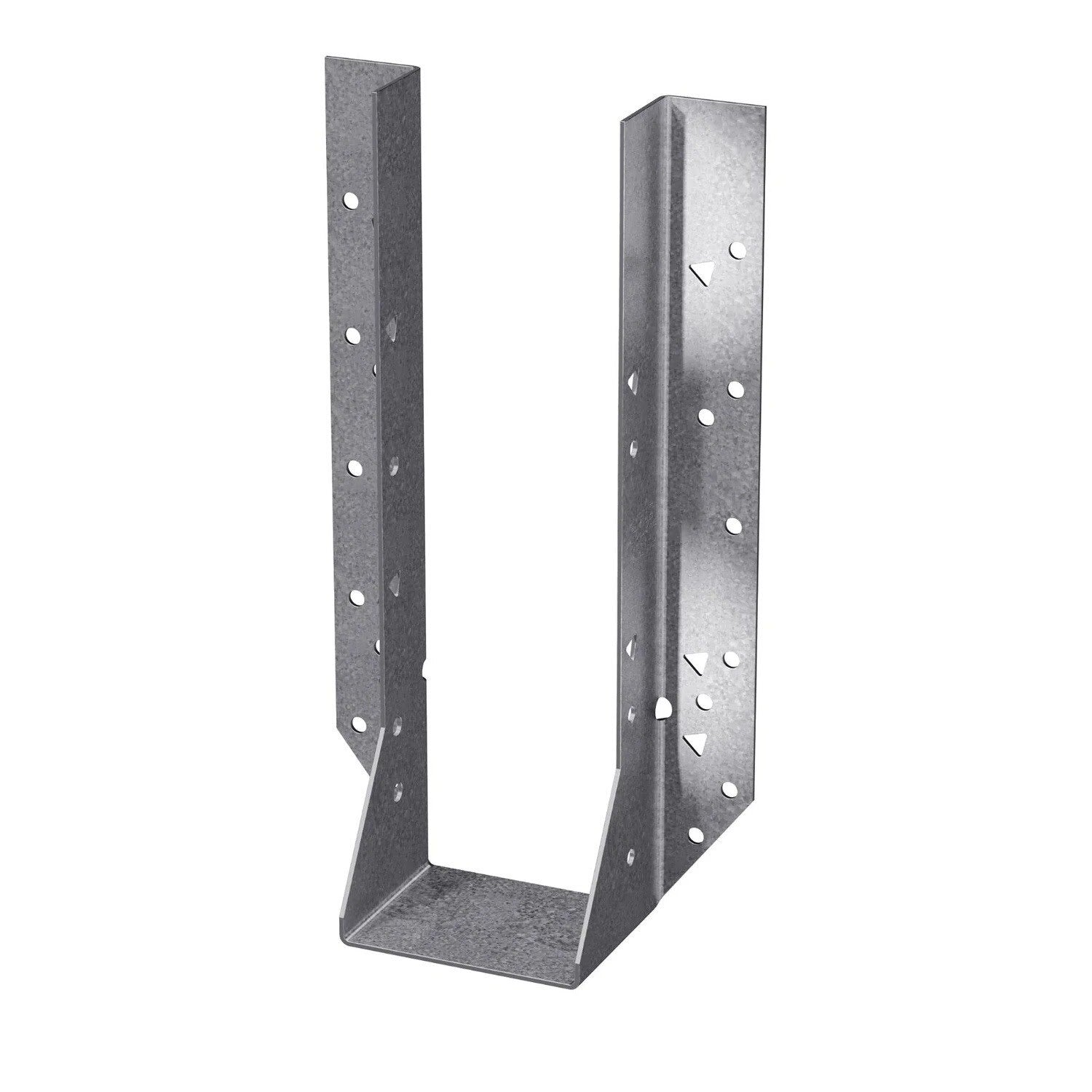

Simpson Strong-Tie HU310-2 Face Mount I-Joist Hanger for Wood Construction
$32.25
$44.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU310-2 Description
The Simpson Strong-Tie HU Heavy Face-Mount Joist Hangers are engineered for robust support in various construction applications, crafted from 14-gauge steel for durability and reliability.
Simpson Strong-Tie HU310-2 Includes
- (1) Face Mount I-Joist Hanger
Simpson Strong-Tie HU310-2 Features
- G90 Galvanized Finish for corrosion resistance
- Versatile applications for various joist sizes
- Code compliance for reliable structural performance
Simpson Strong-Tie HU310-2 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU310-2 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.
Simpson Strong-Tie HU310-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 8-7/8" |
| Joist size | 5" X 9-1/4" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
